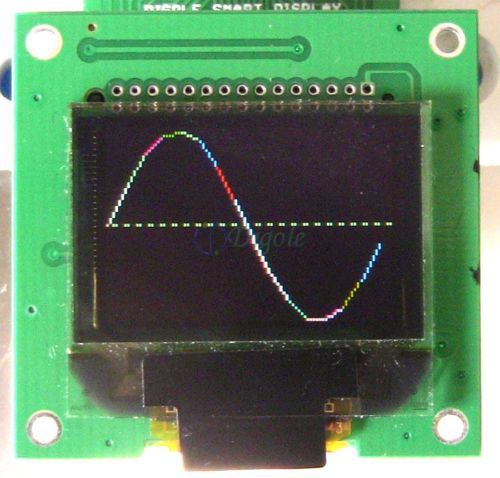

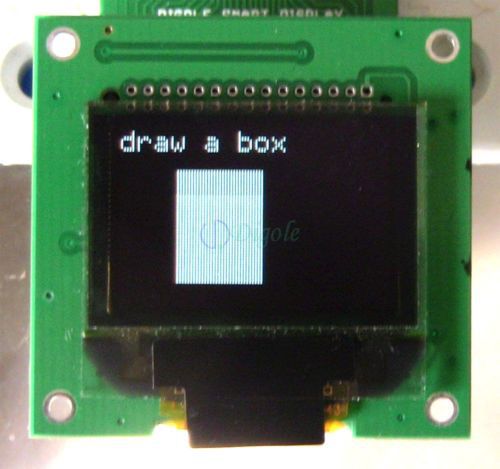

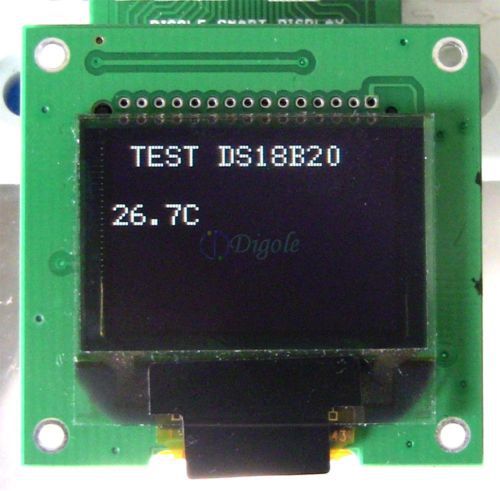

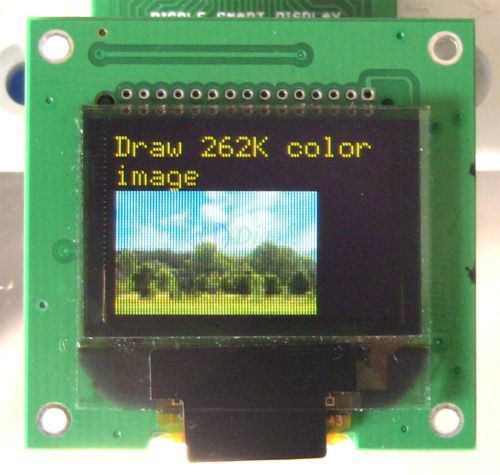

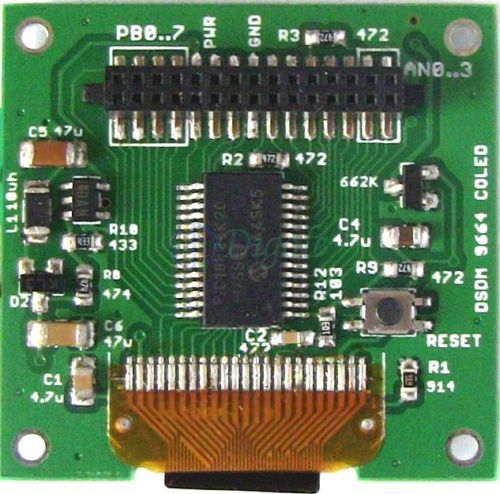

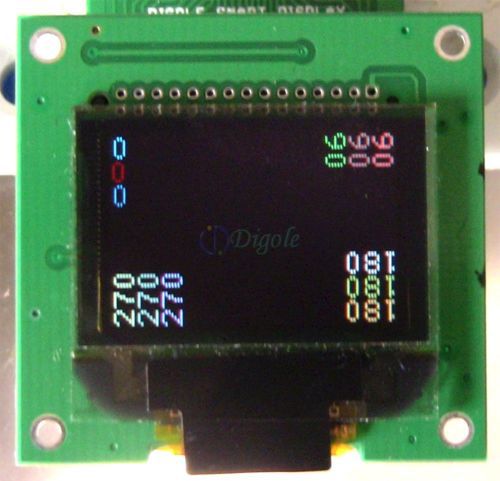

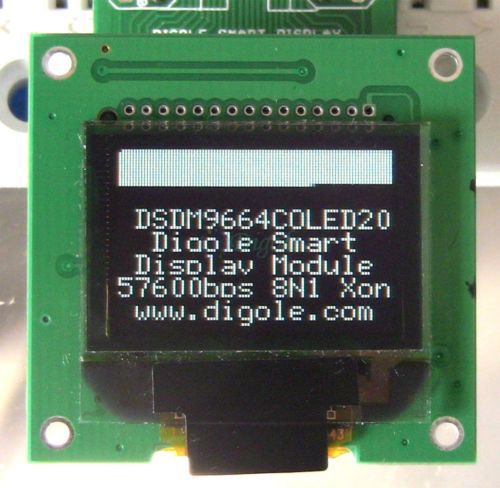

This item is made and shipped from Canada, sorry can't be combined with other items Item Description Shipping Return/Warranty Payment About us FAQ Description If you need large quantity of this item, please contact us in advance This list is for one 0.96" Digole Smart Display 65K color OLED module Buy DSDM DIP adapter Buy USB to UART adater with XON flow control Full Description: If you knew or going to learn the software design for Microchip MCU, this is a great module for you, it include a PIC18F26K20 MCU, graphic display and all required parts. with embedded bootloader and display driver, user can download software to module via serial port-UART(no special programmer needed) and display text and graph on screen pretty easy.You don't need to control the display, just call a function in bootloader, it will display text, line, circle and much more for you. Part number: DSDM-9664COLED20. Wide range of supply voltage, low power consumption (3.0~7.7V, 0.01~40mA). 0.96" 96x64 65K Color OLED display (no backlight needed). 31Khz to 64Mhz frequency changeable at running time by software. Embedded bootloader and screen driver, only a USB to UART adapter needed to download your code to module. Instruction of free C language installation and IDE setting on Windows, MAC OS and Linux. DIP adapter and 30PIN socket available for protyping and producting. We also can redesign the module to fit user production for batch order, please contact us for more detail Full Description: Intruduction of Digole Smart Display Module: Digole Smart Display Module (DSDM) is a new series of display which has an PIC18F26K20 on the board, a firmware which called DSDM API embedded on it, this API can download user program to PIC18F26K20, maintain all functions to deal with the on board display using the identical API on every MSDM. The user program designed for one DSDM will work on other DSDMs without any modification. Although some resources on PIC18F26K20 are dedicated for the display panel are not available for user, but there are still have lot of them available for user: Watchdog, Timers, Interrupt, most of I/O pins, A/D, Capture, Compare, PWM, UART, I2C, SPI, EEPROM, RAM, 48K program Flash. DSDM Videos on Youtube How to install MPLAB IDE and Hi-tech C compiler DSDM Hardware Specifications DSDM Programmer Manual Sample Codes (source code and >hex file) What a DSDM can do? DSDM can be used on all product which you need a display and a micro-controller What's the benifit if I use DSDM? You don't need worry for driving a display. Change the current DSDM on the product to other DSDM without modify your software. Only one UART adapter needed to download your software to all DSDM, no special programmer needed. Rich hardware resources on DSDM: timer, SRAM, flash ROM, E2PROM, watchdog, capture, compare, PWM, UART, I2C, SPI, A/D. Lot of sample code free to download, we and users keep to contribute more code in future. Easy to develop your software, all software developing tools for Microchip are work for you Very low power consumption when in mode of sleep(10uA typically), ideal for battery powered products MCU Frequency can be adjusted by software from 31K to 64MHz Physical Specification 160128 COLED35 9664 COLED20 12864 OLED3W 12864 OLED3B 12864 OLED2W 12864 OLED2B 12864 LCDS7 12864 LCDS6 12864 LCDS4 Active Area (mm) 36x28.7 20x13.3 29.4x14.7 29.4x14.7 22x12 22x12 72x36 61x30.5 42x21 *Prod. Size WxHxT (mm) 53x37x8 33x32x7 35x32x7.5 35x32x7.5 35x32x7.5 35x32x7.5 83x53x9 72x49x10 46x38x9 Resolution (Pixel) 160x128 96x64 128x64 128x64 128x64 128x64 128x64 128x64 128x64 Display Tech. Color OLED Color OLED White OLED Blue OLED White OLED Blue OLED Mono LCD Mono LCD Mono LCD * The thickness is include the header, if you remove the header on final product, the thickness is 2.5mm less Electrical Specification 160128 COLED35 9664 COLED20 12864 OLED3W 12864 OLED3B 12864 OLED2W 12864 OLED2B 12864 LCDS7 12864 LCDS6 12864 LCDS4 SupplyVoltage (V) Mini. 3.0 3.0 2.5 2.5 2.5 2.5 3.0 3.0 3.0 Max. 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 Current @5.0V MCU @64MHz (mA) Mini. <4 <4 <3 <3 <3 <3 <3 <3 <3 Max. 110 40 20 20 20 20 8 **25 **25 *Sleep 0.1 0.01 <0.01 <0.01 <0.01 <0.01 <0.01 <0.01 <0.01 *Sleep: when turn MCU to sleep, shut down the backlight, shut down the DC/DC converter, turn off the display ** Depends on the current consumption of backlight Hardware future **Module Color Depth Program Memory (bytes) Dada Memory I/O 10-bit A/D (ch) CCP/ ECCP (PWM) MSSP UART Comp. Timers 8/16-bit SRAM (bytes) E2PROM (bytes) SPI Master I2C 160128 COLED35 262K 48K 3584 1024 12 5 1/1 Y Y 1 2 1/3 9664 COLED20 65K 48K 3584 1024 11 5 0/1 Y Y 1 1 1/3 12864 OLED3W B/W 48K 2560/ *3584 1024 12 5 1/1 Y Y 1 2 1/3 12864 OLED3B B/W 48K 2560/ *3584 1024 12 5 1/1 Y Y 1 2 1/3 12864 OLED2W B/W 48K 2560/ *3584 1024 12 5 1/1 Y Y 1 2 1/3 12864 OLED2B B/W 48K 2560/ *3584 1024 12 5 1/1 Y Y 1 2 1/3 12864 LCDS7 B/W 48K 2560 1024 20 10 1/1 Y Y 1 2 1/3 12864 LCDS6 B/W 48K 2560 1024 19 10 0/1 Y Y 1 1 1/3 12864 LCDS4 B/W 48K 2560 1024 19 10 0/1 Y Y 1 1 1/3 * On these modules, user can choose to use screen buffer in SRAM or not, the buffer size is 1024 bytes, by using the buffer, user can draw the screen faster than none buffer. ** Module definition: numbers=resolution on horizontal and vertical; the following letters= Display Technology, COLED= Color OLED, OLED=Monochrome OLED, LCD=LCD, LCDS=Serial LCD; the last letter is the emitting color on monochrome OLED, W=white, B=Blue. e.g.:12864OLED3B means 128x64 pixels blue color Monochrome OLED I/O resources map Legend: Blue: All function available for user, the module didn’t use it internal Red: This port/pin was reserved for module, user can’t operate this pin, other wise, the module Black: Restrict ports/pin, the user can still use the port, but should be deal with it carefully. I/O Port Multiplex Function on Chip 160128COLED35 9664COLED20 12864OLED3X 12864OLED2X 128x64 Universal (ST7920/KS0108) 12864LCDS7 12864LCDS6 12864LCDS4 PA.0 to 3 Analog 0 to 3 √ √ √ √ √ PA.4 CS CS CS CS CS PA.5 Analog:4, SPI: SS √ √ √ √ √ PA.6 WR WR WR WR SDI PA.7 D/C D/C D/C D/C D/C PB.0 to 7 DATA I/O DATA I/O DATA I/O DATA I/O √ PC.0 RD RD RD RD SCLK PC.1 CCP2 √ Back Light √ Back Light Back Light PC.2 CCP1 √ √ √ √ √ PC.3 I2C/SPI:CLK √ √ √ √ √ PC.4 I2C:SDA,SPI:SDI √ √ √ √ √ PC.5 SPI:SDO √ √ √ √ √ PC.6 UART:TX √ √ √ √ √ PC.7 UART:RX √ √ √ √ √ PE.3 RESET X X X X X Free RAM (Bank) 0-13 0-13 0-9 or *0-13 0-9 or *0-13 0-9 CS: this is the chip selection for display panel, user can use and operation this signal, except want to operate with the panel directly. WR:Write signal on display panel; RD: Read signal on display panel; D/C: Data/Command signal on display panel; DATA I/O: Data write to and read from display panel; SCLK: ST7565 LCD panel’s Clock signal; SDI: ST7565 LCD panel’s Data in signal; * Depends on “digole_monobuffer”; Pinout on fan out header There is a 30pin 1.27mm pitch header on every module which fan out of all pins on the PIC18F26K20, user can use the unused pins, the pin out on all headers are identically same, make the DSDM exchangeable. Black : Basic I/O function on power up Blue: Multiplexed function on MCU Red: Defined function used on display screen PB.0 to 7 may also used by module on most model, please check the I/O resources map Shipping May need 1 to 6 weeks, see below for detail We will ship item out in 1 working days by Canada Post. We ship to your Paypal address only!!, please verify your Paypal address before sending payment, Estimate Delivery time, except public holiday in Canada and your country (If you can't wait the described time, please don't buy it from us): Ship to Estimated weeks Ship to Estimated weeks North America USA 1 to 3 Asia HK, Japan 2 to 4 Canada 1 to 2 Others 2 to 5 Europe Germany 2 to 3 Australia 2 to 4 UK 2 to 3 Other Country in the World 2 to 6 Others 2 to 4 Return to top Return/Warranty Policy Return with no reason: Item must be sent out in original condition within 7 days since item received, Buyer can return item to our Service Department in Canada by buyer's convenience, Buyer pay the return shipment fee, Same way money refund as you paid. Return/exchange if defective or wrong item buyer received: Buyer must contact with us using ebay message system within 4 days since item received, WE pay the return shipment fee, Replacement or money refund are available upon buyer request. Please contact us using ebay message system in advance before leaving feedback if there were any problem with your items. E-care service: Click here to report problems/return items and more Return to top Payment Payment is expected within 8 days, Ebay Unpaid Item Assistant will open unpaid item case automatically if no payment received in 8 days. We accept Paypal only Return to top About us We try our best to help buyers to pick out the QUALIFIED products from dazzling market with reasonable price, Our goal is to be one of the best seller on ebay, buyer's satisfaction is our #1 concern Return to top FAQ Q: What can you do if my address is not correct? A: Buyer should take all responsibility for offering incorrect information. Return to top
