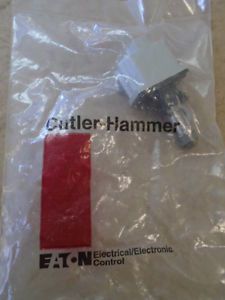

1 EA NOS CUTLER HAMMER TOGGLE SWITCH P/N: MS24659-31K - SEALED OEM PACKAGING, US $24 – Picture 0

1 EA NOS CUTLER HAMMER TOGGLE SWITCH P/N: MS24659-31K - SEALED OEM PACKAGING, US $24 – Picture 1

1 Ea Nos Cutler Hammer Toggle Switch P/n: Ms24659-31k - Sealed Oem Packaging

US $24

Bloomingdale, Illinois, United States
Nov 11th

Open on mobile:
QR code

THIS IS FOR 1 EACH CUTLER-HAMMER SUBMERSIBLE TOGGLE SWITCH USED ON VARIOUS AIRCRAFT SUCH AS BOEING 747. OTHER APPLICATIONS POSSIBLE SUCH AS: INDUSTRIAL, ROBOTICS, EXPERIMENTAL, PROJECTS, ETC. NEW, UNUSED OLD STOCK - SEALED OEM PACKAGING TYPE : 8504K41 P/N: MS24659-31K NSN: 5930-00-828-6314 MFG: CUTLER HAMMER / EATON SOLD AS -IS. SHIPPING COST ADJUSTED FOR MULTIPLE QUANTITY PURCHASE. SPECS: ACTUATOR DIAMETER 0.420 INCHES NOMINAL ACTUATOR HEIGHT 1.140 INCHES NOMINAL ACTUATOR POSITION-ACTION RELATIONSHIP UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED ACTUATOR POSITION-LOCKING RELATIONSHIP UP POSITION LOCKED IN AND DOWN POSITION NO LOCKING ACTION AND CENTER POSITION LOCKED IN ACTUATOR STYLE ROUND BODY HEIGHT 1.100 INCHES NOMINAL BODY LENGTH 1.340 INCHES MAXIMUM BODY STYLE BUSHING MOUNT BODY WIDTH 0.910 INCHES MAXIMUM BUSHING LENGTH 0.470 INCHES NOMINAL CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 18.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 11.000 AMPERES RESISTIVE AC AND 8.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION SUBMERSIBLE MAXIMUM VOLTAGE RATING IN VOLTS 115.0 AC AND 28.0 DC MOUNTING METHOD THREADED BUSHING MOUNTING SURFACE TO TERMINAL END DISTANCE 1.370 INCHES MAXIMUM NOMINAL THREAD SIZE 0.469 INCHES NONPILE-UP CONTACT ARRANGEMENT 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT INCLOSURE TYPE FULLY INCLOSED PRECIOUS MATERIAL AND LOCATION TERMINAL SURFACES SILVER OVERALL HEIGHT 2.980 INCHES NOMINAL OVERALL LENGTH 1.340 INCHES MAXIMUM OVERALL WIDTH 0.910 INCHES MAXIMUM TEST DATA DOCUMENT 81349-MIL-S-3950 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). THREAD SERIES DESIGNATOR UNS THREAD QUANTITY PER INCH 32 SPECIFICATION/STANDARD DATA 96906-MS24659 GOVERNMENT STANDARD TERMINAL TYPE AND QUANTITY 6 SCREW *L01Y60* MASTER REQUIREMENT CODE (MRC) - A code assigned to each different approved Federal Item Identification Guide (FIIG) requirement. The MRC serves to identify the item characteristic defined by the requirement.
