1 Icstation Icsa001a 5a Constant Current Constant Voltage Step-down Module Cccv

US $26

  • ???, ???, China
  • Jan 29th
Open on mobile:
QR code

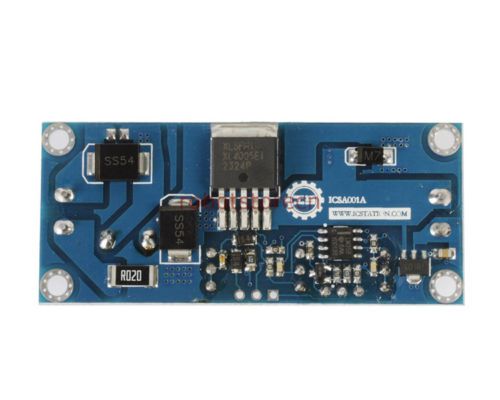

1 ICStation ICSA001A 5A Constant Current Constant Voltage Step-down Module CCCV       Parameter: Module properties:the non-isolation step-down module Input voltage range:4.5-30V Output current range:0.1-5A Output voltage range:0.8-30V(continuously adjustable) Output Turn light range:0.1-5A Working temperature:-40~+85°C Working Frequence:300KHz PWM control Frequencerange:100-300Hz Transition range:The highest 95%(Efficiency and the input and output voltage,current and differential pressure) Short-circuit protection:Have(Current limitation for constant current value of the set) Overtemperature protection:Have(Overtemperature after automatically shut off the output) Input reverse connect protection:Have(Power drive ability is greater than 2A,reverse connection protection is invalid) Output the counter-attack filling and protection:Have Charging indication :When red light when charging,full of green light.Turn light detection way for current. way to install:Four 3mm screw Module Size:length: 64.5mm Width:28.1mm High20mm Interfaceexplanation: IN+ The Input the anode IN- The input cathode OUT+ The Output the anode - The Output the anode Key: Switch module,to ground short circuit output end PWM: Pulse width of input and output voltage control GND: Module ground wireleads                                                   For more quantity,please contact us.     1) We accept PayPal payment ONLY.

Directions
