10-36v Dc Motor Speed Controller Reversible Pwm Control Forward / Reverse Switch

US $580

Hong Kong, Hong Kong
Jan 29th

Open on mobile:
QR code

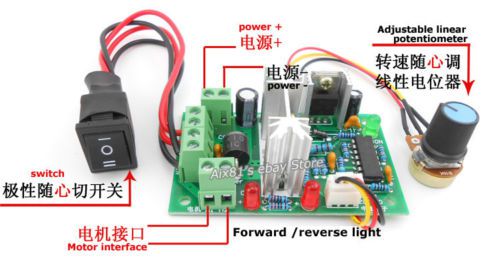

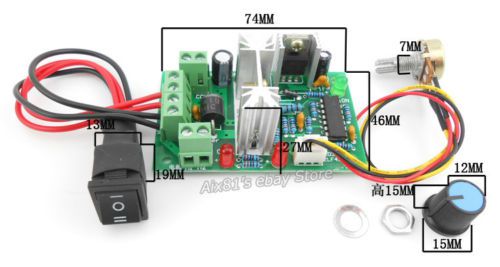

Description Specification: Brand new, Unused, High quality Material: Plastic, metal High efficiency, high torque, generates low heat Control the speed of a DC motor with this controller With reverse polarity protection, high current protection Input: 10V-36V DC Output: Max 150W(When more than 24V) PWM range: 10%-95% Frequency: 500Hz Current: Max 5A ,overload short circuit protection current 8A, short circuit time is less than 30 seconds. Size:as picture shows. Mounting hole center distance: 63.5 mm * 36.5 mm Positioning hole diameter: 3.5 mm Product comes with an external speed control knob. Reversible control (positive stop anti-) products are equipped with reversing switch. The governor used the cooling plate area is more than twice as similar products on the market, to meet the needs of 60W-150W motor. The governor using PWM control technology, with high conversion efficiency, wide speed range, stable performance characteristics. Governor of all imported STMicroelectronics original chip, the factory and the voltage, current, function and many other detection circuit is stable and reliable. Operating Instructions: 1. Connect to the power, ensure the Reversing Switch is in the centre position and connected with a DC power supply (the DC supply voltage range is more than10V and less than 36V). Warning: do not reverse the positive and negative terminals of DC power source, otherwise regulator may be damaged. 2. Connect it to the motor, the DC motor leads can be connected either way, if not correct then leads can be changed to suit rotation, 3. Use the switch to change direction of the motor and the Potentiometer to control the speed, When the switch is located in the centre position, the motor stops rotating. Package Included: 1 X 10V-36V 5A Reversible DC Motor Speed Control

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	10~36V DC
Type	PWM Motor Speed Controller
