10 Matsushita Avm3 Micro Switches .1a 30v Dc Avm3705649 Normally Open / Closed

US $11.99

  • Springfield, Tennessee, United States
  • Jan 29th
Open on mobile:
QR code

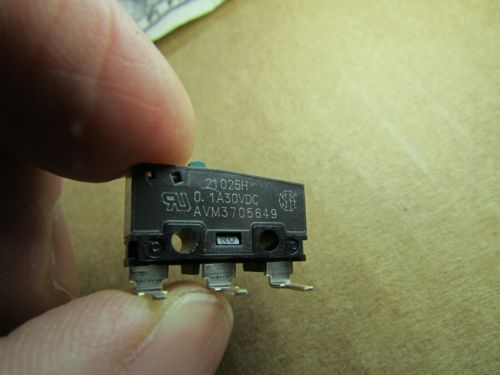

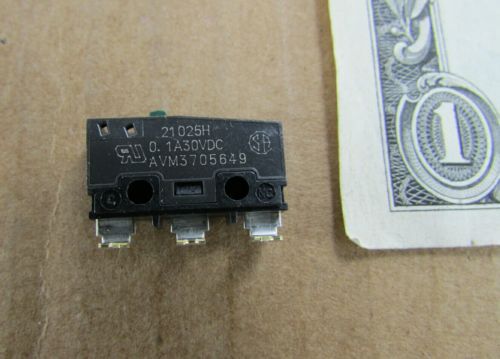

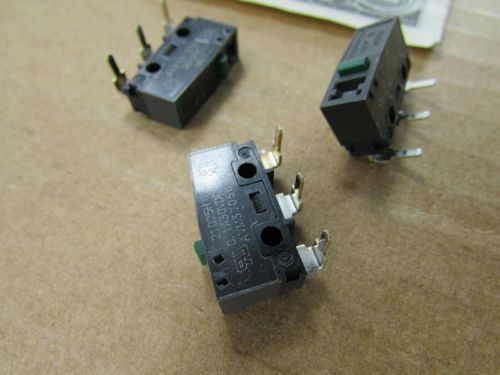

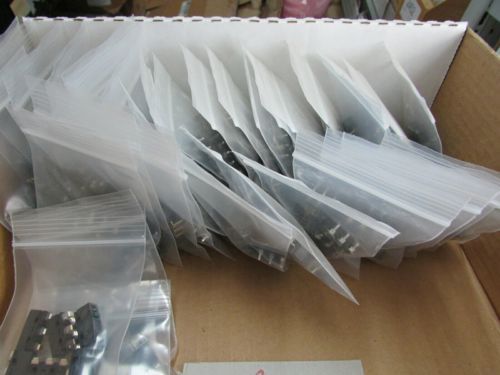

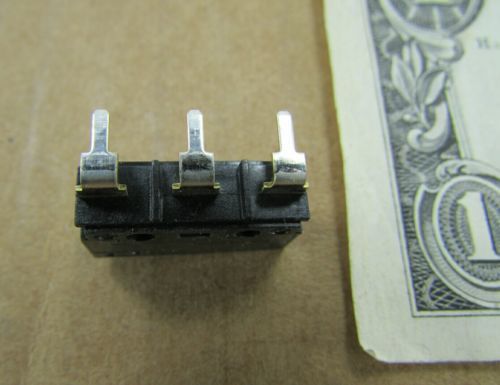

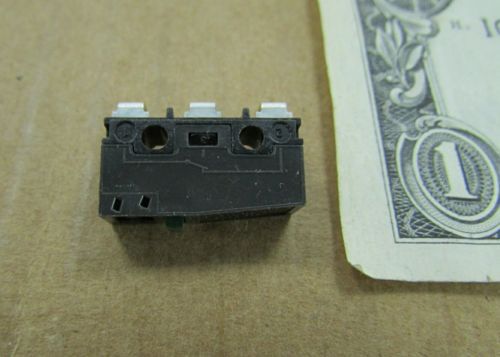

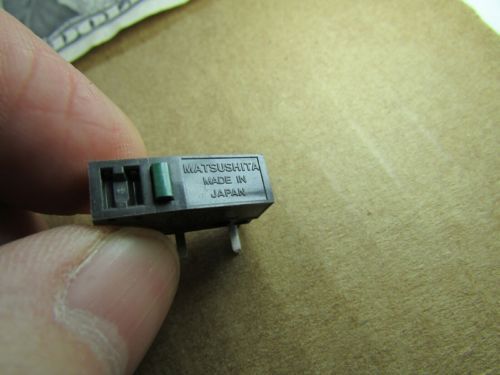

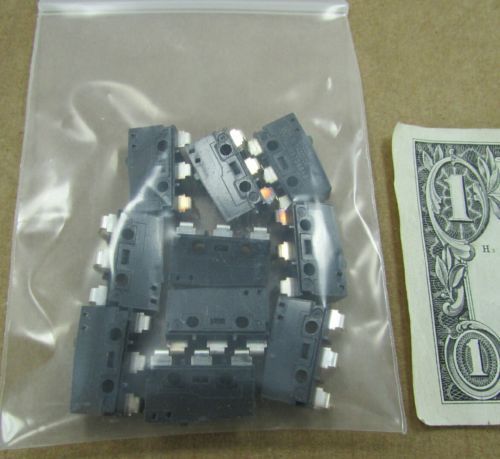

2908XG2K.05 New Nais / Matsushita AVM3 Series LONG LIFE Subminiature Micro Switches, Microswitches, .1A @ 30V DC or 125VAC, Normally Open or Normally Closed Operation, Part Number AVM3705649.  Each bid quantity is for a Lot of Ten (10 Switches.  You may bid / buy any number of lots, up to the total quantity available above. These were purchased at an industrial liquidation earlier this year, and they were brand new in the original factory trays.  We repackaged them in heavy Ziplok bags. According to the calipers: Overall length:  .776" / 19.71 mm Width (including terminals and button):  .551" / 14.01 mm Thickness (excluding solder terminals):  .252" / 6.41 mm Pin spacing (pitch):  .295" / 7.50 mm The part number (AVM3705649) breaks down as follows: AV -- Subminiature switch series M3 -- FS type Long life 7 -- Left angle terminal 0 -- Pin plunger actuator 5 -- Operating force 1.47 N (Long life type) 64 -- CuNi alloy + Au-clad double layer contact type 9 -- UL/C-UL According to the manufacturer: Family Snap Action, Limit Switches Series AVM3 Circuit SPDT Switch Function On-Mom Current Rating 100mA (AC/DC) Voltage Rating – AC 125V Voltage Rating – DC 30V Actuator Type Button Mounting Type Through Hole, Right Angle Termination Style PC Pin Operating Force, Torque 150gf Release Force 20gf Pretravel 0.024" (0.6mm) Differential Travel 0.004" (0.1mm) Overtravel 0.015" (0.4mm) Operating Position 0.330" (8.4mm) Mechanical Life 10,000,000 Cycles Electrical Life 200,000 Cycles Operating Temperature -25°C ~ 85°C
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Matsushita
Current Rating 100mA (AC/DC)
Model AVM3
Contacts SPDT
MPN AVM3705649
Voltage Rating 125VAC / 30VDC
Quantity 10
Mechanical Life 10,000,000 Cycles
Actuator style Button
Color Black
Operation Normally Open & Normally Closed
Approvals UL CSA
Mounting Through Hole Solder, Right Angle
