1000 Pcs Plcc-6 5050 Smd 3-chips White Ultra Bright Led

US $22.99

  • ???, ???, China
  • Mar 5th
Open on mobile:
QR code

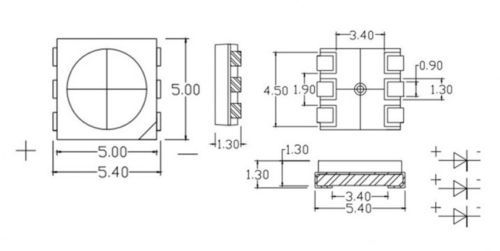

  welcome to our store 5050 SMD White LED 1000pcs Product Description     Product Number ADC-LE11118 Product Name 5050 SMD White LED 1000pcs Size 5.0(L) x 5.0(W)x 1.5(H) ±0.1mm Item Net Weight 200G Brief Introduction: This package consists of 1000pcs 5050 SMD White LEDs. Features: Electrical/Optical Characteristics at TA=25°C Symbol Parameter Min. Typ. Max. Units Test Conditions VF Forward Voltage 2.9 - 3.6 V IF=60mA IR Reverse Current - - 5 uA VR=5V Luminous Intensity Iv 4000 - 5000 mcd IF=60mA Color Temperature CCT 6000   8000 K IF=60mA Viewing Angle 2?1/2 - 120 5 Degree IF=60mA   Absolute Maximum Ratings at TA=25°C Parameter Value Units Power Dissipation 200 mW DC Forward Current 60 mA Peak Forward Current 100 mA Reverse Voltage 5 V Operating/Storage Temperature -30 To +85 °C Soldering Temperature 260°C(for 5 seconds) - Electrostatic Discharge 1200 V   Application: Automotive:backlight in dashboard and switch Optical indicator Indicator and backlighting in telephone and fax Flat backlight for LCD, switch and Symbol Light pipe application General use Package included: 5050 SMD White LED x 1000 Shipping and Handling We ship worldwide by international air mail from Hongkong Airway Postal and China Airway postal. Email us before payment to arrange UPS Speed post for 2 to 7 days delivery. We will offer a free Registered Number for the flat rate shipping service once the total value of your order is over $25. Otherwise, you have to pay extra $2 as the registered cost if you want to apply register service. We reserve the rights not to ship to any zero/negative feedback rating buyers. Items will be shipped out in most cases within 48 hours of payment being received. (Excluding Weekends and Public Holidays) Due to security reason, we reserve the right not to send items to unconfirmed Paypal address. Delivery Time Country Approx. Delivery time United States 7-21 working days Canada / United Kingdom / Australia 15-30 working days Italy / France / Spain / Germany/ Eastern Europe/Brazil / South America 30-40 working days
