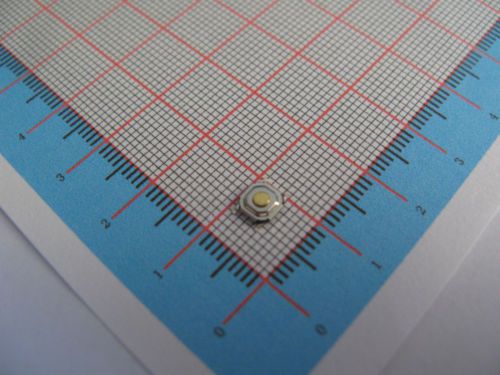

1000pcs/lot, 4x4x1.5mm Waterproof Tactile Switch,square Knobs,tact Switch,

US $35.98

  • Shenzhen, China
  • Jan 29th
  1000pcs/lot 4x4x1.5mm Waterproof Tact Switch 4P   SMD Model:#1347 4x4x1.5mm Waterproof tact siwth, Square Knob ,Tactile switch,momentary push switch.  Specification  Temperature:    -30~+70 C Rated Load:        DC 12V 0.5A Insulation Resistance:  >=100M? Contact Resistance:     =<0.03? Withstand Voltage:       AC 250V(50Hz)/min Actuating Force:     150~300G  Life:                  100000   Function: Momentary action Contact Arrangement: SPST, N.O. Terminals: PC pins    Materials BASE: 6/6 nylon or glass filled polyester (PBT). ACTUATOR: 6/6 nylon. COVER PLATE: PTS645S: Polyester or stainless steel DOME CONTACTS: Phosphor bronze, silver clad. STATIONARY CONTACTS: Brass, silver plated. TERMINALS: Brass, silver plated. Insert molded.   FEATURES Snap-in type,which can be directly mounted on PC board Some of output terminals can be used as jumper leads, thus making circuit design easy. Standard knobs are available.   APPLICATIONS Operating switches in all types of electronic equipment such  as audio devices,office devices,communication devices, measuring instruments,TVs,video recorders automotive sets,etc.   Diagram       If you do not find the model you need, please contact us freely.
