100pc Sub-miniature Toggle Switch 2ms3t2b2m2qes On/off/on 3p Spdt 1a250v 3a120v

US $52.50

Taipei county,, Taiwan, Taiwan
Jan 29th

Open on mobile:
QR code

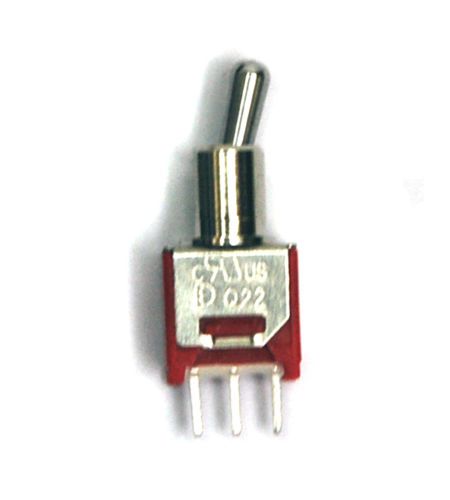

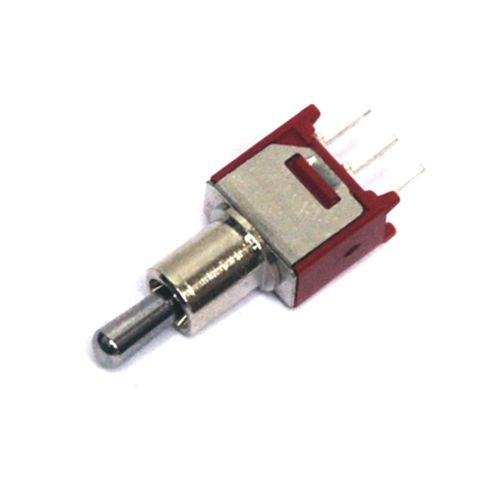

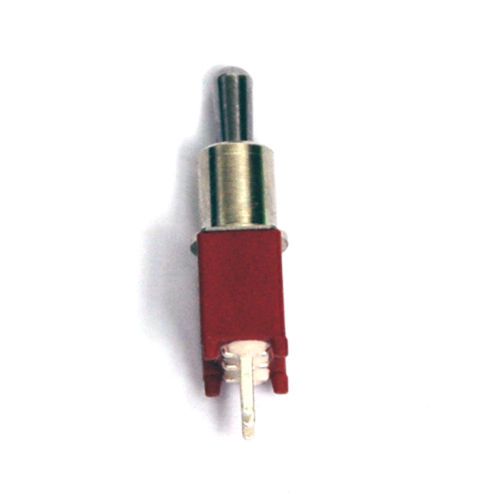

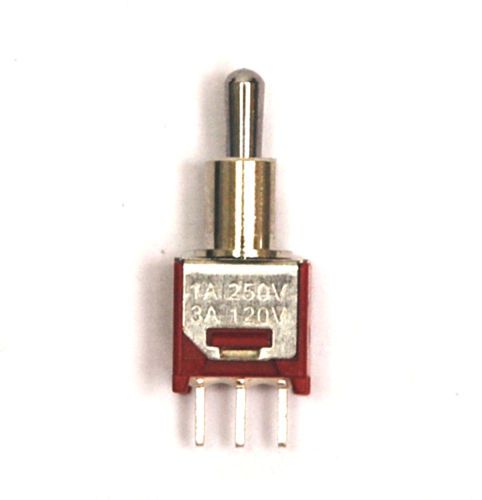

SquareTrade © AP6.0 Sub-miniature Toggle Switch 2M series On-OFF-On, 3 pins Part No. : 2MS3-T2-B2-M2-QES UL, RoHS & Lead Free PCB soldering pins SPECIFICATIONS : MECHANICAL LIFE: 30,000 make-and-break cycles. CONTACT RESISTANCE: 20 m?,max. initial @ 2-4VDC, 100mA for both silver and gold plated contacts. INSULATION RESISTANCE: 1,000 M?,min. DIELECTRIC STRENGTH: 1,000 Vrms min. OPERATING TEMPERATURE: -30°C to 85°C. MATERIALS : CASE: Diallyl phthalate (DAP) (UL94v-0). ACTUATOR: Brass,chrome plated. BUSHING: Brass,nickel plated. HOUSING: Stainless Steel. SWITCH SUPPORT: Brass,tin plated. TERMINAL/CONTACT: Brass,with Silver plated. Switch type : On-Off-On 3P, SPDT Contact rating : 1A 250VAC, 3A 120VAC Actuator Height : 5.33mm Bushing : 5.59mm high, flat (non-thd) Main body outside dimension : 8.13x5.08x8.64 mm, LxWxH Mounting through hole : >=?5.0mm Soldering pins dimension : 0.020"/0.52mm thick, and 0.030"/0.82mm wide, and 0.14"/3.6mm length. ( So,I suggest to drill the PCB hole=?0.8~0.85 is the best. ) Soldering pins pitch : 2.5/2.5mm Dailywell co., Made in Taiwan http://www.dailywell.com.tw/uploadpic/file/20130914144119f.pdf Q'ty per order : 100 pcs Net weight approx : 160g, 100pcs SH*N9.5x100 0.65 28 20141231+40g+10g+L0+Chiang General Guide about shipping Combine shipping with other items to reduce shipping cost are welcome, and please waiting my new invoice, do not direct paying by eBay auto-checkout, because it is usually uncorrected. Will ship worldwide by post “Airmail registered small package without insurance” The delivery is usually 2 weeks, but no warranty about delay, depends on the post. If you need the fastest delivery, take EMS please, but more expensive. If you need insurance, email me before paying, please. If items total price is over US$60, please consider to do insurance for them. I am notifying you, because this is a registered package, so, please arrange to have someone at home to sign for the delivery. If you have problem, email me before shipping please, I will change to regular airmail without registered, but the lost package risk is so high, and I can not response for it. Note : How do calculate the combine shipping ? I will check the package weight if over 760g, if over, then will auto change to post “Airmail parcel with or without insurance”, to save your money. For any under 760g package, and all items price under $60 , then will ship by post “Airmail registered small package without insurance”, and calculating by below steps : (1). Basic price=choice first lot the highest shipping price from all items. (2). Plus other items their additional lot shipping price. For example 1 : If you buy some item, and order 4 lots. the shipping cost listing on eBay are: $5.5(first), $0.75(each additional). So the total combine shipping cost=$5.5+$0.75x3= $7.75 . For example 2 : you buy 3 different items, and each item all is 1 lot, and each shipping cost listing on eBay : item1=$5.5(first), $0.75(additional, second lot), item2=$5.75, $1, item3=$8, $2. So the total combine shipping cost=$8(item 3)+$0.75(item 1)+$1(item 2) = $9.75 . For example 3 : you buy 3 different items, and item 1=3 lots, item 2=2 lots, item 3=2 lots, and each shipping cost listing on eBay : item1=$5.5(first), $0.75(additional, second lot), item2=$5.75, $1, item3=$8, $2. So the total combine shipping cost= $8(item 3)+$2(item 3)+$0.75x3(item 1)+$1x2(item 2) = $14.25 . Hope you can understand. You can calculate by yourself or ask me a combine shipping cost quotation before bidding, or directing order and wait a moment, I will sent a new and correct invoice to you. About the import duties/fee, taxes: Usually, will write only 1/2 actual value or less than $30 to your customs to avoid the possible import fee, for these “registered Airmail package”, and actual value less than $60 of order. Anyway, the Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. Thanks for you looking.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Dailywell co., Made in Taiwan
Country/Region of Manufacture	Taiwan
Model	2MS3T2B2M2QES On/Off/on 3P SPDT 1A250V 3A120V
Country of Manufacture	Taiwan, Province of China
