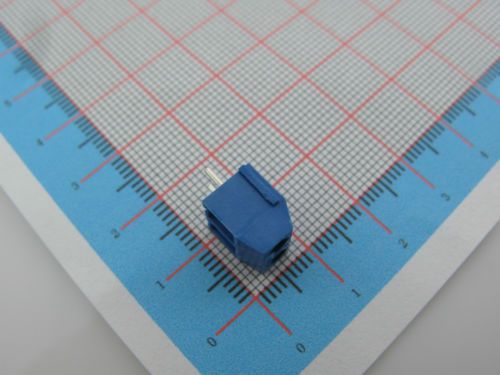

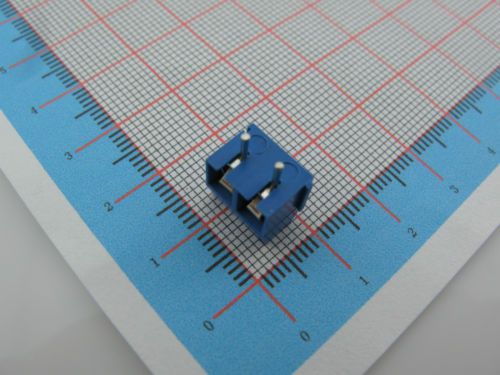

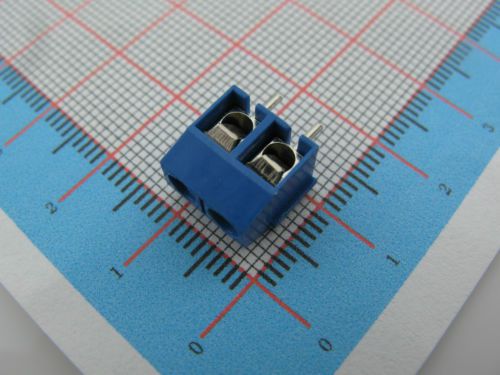

100pcs 2 Pin 2-way 5mm Pitch Screw Terminal Block Connector Rohs 301v-5.00-2p

US $17.99

  • Shenzhen, China
  • Jan 29th
  100 Pcs 5mm Pitch 2 way/pin Screw Terminal Block Connector  RoHS + Free shipping Model:#1281 Quantity: 100 Pcs Condition: Brand New Spec: Material - Housing:     PA66   UL94V-0 - Contact: Phosphor bronze,Ni plated - Solder pin: Brass,Tin plated - Screw:       M2 ,Steel,Zinc plated Electrical - Rated voltage:              300V - Rated current:              8A - Insulation resistance:   5000M?/1000V - Contact resistance:      20m? - Withstanding voltage:  2000V/1min - Wire range:              26~16AWG Mechanical & operating ambient - Torque:            0.2Nm - Strip length:        5~6mm - Temp.Range:     -40°C~+105°C - MAX soldering:  +250°C 5Sec Part. No.: 1281--301V-5.00-2P If you do not find the model you need, please contact us freely.
