100pcs/lot Ic Pic12f683-i/sn,8-pin Flash-based, 8-bit Cmos Microcontrollers

US $69.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

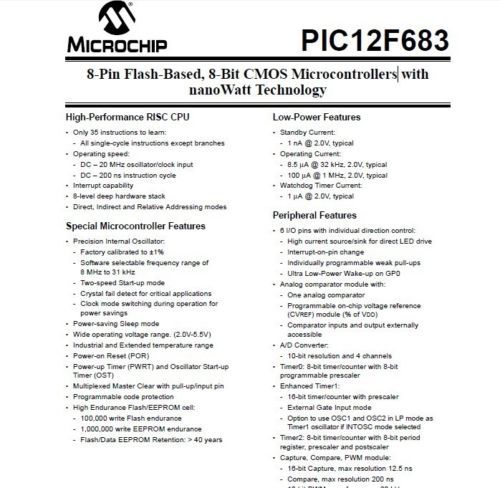

100 pcs/lot IC PIC12F683-I/SN Brand new Package: SOIC8_39MM ------------------------------------- 8-Pin Flash-Based, 8-Bit CMOS Microcontrollers with nanoWatt Technology High-Performance RISC CPU • Only 35 instructions to learn: - All single-cycle instructions except branches • Operating speed: - DC – 20 MHz oscillator/clock input - DC – 200 ns instruction cycle • Interrupt capability • 8-level deep hardware stack • Direct, Indirect and Relative Addressing modes Special Microcontroller Features • Precision Internal Oscillator: - Factory calibrated to ±1% - Software selectable frequency range of 8 MHz to 31 kHz - Two-speed Start-up mode - Crystal fail detect for critical applications - Clock mode switching during operation for power savings • Power-saving Sleep mode • Wide operating voltage range. (2.0V-5.5V) • Industrial and Extended temperature range • Power-on Reset (POR) • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) • Multiplexed Master Clear with pull-up/input pin • Programmable code protection • High Endurance Flash/EEPROM cell: - 100,000 write Flash endurance - 1,000,000 write EEPROM endurance - Flash/Data EEPROM Retention: > 40 years Low-Power Features • Standby Current: - 1 nA @ 2.0V, typical • Operating Current: - 8.5?A @ 32 kHz, 2.0V, typical - 100?A @ 1 MHz, 2.0V, typical • Watchdog Timer Current: - 1?A @ 2.0V, typical Peripheral Features • 6 I/O pins with individual direction control: - High current source/sink for direct LED drive - Interrupt-on-pin change - Individually programmable weak pull-ups - Ultra Low-Power Wake-up on GP0 • Analog comparator module with: - One analog comparator - Programmable on-chip voltage reference (CVREF) module (% of VDD) - Comparator inputs and output externally accessible • A/D Converter: - 10-bit resolution and 4 channels • Timer0: 8-bit timer/counter with 8-bit programmable prescaler • Enhanced Timer1: - 16-bit timer/counter with prescaler - External Gate Input mode - Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler • Capture, Compare, PWM module: - 16-bit Capture, max resolution 12.5 ns - Compare, max resolution 200 ns - 10-bit PWM, max frequency 20 kHz • In-Circuit Serial Programming™ (ICSP™) via two pins

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Microchip
MPN	PIC12F683-I/SN
Model	GoJGo.com-10108
