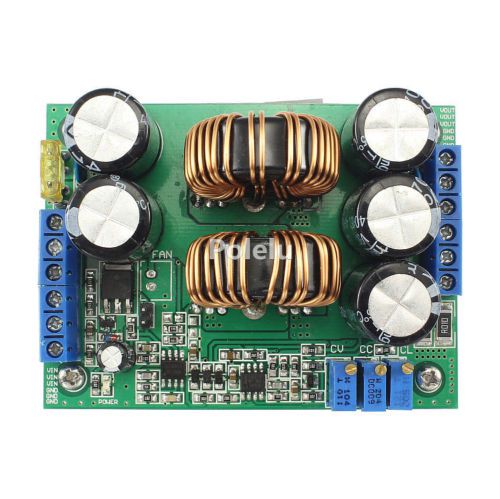

1200W 20A DC CC/CV Boost Converter 8V-60V to 12V-80V Volt Step-up Power Module, US $33.99 – Picture 1

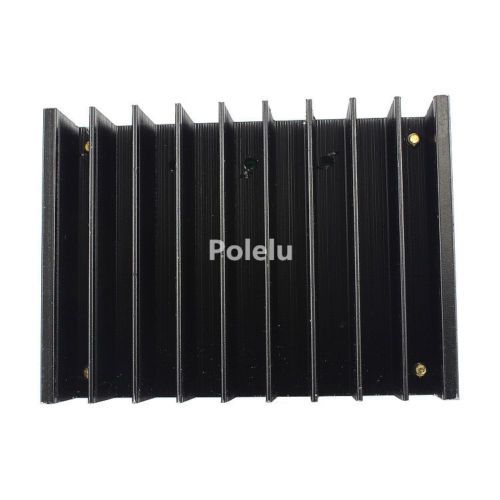

1200W 20A DC CC/CV Boost Converter 8V-60V to 12V-80V Volt Step-up Power Module, US $33.99 – Picture 2

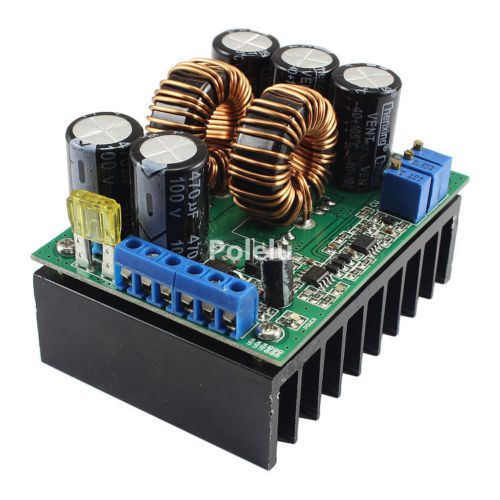

1200W 20A DC CC/CV Boost Converter 8V-60V to 12V-80V Volt Step-up Power Module, US $33.99 – Picture 3

1200w 20a Dc Cc/cv Boost Converter 8v-60v To 12v-80v Volt Step-up Power Module

US $33.99

GuangZhou, China
Jun 9th

Open on mobile:
QR code

1200W 20A DC-DC CC/CV Boost Converter 8-60V to 12-80V Volt Step-up Power Module Description Module Properties: non-isolated step-up module (BOOST) Input voltage: 8-60V Input Current: 20A Quiescent current: 15mA (12V turn to 20V, the output voltage is the higher,the current will increase) Output voltage: 12-80V continuously adjustable Output Current: 20A(MAX) More than 18A, please enhance heat dissipation Constant current range: 20A(max) Output Power = Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W, input 48V * 20A = 960W, input 60V * 20A = 1200W (If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel,the current per module can be adjusted to 15A.) Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation) Operating frequency: 150KHz Conversion efficiency: up to 95% (efficiency related with input,output voltage, current and voltage difference.) Overcurrent protection: Yes (With current limiting adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, according to the nature of the load current will be different.) Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security. Input reverse polarity protection: None (if necessary, please enter the string into the diode) Output prevent reverse irrigation: Yes, for charging plus blocking diode is not required. Installation: four 3mm screws Connection: solderless;terminals output Module dimensions:85*63*64(L*W*H) Weight: 350g Applications: 1. A DIY constant current power supply 2. Power supply for electronic device, please set the output value according to your system. 3. As regulated power supply, Power for your laptop, PDA or a variety of digital products supply. 4. DIY a laptop mobile Power supply. 5. Wind/Solar panels regulator (Charger). 6. Charging the battery, lithium batteries ect. 7. Driving high-power LED lights. Output voltage adjustment methods: Adjust to CV potentiometer, according to your battery or LED to set the required output voltage value. Output current adjustment methods: Adjust to CC potentiometer counterclockwise about 30 laps, the output current is set to the minimum,then connect the LED,adjust to CC potentiometer to the required current. (Please adjust the converter after the battery have already been discharged when charging. )Please do not use the short-circuit way to adjust current. Overcurrent adjustment: Design for output short circuit protection,that is when the output short circuit exceed the set limit current, power off and the output to a minimum 5A, vary depending on the load, thereby protecting the power module and power the device is not damaged. Adjustment method: first to set the current of protection point.For example the current is 8A ,it will protect.Using the method of output current adjustment,to set the output current to 8A, and then adjust the "overcurrent adjustment" CL potentiometer (counterclockwise rotation)to the output current can be suddenly reduced to the minimum.At this time overcurrent point is 8A. (Note that if the current protection point of less than equipment needed current source is protected, we recommend that if you do the best overcurrent clockwise to the maximum of 30 laps to be) Package Included: 1 x 1200W DC-DC 8-16V to 12-80V Boost Converter Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. We reserve the right to cancel your order if the payment is not made within 7 calendar days of checkout. We will use your Ebay/Paypal shipping address as the delivery address. Please make sure to provide us with correct and detailed shipping address. To Russia, please the receiver name must write your full name as post office required. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Shipping Detail All the items to USA will ship via ePacket with tracking number. To UK and Australia the buyer can choose "Expedited Int'l Shipping", we also will ship via ePacket with tracking number, it is better than registered mail,usually delivery time is 7-20 business day. But to Australia ZIP code 2898/2899/6798/6799/7151 can NOT ship via ePacket. Other countries, total price below $30 we will ship your item without tracking number. Otherwise, if you need Registered Mail shipping, please add $2.5(Can choose "Standard Int'l Shipping",we will ship via registered mail). Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need the other express way(EMS/DHL/FedEx/UPS),please contact with us for the correct price. Your order will be dispatched within 2 business days after the full payment is cleared. Airmail Packets' Delivery Time(reference only): USA,Australia,New Zealand,Southeast Asia, East Asia. 7-20 business days. Most European countries (France,Spain,Germany,UK,Sweden, Norway, Denmark,Netherlands,Austria,Portugal, Croatia, Finland, Switzerland, etc.) ,Canada,10-25 business days. Some remote city will take more than 25 business day. Italy,Russia, Brazil, Turkey, Ukraine, India, 14-35 business days, 90% take long time. Eastern Europe,West Asia,Central Asia, 15-30 business days,80% take long time. Africa,Chile,Argentina,Mexico,Other Countries. 15-40 business days,usually long time. Delivery time depends on postal process and other factors(Weather,Vacation,Customs,etc.),it can receive as fast as 7 days,but it can take as long as 4-7 weeks in some cases. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible(within 24 business hours). Return Policy Please contact us before you leave Negative or Neutral Feedback if you are not satisfied with our products,we will resolve it asap. DOA(Dead On Arrival) or Wrong Item will be offered exchange. Refund will be offered if stock is not available Defective goods must be returned within 30 days after receiving it for exchange or refund. Buyer is responsible for return shipping cost in any situations. Contact us Please feel free to contact us from ebay if you have any questions , we will reply you within 48 hours except the weekends and public holidays. Please contact with us before you leaving Negative or Neutral feedback, and please DO NOT open any case, we will try my best to resolve your problems ASAP.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country of Manufacture	China
Model	Voltage step up converter
Input voltage	DC8-60V
Brand	Geneiric
Output voltage	DC12V~80V
MPN	Does not apply
UPC	Does not apply
