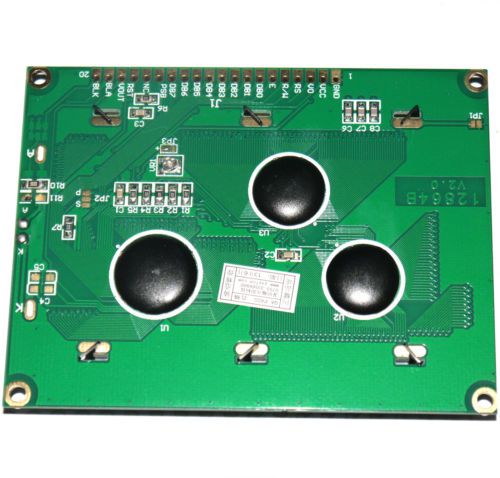

12864 Blue Backlight 128x64 Dots Graphic Matrix Lcd Module Hot Sale

US $10.87

  • China, China
  • Jan 29th
Open on mobile:
QR code
Module Description The controller of this LCD is ST7920 Items size unit Module volume 93 X 70 X13 mm View area 72 X40 mm Point distance 0.52 X 0.52 mm Point size 0.48 X0.48 mm Parallel mode interface definition:  Pin number definition level Function specification 1 VSS 0V Power supply negative 2 VDD +5V Power supply positive 3 V0 - Contrast control 4 RS H/L RS=H:shows data  RS=L:controls instruction 5 R/W H/L R/W+H,E=H,data was read DB7-DB0 R/w=L,E=H=L:the data of DB7-DB0 was written to IR or DR 6 E H/L Enable pin 7-14 DB0-DB7 H/L Data line 15 PSB H/L PSB=H,parallel mode,PSB=L,serial mode 16 NC - Empty pin 17 /RESET H/L Reset terminal,low level valid 18 Voult - Module drives voltage output terminal 19 A +5V Backlight power supply positive 20 K 0V Backlight power supply negative Serial module interface definition: Pin number definition level Function specification 1 VSS 0V Power supply negative 2 VDD +5V Power supply positive 3 V0 - Contrast control 4 CS H/L Chip selection terminal,high level valid 5 SID H/L Serial data input terminal 6 CLK H/L Serial synchronous clock 15 PSB H/L PSB=H,parallel mode,PSB=L,serial mode 17 /RESET H/L Reset terminal,low level valid 19 A +5V Backlight power supply positive 20 K 0V

Directions
