12v 4ch Channel 433mhz Wireless Remote Control Switch With 1 Transimitter

US $12.88

???, ???, China
Mar 8th

Open on mobile:
QR code

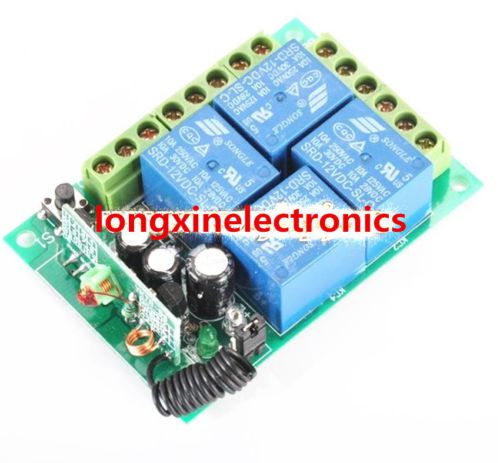

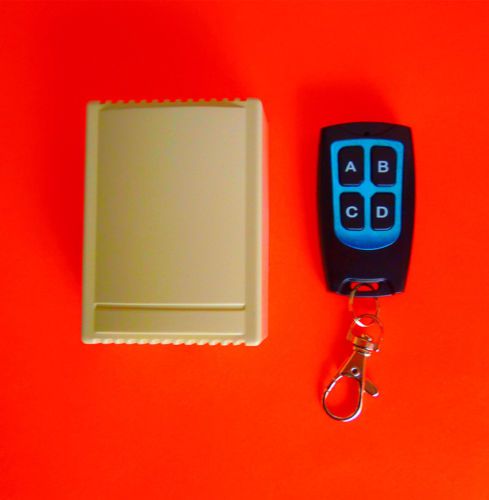

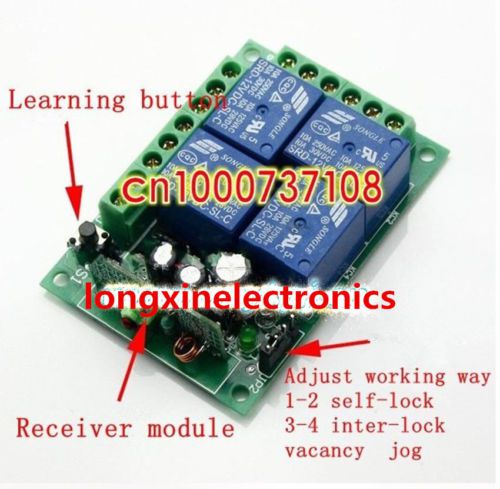

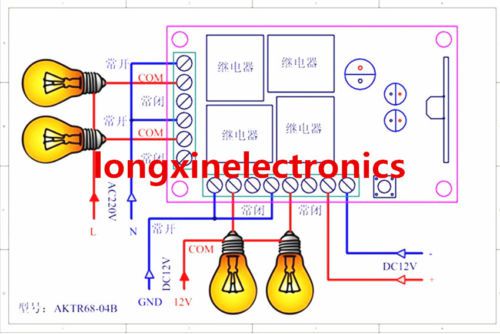

12V 4CH Channel 433Mhz Wireless Remote Control Switch With 1 Transimitter 12V10A learning code receiver /switch with suicase cover +transmitter /remote control This is a high quality wireless control, and it's easy to install You can turn on or turn off the receiver with transmitter(remote control) from any place within a reliable distance The wireless signal can pass through walls, floors and doors There is a slidable cover on the remote control There is also a hook on the remote control. It's easy for you to carry It uses fixed coding, stable and reliable Operating Voltage: DC12V Maximum Load: 10A Operating Frequency: 433 MHz Receiver Sensitivity: -100dBm Encoding Type: learning code the output way is adjusted between Jog/inter-lock /self-lock Working/Output way Jog: press one button is working . loosen your finger on the same button is stop .need one channel switch and one buttons remote control ) Self -lock: press one button for one time is working .press the same button again is stop .(need one channel switch and one buttons remote control) Inter-lock : press one button is working ,press another button is stop . (need one channelswitch and 2 buttons remote control) Choosing the working style? 4 Channel Jog: Press the learning button, took your finger out until the learning indicator light (red) blink once. Self-lock: Press the learning button, took your finger out until the learning indicator light (red) blink twice. Inter-lock: Press the learning button, took your finger out until the learning indicator light (red) blink three times. Note: After changing the setting you must remove power and then reapply power and new way will be set. How to reset the working style? Reset: Press the learning button after the indicator light out about 5 seconds later. IF you have more than one remote controller, and how do you know whether the remote controller suit for your item? Press any button of your remote controller, if the item make beep, that means the remote controler is suit for this item. How to match the remote controller and the swiitch? 4 channel switch match the remote: Press the button until the learning indicator light(red one) light and then press one of the remote button to match it with the switch. when the indicator light blink twice, the remote can be used. you can repeat the steps to set other buttons on the remote. Please keep in mind that for the 4 channel switch, you need choosing the working way before power on. This is very important! Choosing after power on, is useless. Please notice that here is 4 CH and 4 buttons wireless remote control .you can choose the jog or self-lock output way,press the button is on ,loosen the button is off ,or press the button is on press the button again is off Output way: 4 CH switch signal 12 V voltage 12v10A wireless remote control system /receiver and transmitter It also mean the output way is adjustable, it can control the motor running in positive and reverse directions directly with the voltage output, it can output 4 CH independent switch signal, The pin can be adjusted, it can meet the need of all the fixed code remote control design, one remote control can control 2 switches. The wireless remote control switch it is the widely use wireless remote control controller parts, it use the mini Processor control something intelligently. Its application range Garage door wireless remote control system, lamp/light wireless remote control, wireless remote control curtain and so on, it is easy to install and easy to use , Safe and reliable . Learning and remove method Press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully . It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control Remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully Package included: 1 x Transmitter(with battery and key ring ) 1 x Receiver(with the cover ) Shipping and Handling We ship worldwide by international air mail from Hongkong Airway Postal and China Airway postal. Email us before payment to arrange UPS Speed post for 2 to 7 days delivery. We will offer a free Registered Number for the flat rate shipping service once the total value of your order is over $25. Otherwise, you have to pay extra $2.5 as the registered cost if you want to apply register service. We reserve the rights not to ship to any zero/negative feedback rating buyers. Items will be shipped out in most cases within 48 hours of payment being received. (Excluding Weekends and Public Holidays) Due to security reason, we reserve the right not to send items to unconfirmed Paypal address. Delivery Time Country Approx. Delivery time United States 7-21 working days Canada / United Kingdom / Australia 15-30 working days Italy / France / Spain / Germany/ Eastern Europe/Brazil / South America 30-40 working days
