12v Dc Fan Motor Reversible Unimotor #30314 Highest Quality

US $38.50

Folsom, California, United States
Jan 29th

Open on mobile:
QR code

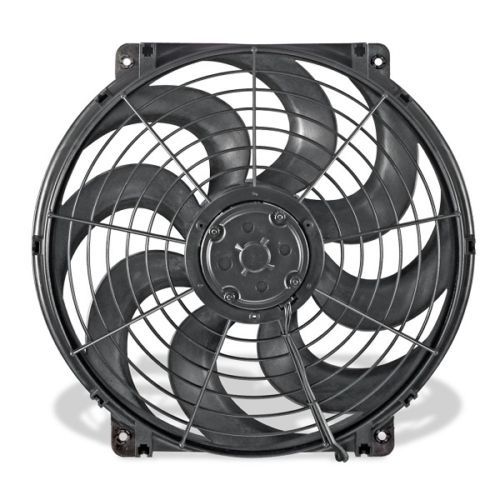

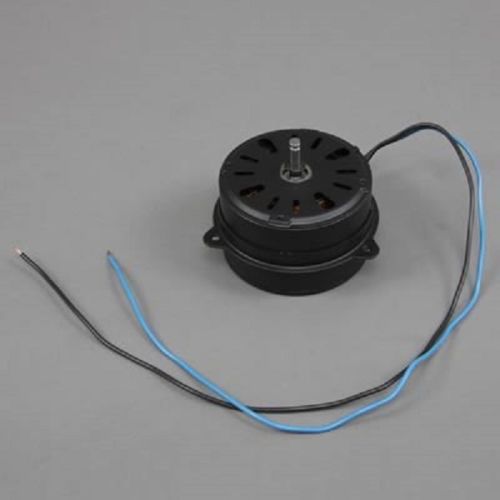

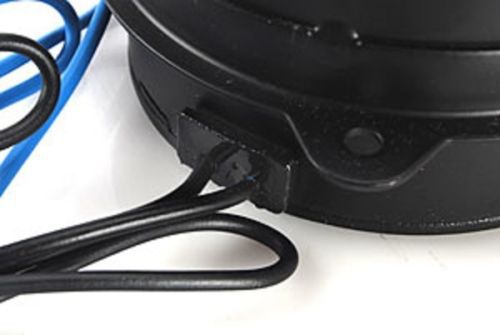

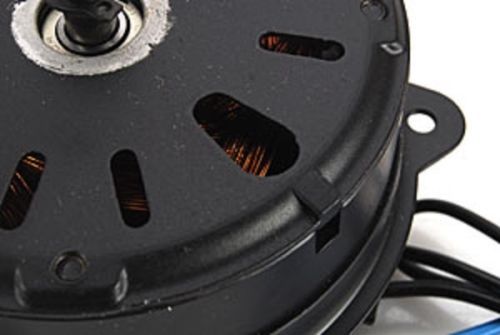

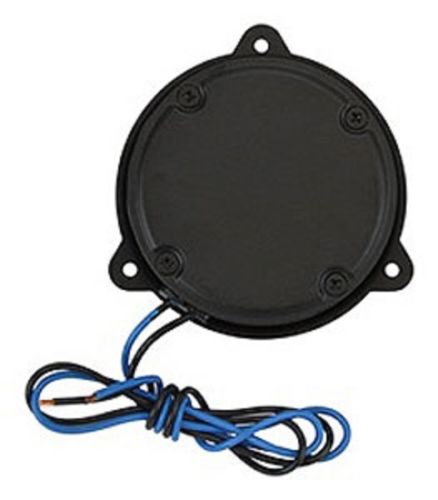

One of the highest grade quality 12VDC reversible electric fan motors ever produced. This is a Unimotor Model #30314. Manufactured by Unimotor of Canada from about 2003-2008. Brand New, Unused, but WITHOUT ORIGINAL PACKING. Fully inspected and tested. Resealed in plastic and includes original factory Unimotor Specifications and Data paperwork. Contact me for factory specifications data sheet. 916-223-2933 Originally sold for $200.00+ each. Built to US/Canadian and military ANSI/ASME standards. A very versatile and universal made motor. Motor is black. Vented in front. Equipped with x2 (14 gauge) connecting wires (x1 blue/x1 black). Can be wired for clockwise/counter-clockwise shaft direction. A valuable feature. This motor was designed/intended for a variety of purposes including automotive, industrial, marine, and military. Currently it is used with the "Flex-A-Lite" #396 16" dia. cooling fan for a cooling system. Currently being used is a cheap universal Chinese made replacement version of this model. It is far less superior in performance and quality than this original Canadian made Unimotor #30314. Housing has x3 mounting holes at 120 degrees apart. (Triangular positions). Mounting rim around body is 4.5' diameter. Mounting ears extend out 5.2" max. Body width is 2.5" from front to back. Body diameter is just under 4" (3.945") from side to side. The complete original Unimotor Factory Specifications, Data List, and Performance Test Curves are included. You will not find a higher quality motor of this size and design. The photos may differ slightly from the actual motor but the specs/data sheets will detail exact design, specifications, and measurements. You can email and/or call me for a PDF copy in advance. Shaft length extends out to .77" (3/4") from removable front c-clip. Shaft diameter is .315" (std 5/16") with one flat on the surface length. Has one additional recess at end of shaft to use as lock ring or c-clip. Could also be used with a set screw as a type of lock device. These methods would be used to mount and lock down a fan blade, pulley, gear drive, or many other devices. Some slight external superficial marks and signs of storage and/or handing may be visible (cosmetic only). Each motor is fully tested and inspected. Will be sealed in plastic and carefully wrapped and packaged in a firm shipping box. Quantities available. Weight is about 4/5 lbs. each. Please email me with any questions or concerns prior to bidding. Sorry no refunds or returns. Thank you and good luck! Factory Test Specifications: Test Voltage: 12Vdc Test Amperes: 13.5 Max. Test RPM's: 1700 RPM min.

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second, or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“New, unused condition without original packaging. Because they are not boxed there are some slight external marks and signs of storage and handling. Resealed in plastic and includes original Unimotor factory specification and data information.”
