1602 Lcd With Backlight Input 3.3-5v For Arduino Master Chip Ks0074,

US $400

Hong kong , Hong Kong
Jun 9th

Open on mobile:
QR code

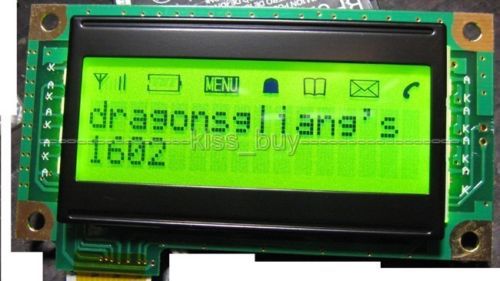

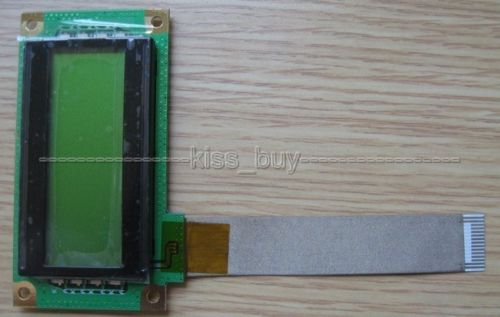

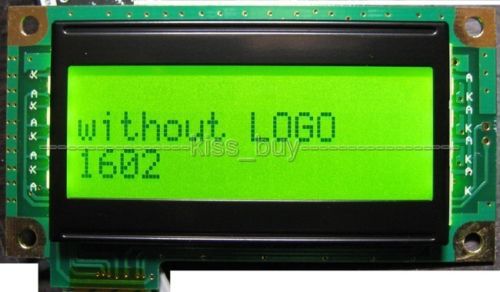

1602 LCD with backlight input 3.3-5v for arduino Driven routine data download Description: Features: pcb size: 85 * 44mm pcb Iron frame: 67 * 37mm, PCB thickness: 1.4mm about: 40G Interface uses pfc cord, 15p, 1mm pitch. Length 6.5cm. Display 2 lines of characters The above line is a special symbol 5 grid antenna,3 grid battery. Black font. Yellow-green backlight, product development, Suitable experiment Support 3.3v, 5v power supply. 5v need 45 ohm resistor in series led backlight power source.Prevent overheating led 3.3v also String 12 ohm backlight resistance Instructions Master chip ks0074, 1602 the same four lines of ordinary usage. The main difference is that the command points re = 0, re = 1.re is an internal register. re = 0, the two lines is written in ordinary characters. re = 1, the operation is a special icon. Specific commands can reference ks0074 manual. There are reference drivers, using a stm8,51, atmega32, arduino. Familiar microcontroller can be driven directly by reference. With ordinary four-wire as 1602. Interface definition: 1,2: 3: LED- 4: LED + (3.3 ~ 5.0V) 5: DB7 6: DB6 7: DB5 8: DB4 9: E 10: RW 11: RS 12: Vdd (3.3V-5v) 13,14: Vss Fifteen: Driver modify easily, for the vast majority of single-chip, as long as you have a common drive 1602 four-wire, three-step can drive a. Let ordinary 1602, show two lines in four-wire situation. b. Put this LCD restart. The board is compatible LCD pcb convert ordinary 1602 pin, a direct replacement. At this point it should be displayed around the image to character c. Modify the driver, two places: Displays the first address, the first line 0x80,0x90 :( Delay unit initialization procedure ms, can be increased at the beginning, and then transferred through the smaller) Package Contents 100% Brand New 1 x1602 LCD with backlight input 3.3-5v for arduino We can also wholesale if you need a large quantity of item please contact us :) Shipping : We only accept your Paypal Address,Please Make sure it's 100% right. The items you ordered will be shipped out in 1 business day by Air Mail when your payment is clear. Country Delivery Time Working Days (not including holiday) 5-7 8-10 11-14 15-19 20-22 >25 Working Days + Saturday + Sunday 5-9 10-14 15-20 21-25 26-30 >35 United States Rate (item arrived) 9% 50% 21% 13% 7% Refund or Resend United Kingdom Rate (item arrived) 10% 62% 20% 3.5% 4.5% Refund or Resend Australia Rate (item arrived) 23% 50% 13% 8% 6% Refund or Resend France Rate (item arrived) 1.5% 20.5% 45% 23% 10% Refund or Resend Germany Rate (item arrived) 5.5% 25% 35% 19% 15.5% Refund or Resend Canada Rate (item arrived) 0.0% 44% 35% 18% 3% Refund or Resend Spain Rate (item arrived) 1.5% 25% 50% 14% 9.5% Refund or Resend Payment : We accept PayPal only. All major credit cards are accepted through secure payment processor PayPal. Payment must be received within 7 days of auction closing. If you have bought multiple items from me, you can send me one payment for all the items instead of paying for them individually. When you click the Pay Now button, eBay will automatically determine if there are other items you have won or purchased from me and will combine them for your review. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help.We will try our best to solve any problem. If you have any questions, please feel free to contact us by ebay message. We will reply you within 48 Hours. Refund&Reship: If you are dissatisfied with our item or service, then please follow the good eBay practice to contact us by ebay message before leaving any feedback. We are committed to resolve all issues in a friendly and satisfactory manner. We always reply to ebay messages within 1-2 business days. If you do not get a response from us, then please check your ebay message. we only reply ebay message, no send email. Original and return shipping fee will not be refunded or reimbursed under all circumstances. You must agree and acknowledge this term if you bid for this item. Therefore, please do not complain about having to ship back at your own expense. Contact US:: If have any question, Please contact us by ebay message(no e-mail). Reply within 24hours. We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
