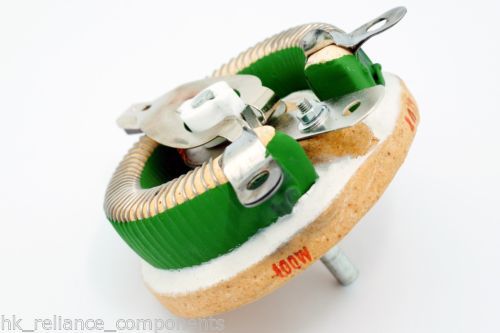

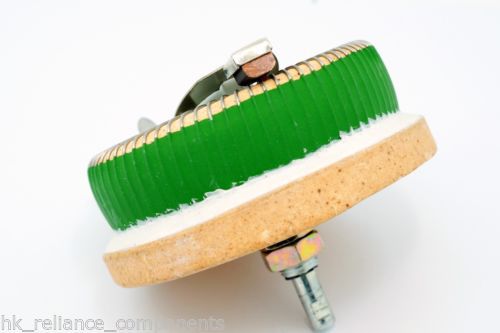

1k? 100w Power Wirewound Potentiometer Variable Rheostat, 1k Ohm 100 Watt

US $19.98

HK, Hong Kong
Feb 26th

Open on mobile:
QR code

Power Wirewound Rheostat / Potentiometer 1K Ohm +/-10% Ratings: 100 Watts at 25 °C Mechanical Travel: 300° +/- 5° Max Service Voltage: See Table Below. Determine by: V=(P*R)1/2 Max Current Through Wiper: See Table Below. Determine by (P/R)1/2 Dimensions Table Model Ratings Shaft ? mm A mm B mm F mm 25W 6 44 43 50 50W 6 66 43 75 100W 6 84 48 95 200W 6 106 74 120 Table for Maximum Service Voltage Vmax and Maximum Service Current Imax Nominal Resistance Ohm Max Service Voltage V Max Current Thur Wiper I (A) 1 10.0 10.0 1.5 12.2 8.16 2.2 14.8 6.74 3.3 18.2 5.50 4.7 21.7 4.61 5 22.4 4.47 6.8 26.1 3.83 10 31.6 3.16 15 38.7 2.58 20 44.7 2.24 22 46.9 2.13 25 50.0 2.00 30 54.8 1.83 33 57.4 1.74 47 68.6 1.46 50 70.7 1.41 68 82.5 1.21 100 100.0 1.00 150 122.5 0.82 200 141.1 0.71 220 148.3 0.67 300 173.2 0.58 330 181.7 0.55 470 216.8 0.46 500 223.6 0.45 680 260.8 0.38 1K 316.2 0.32 1.5K 387.3 0.26 2.2K 3.3K 4.7K Promotion on Shipping Upgrade We charge $2 only on shipping for 1st item and offers Free Shipping for All additional items. Spend $30 on 2 or more items to get FREE UPGRADE to e-Packet Deliery (For U.S) or Standard Int's (For All other countries). On-line tracking will be available at your countries post office websites*. Shipping All orders will be shipped from Hong Kong via Hong Kong Post Office. The following Shipping Methods vs Trackings will be available for selections in respect to your locations. Please select when checking out. e-Packet Delivery from Hong Kong Standard Int'l Economy Int'l Economy Int'l - Free Shipping. No Tracking Informations. Countries Shipping Methods Shipping Cost / Shipment Transit Time (weeks) Tracking United States e-Packet $2 ~ 1.5 to 3 USPS (U.S. Postal Service) Economy Int'l Free ~ 2 to 3 None Canada, U.K., France, Germany, Australia, Western & Northern Europe Standard Int'l $2 ~ 1.5 to 3 Countries Post Office Websites* Economy Int'l Free ~ 2 to 4 None Italy, Spain, Russia, Southern & Eastern Europe Standard Int'l ONLY $2 ~ 3 to 8 Countries Post Office Websites* Rest of the World Standard Int'l ONLY $2 ~ 3 to 10 Countries Post Office Websites* *Tracking informations may not be available for all countries. It depends on your countries post offices. Payment Paypal is the only payment method we accept at this time. We charge only one time shipping fee $2 for multiple items, please make one payment transaction to enjoy the combine shipping discount. Returns Policiies Returns will be accepted with No Questions Asked, however the returns must be in good conditions, never been used and with its original packageing materials. Buyer pays return shipping charges, except it is due to quality problems. In case of product quality problems, please contact us to get a resolution. Normally we offer a money refund or article replacement at your choice. Questions Please feel free to contact us via ebay or hotmail at hkelectronicslulu(at)hotmail.com. Thanks for visiting. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	RP100W1KR
Country/Region of Manufacture	China
