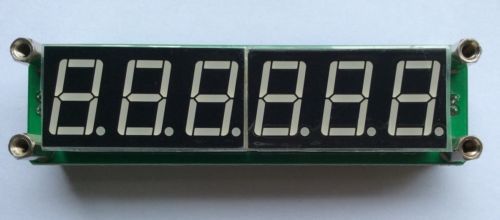

1MHz-1000MHz PLJ-6L RF-Singal Frequency-Counter Digital-LED Tester Meter BLUE, US $12.55 – Picture 0

1MHz-1000MHz PLJ-6L RF-Singal Frequency-Counter Digital-LED Tester Meter BLUE, US $12.55 – Picture 1

1mhz-1000mhz Plj-6l Rf-singal Frequency-counter Digital-led Tester Meter Blue

US $12.55

???, ???, China
Apr 22nd

Open on mobile:
QR code

NEW 1MHz-1000MHz PLJ-6L RF-Singal Frequency-Counter Digital-LED Tester Meter blue Features: Color:blue PLJ-6LED-H is the high cost of six LED frequency display designed specifically for the HAM module, mainly for display devices such as transceiver frequency values can also be used in conventional frequency measurements. The module has a compact, reliable performance, visual effects, low cost and so on. Main features: Master by the United States Microchip (Microchip) PIC16F648A as the core of 65MHz frequency counter. Japan KDS frequency reference temperature-compensated voltage controlled crystal oscillator (± 2.5 ppm VC-TCXO) Unique gate control and precise time algorithm (non-timer interrupt) Gate (display refresh) time 0.64 seconds, real-time display frequency value. Frequency measurement accuracy 10Hz / 100Hz (digital right one) is optional. Dual IF design, IF value and plus / minus preset mode can be used alone, independently of each other. Display driver with LED display special chip, high brightness digital tube, less foreign interference. ARK six .56 inches using digital display, automatic blanking invalid zero, eight adjustable brightness. Circuit is simple and reasonable structure, two-button control, simple operation. The settings are automatically saved, boot directly invoked. Technical parameters 1. The gate time (Gate time) 0.64 Second 2. Measure the channel (Measurement channels) Input impedance (Impedance): high resistance Measuring range (Measuring range): 1 MHz ~ 999.999 MHz Accuracy (Accuracy): 100 Hz / 1000 Hz Sensitivity (Sensitivity): HM8134-2 test data (for reference only) Test frequency (MHz) 5 10 30 60 100 150 200 300 450 Sensitivity (mV RMS) 50 40 20 20 30 30 30 40 60 Test frequency (MHz) 500 550 600 700 800 900 1000 1100 1200 Sensitivity (mV RMS) 80 90 90 120 150 180 230 360 410 3. IF setting (Frequency offset) Independent double-IF design, IF adjust the minimum increments of 1 KHz, mid-range 0 ~ 999.999 MHz, can be set to add or subtract IF IF mode, the factory default value is zero intermediate frequency (ie, the display value is the signal frequency). The frequency reference (Frequency reference) Warming 13.000MHz 5032 package uses voltage controlled crystal oscillator (VC-TCXO), frequency stability of ± 2.5 ppm. 5. Working voltage (Operating voltage) DC Input: DC 8V ~ 12V (recommended 9V) 6. Working current (Current) (Supply voltage: 9V Brightness: 4 full brightness) Digital models : Operating Current (mA) SMA410563 red 100 SP610561B blue 85 SP810561G3 green 85 SP510561Y2 yellow 100 SP2105619 Army green 100 7 shows the median (Display digits) Six common anode digital display, the highest six-digit display. 8. Display brightness (Helligkeit) Eight LED brightness is adjustable, factory setting is four brightness. 9. Physical Dimensions (Physical Dimensions) Length x width x height (Length x Width x Height): 91 mm x 28 mm x 20 mm 9. Module Quality (Weight) 40 g 10. Onboard Interface (Schnittstellen) RF IN (Signal Input Signal input): HX2.54-2P side port outlet ICSP (programming interface Programming interface): HX2.54-6P side port pins DC IN (Power Interface Power Interface): HX2.54-2P side port outlet Package Contents 1 X new 1MHz ~ 1000MHz PLJ-6LED-H frequency meter frequency measurement module blue Shipping & Handling Policy · Generally, delivery time is 10-20 business days to USA, United Kingdom, Australia and 15-30 days to most other countries. · All orders will be processed within 48 hours from the date of payment .The delivery confirmation will be sent ebay message when your order is processed · We will make shipment according to the address you put on eBay, if you want us to ship items to a different address please contact us before making the payment. International Buyers Note: 1) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. 2) Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. Payment Policy We accept Paypal only. Returns Policy · We always take customer service seriously and want you to be 100% happy with your shopping experience here. If you are unsatisfied with our item or service, then please follow the good eBay practice to contact us before leaving any feedback and return it within 14 days for a replacement or money back. · Please contact me before you return it. · Buyer is responsible for the shipping cost of return postage. · Shipping and insurance costs will not be refunded. · We are committed to resolve all issues in a friendly and satisfactory manner. Contact us: If you have any problems, we are very glad to help you. We are handling large volume emails every day. Please allow us to reply your email within 24hrs Feedback: · Dear buyers, we appreciate your business, if you are satisfied with our service, please leave us a positive feedback . When you rate the shipping time part please take international transit into consideration. · Your recognition will make us more confident to develop business and serve you better. · Our goal is to make sure you are a happy buyer and pleasant shopping with us. · Please email us before leaving any 1 or 2 ratings, negative feedback or open any dispute. · We understand the concerns and frustrations you might have, and will do our endeavor to resolve the issues. Please give us the opportunity to resolve any problem. thank you !
