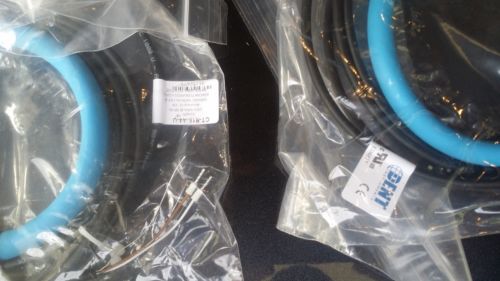

2 EA. Dent CT-R16-A4-U RoCoil Flexible CT 16" Current Transformer CTR16A4U, US $150.00 – Picture 0

2 EA. Dent CT-R16-A4-U RoCoil Flexible CT 16" Current Transformer CTR16A4U, US $150.00 – Picture 1

2 Ea. Dent Ct-r16-a4-u Rocoil Flexible Ct 16" Current Transformer Ctr16a4u

US $150.00

Shelocta, Pennsylvania, United States
Jun 9th

Open on mobile:
QR code

Description FIRST REASONABLE OFFER GET THEM. DENT RoCoil™ Flexible Current Transformers TheDENT RoCoil™Current Transformers have been designed for accurate non?intrusivemeasurement of AC current, pulsed DC or distorted waveforms. Thistype ofsensormay be used to measure AC current over a wide dynamic range and from40Hz to 5 kHz.Note: The RoCoil™may require use ofintegrator/ ampli?er. See also RoCoil mV™. RoCoil™ Dimensions Dimensions R16 40 cm (16") R24 60 cm (24") R36 90 cm (36") R72 183cm (72") A - Window Size 13 cm(5") 19 cm(7") 26 cm(10") 56 cm(22") B - Transformer Coil O.D. 15 cm(6") 21 cm(8") 29 cm(11") 58 cm(23") C - Transformer Length 40 cm(16") 60 cm(24") 90 cm(36") 180 cm(72") D - Locking ConnectorO.D. 3.6 cm(1.4") E - Transformer Coil Diameter 1.5 cm(0.6") F - Wire Lead Total Length 2m(80") Key Specifications Four Lengths 40cm(16"),60cm(24"), 90cm(36"), 183cm(72") Window Size 13cm(5"),19cm(7"), 26cm(10"), 58cm(23") Output Signal(di/dt) 131mVAC/1000A @ 60Hz 110mVAC/1000A @ 50Hz Current Range 5 - 5000AAC Accuracy < 1% Electrical All accuraciesspecified at 20°C (±2°C)withRoCoil™centered on conductor. Output Signal 131mV/1000A@ 60Hz 110mV/1000A@ 50Hz Wire Colors White = (+) positve Brown = (?) negatve Bare wire = shield Phasing Arrow Points Towards Load Phase Shift < 1° at 50/60Hz Frequency Range 40Hzto 5 kHz Useful Current Range 5 - 5000A AC* Linearity ± 0.2% Conductor Position Sensitivity ± 2%maximum In?uence of External Field ± 1.5%maximum Temperature Sensi?vity 0.07% per°C Mechanical Coil Materials Blue thermoplas?c rubber, ?ame retardantUL 94 V?0 rated Coupling Materials PolypropyleneUL 94 V?0 rated Shielding 85% transducer, 100% output lead Working Temp ?20 °C to +80 °C (?4°to +176 °F) Safety Working Voltage 1000 Vrmsmaximum Dielectric Strength 7400 VAC around coil 1000 VAC rated leads Cert?cations Conforms to UL STD61010?1 Certi?ed to CAN/CSA STDC22.2 No. 61010

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Dent
MPN	CT-R16-A4-U
Model	CT-R16-A4-U
