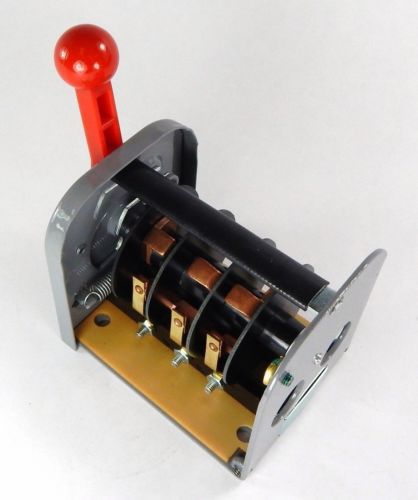

2 Hp-7.5 Hp Electric Motor Reversing Drum Switch 1 & 3 Phase Position=maintained

US $118.98

Burton, Michigan, United States
Jun 9th

Open on mobile:
QR code

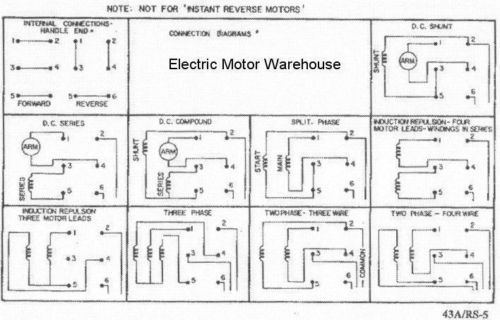

Canadian Ground Shipments by Purolator Click Here for Details Ships from Michigan Relay and Control Corporation Electric Motor Reversing Drum Switch Position = Maintained Lever = Plastic 2 hp 115 Volts Single Phase 3 hp 230 Volts Single Phase 5 hp 230 Volts Three Phase 7.5 hp 460 Volt Three Phase View Wiring Diagram For Starting Electric Motors - Forward & Reverse Switch Not for Instant Reverse Motors Metal frame heavy gauge pressed steel (grey finish) Lever = Plastic Made in the USA UL Listed, CSA Certified Instructions Included Dimensions: W: 3.5" H: 5.75" D: 3.75" Cross Reference: Dayton - 2X443 McMaster Carr - 7065K25 Cutler Hammer H-284 Furnas - J-5 Square D - BG-1 Catalog # RS-5 Note: We recommend this control only be installed by a qualified technician that understands how electric motors are wired. Motor must have wire leads for connections. If motor only has a terminal board it will be very difficult to wire the switch. This installation would most likely require a skilled electric motor technician. Please do not call us and ask us how to connect the switch to the motor, as we will not be able to assist you. If you do not understand how to do it you may have to take the motor and switch to an electric motor repair facility for their assistance. It is extremely difficult to do it by phone. Single Phase Wire Code Legend for motors with wire colored leads. May not relate to the wire colors on a terminal board. Blue = T1 White = T2 Orange = T3 Yellow = T4 Red = T8 Black = T5 Winans Inc DBA: Electric Motor Warehouse, Burton, Michigan 48529 810-744-1240 Monday - Friday 8am to 4:30pm EST If you need additional information regarding this product e-mail us and we will be glad to answer your questions. We accept Visa, Mastercard, Discover and American Express or PayPal. No COD's! Positive feedback is left automatically for the buyer by the system as soon as you, the buyer, submits feedback for us. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	MPN	RS-5
Brand	Relay & Control
Country of Manufacture	United States
UPC	663001307433
