200 Pcs/lot Ic 74hc74d, Dual D-type Flip-flop With Set And Reset

US $14.90

Shenzhen, China
Jan 29th

Open on mobile:
QR code

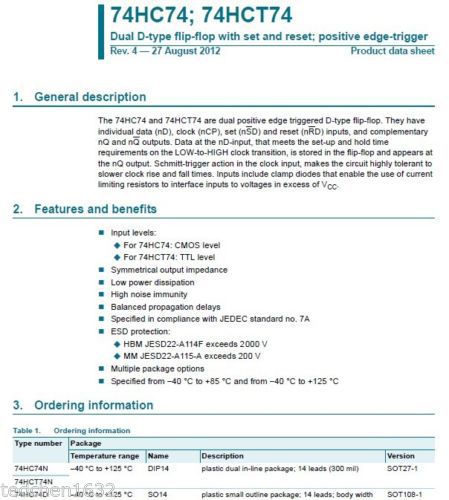

1. General description The 74HC74 and 74HCT74 are dual positive edge triggered D-type flip-flop. They have individual data (nD), clock (nCP), set (nSD) and reset (nRD) inputs, and complementary nQ and nQ outputs. Data at the nD-input, that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition, is stored in the flip-flop and appears at the nQ output. Schmitt-trigger action in the clock input, makes the circuit highly tolerant to slower clock rise and fall times. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits ? Input levels: ? For 74HC74: CMOS level ? For 74HCT74: TTL level ? Symmetrical output impedance ? Low power dissipation ? High noise immunity ? Balanced propagation delays ? Specified in compliance with JEDEC standard no. 7A ? ESD protection: ? HBM JESD22-A114F exceeds 2000 V ? MM JESD22-A115-A exceeds 200 V ? Multiple package options ? Specified from ?40 ?C to +85 ?C and from ?40 ?C to +125 ?C On Sep-30-14 at 19:34:35 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	NXP
IC Package	SOIC14_39MM
Model	GoJGo.com-10327
Category	Logic IC, 74 serial
MPN	74HC74D
