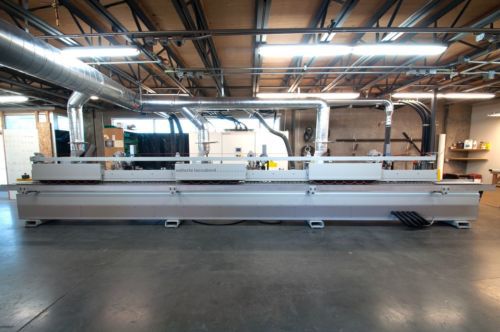

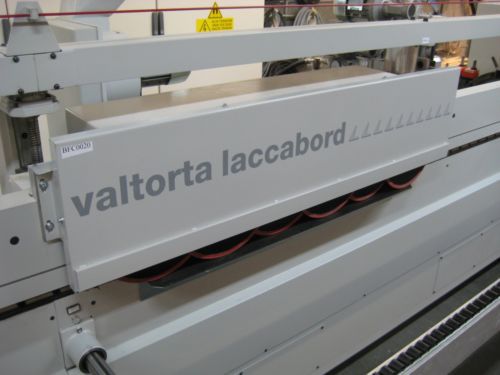

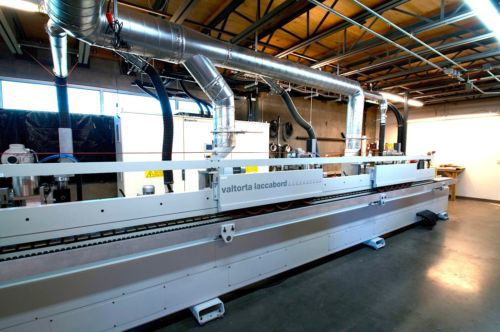

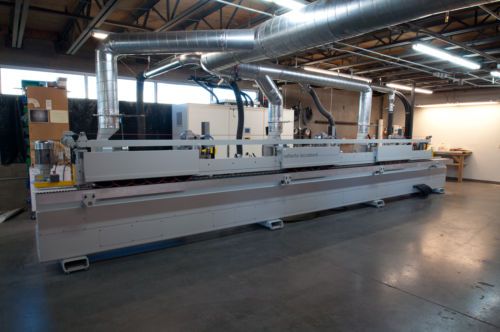

2012 Superfici Valtorta Laccabord Ultraviolet Edge Coat / Roll Coat Machine.

US $240,000.00

Seattle, Washington, United States
Jan 30th

Open on mobile:
QR code

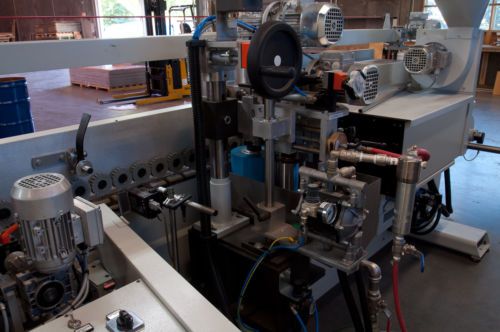

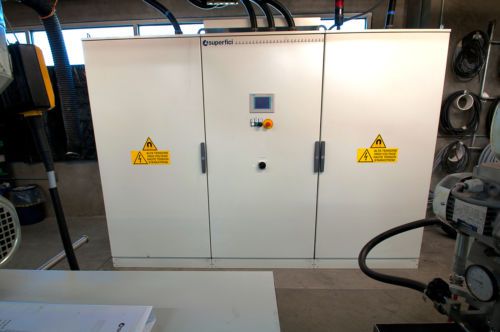

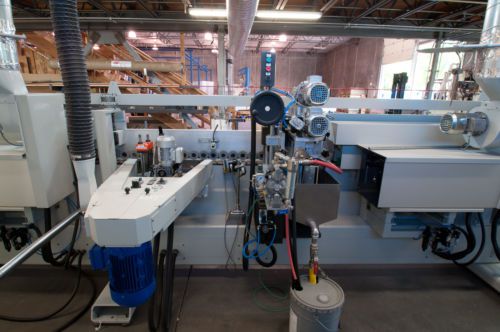

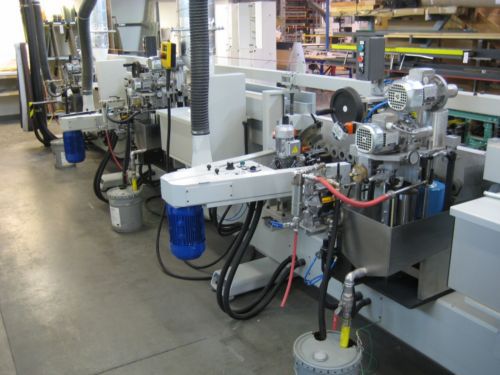

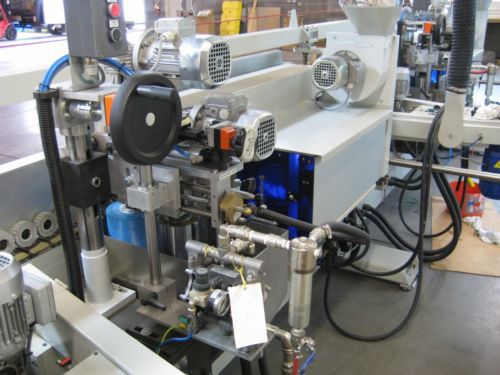

2012 SCM / SUPERFICI VALTORTA LACCABORD UV Roll Coat - Edge Coating Machine. - Siemens PLC interface with LCD touch panel control. PLC control of the machines stations allows for pin point adjustment of the machine parameters on the parts being run. Up to 100 different operator programs with distinct machine settings can be stored within the logic controller for automatic machine set up. Position 1 - Scotch Brite De-nibbing Head: - 250 mm diam. x 100 mm. Tilt adjustment from 0 to +90 degrees. Electronically adjustable speed from 140 - 1700 rpm's. Position 2 - Vertical Roll Coating Head: - 7" Rubber covered application roller, inverter controlled variable speed synchronized with feed speed. Position 3 - UV Drying Unit: - 160 W/cm mercury lamp w/reflector, power adjustable from 80-160 W/cm , 300 mm hood with .55KW exhaust fan. Position 4 - Oscillating Sanding Unit / Belt: - 60 mm x 2770 mm. Electronically adjustable speed from 140 - 1700 rpm's, Tilt adjustment from -15 to +70 degrees. Position 5 - Vertical Roll Coating Head: - 7" Rubber covered application roller, inverter controlled variable speed synchronized with infeed speed. Position 6 - UV Drying Unit: - 160 W/cm mercury lamp w/reflector, power adjustable from 80-160 W/cm , 300 mm hood with .55KW exhaust fan. Position 7 - Oscillating Sanding Unit / Belt: - 60 mm x 2770 mm, Electronically adjustable speed from 140 - 1700 rpm's, Tilt adjustment from -15 to +70 degrees. Position 8 - Printing Unit. Position 9 - Vertical Roll Coating Head: - 7" Rubber covered application roller, inverter controlled variable speed synchronized with infeed speed. Position 10 - UV Drying Unit: - 160 W/cm mercury lamp w/reflector, power adjustable from 80-160 W/cm , 300 mm hood with .55KW exhaust fan. - Min - Max part dimensions. Length 11.8" - 96", Width 1.6" - 63", Thickness .23" - 3.15" - Main drive motor is inverter controlled for variable feed speeds from 20 - 60 fpm. - Top pressure beam features motorized raise / lower additional mechanical ratchet for up / down. - Adjustable panel support bar, Adjustable Infeed fence. - Main cabled remote start / stop station with multiple additional emergency start / stop station locations. - Full set of complete Superfici factory manuals for the machine. Complete set of Siemens support CD's, software license, and manuals for PLC. - 480 Volts three phase, 58 Amps.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Superfici
Country/Region of Manufacture	Italy
Model	VALTORTA LACCABORD
