230 Ton X 12' Cincinnati Autoform Hydraulic Press Brake

US $129,500.00

Milwaukee, Wisconsin, United States
Jan 30th

Open on mobile:
QR code

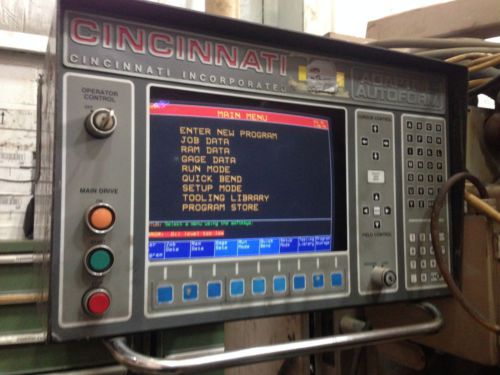

Pre Owned 1989 Cincinnati Model 230 Autoform CNC Press Brake GENERAL SPECIFICATIONS Capacity 230 TONS Overall length of Bed & Ram 12’ Distance Between Housings ` 10’ 6 1/4” Stroke 22” Open Height 29” Closed Height 7” Throat Clearance 8” Speeds Approach 230 IPM Form 1 - 45 IPM Return 1 - 250 IPM Distance, Floor to Top of Bed 36” Back Gauge Speeds X Axis 1200 IPM Width at Top of Bed 5 1/2” Main Motor Horsepower 230/460/3/60 CONTROL FEATURES Upgraded Adaptive PC Touchscreen Cincinnati Human Interface 15” TFT LCD flat panel color display With Touchscreen operator interface Keyboard with trackball pointing device Ethernet Convenience Outlet Inch or Metric unit display English / Spanish control display Operator station (ON / OFF, optional LEFT / RIGHT) Operator controls (ON / OFF) Footswitch (ON / OFF, optional LEFT / RIGHT) Multiple level password control (Operator, Manager, Administrator) Operator adjustable ram control inputs Multiple Step and Repeat Forming mode (Angle, Tonnage, Position, Absolute Position, Dynamic Thickness Compensation) Ram Opening Guard Mute Position Forming and return speeds Tool selection for each step Speed change position (up and down) Ram tilt about centerline of machine. 1” total end-to-end in either direction. Dwell time at bottom of stroke Up and down stroke stops (ON / OFF) Operator adjustable gage control inputs Flange dimension Gage allowance — Automatic calculation or operator input Retract distance Pause time Gage finger offset (not available/required on 5-Axis Backgage) Clamp Stop (ON, OFF, PAUSE) Automatic Z-axis gage position calculation (with optional 4X, 5-axis or 6-axis gage) Graphical Tool Library (American, European, and Wila styles) Automatic tool load tonnage calculation Tool Selection Software Quick Bend mode CAD functions Part Design Flat blank size calculation Manual Bend Sequencing Part Orientation Guide Setup Notes field Batch Program Operation Management Display Information Machine strokes Parts counter Batch counter Power on time Total cycle time Main drive on time Parts per minute Cycle time per part Maintenance messages Diagnostic Display Information Control diagnostics Machine diagnostics Oil temperature Backup and Restore Wizard Web enabled machine monitoring EQUIPPED WITH 24 ” 6 Axis CNC Heavy Duty Programmable Back Gauge (X1, X2, R1, R2, Z1, Z2) Autocrown Deflection Compensation Cylinder Power Clamp Upper Tool Holder Precision Ram Leveling with Dual Linear Glass Scale Encoders Off Center Load Compensation Variable Volume Load Sensing Pump and Servo Hydraulic System Full Tonnage Throughout Stroke Electric Foot Switch Pedestal Palm Button Station Manuals INterlocked Construction Clevice Mounted Self-Aligining Cylinders Dual Strain Gauges for Tonnage Mode Approximate Overall Weight 44,000 lbs. Approximate Overall Dimensions 151” L X 70W X ” 123 1/2 H Loading onto your truck included. Any questions? 414-264-5848 Alex More pictures at alecomachinery.com
