25 Foot Gore Phaseflex 18 Ghz Cable Sma M/f Tested, Guaranteed.

US $995.00

  • Canoga Park, California, United States
  • Feb 13th
Open on mobile:
QR code

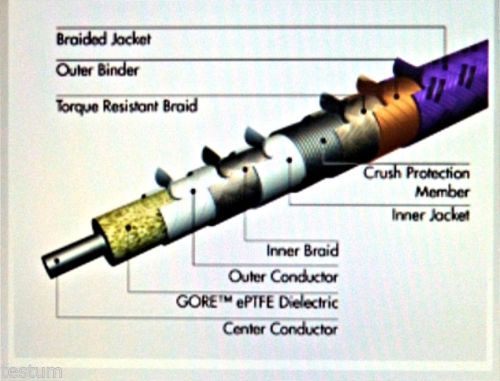

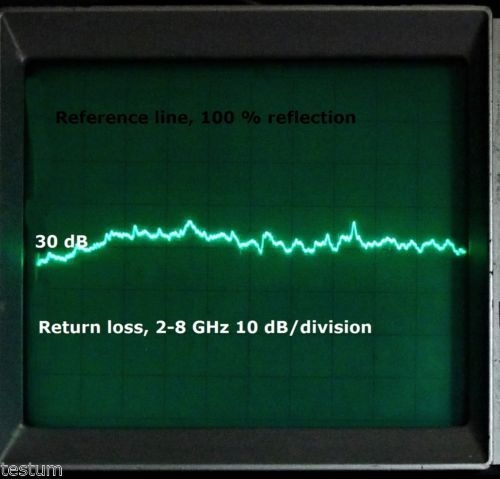

25 foot Gore OU Phaseflex flexible 50 ohm microwave coaxial cable; rated by maker to 18 GHz. Great to use with a network analyzer; or general RF/microwave test bench use because it is highly phase and amplitude stable, even with a small bend radius. This is the finest microwave cable available. It's ruggedly built to resist physical abuse; The outside diameter is .305 inches, 7.7 mm. At 16 GHz I measured the loss as 9.85 dB, at 8 GHz the loss measured 6.7 dB. The return loss measured at 16 GHz is 24.6 dB. Each is tested at 18.0 GHz; typically the loss is .42 dB per foot. Would make a great antenna feedline for commercial and amateur radio microwave applications. The Gore catalog is available on their web site, or look at the Richardson RFPD site for specifications and prices; the current new price for a 5 foot similar Gore OU cable is about $600. If you would like more information about this cable, please ask. This cable is in excellent condition; tested and guaranteed to be within specifications. If you need loss measured at a specific frequency between DC and 20 GHz, please ask. As with all of my microwave cables, this one has been tested at 16 GHz for loss return loss and mechanical stability. Many other tested cables of different lengths and with different connectors are available; please ask. You will see a lot of microwave cables on eBay; how many have actually been tested and are guaranteed? Will be very carefully packed to prevent shipping damage, and promptly mailed. Shipping insurance is highly recommended.
“Excellent condition; connectors pristine.”
Type Phaseflex UT
Brand W.L. Gore

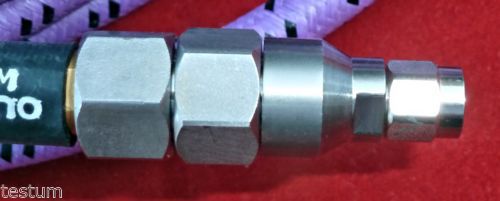

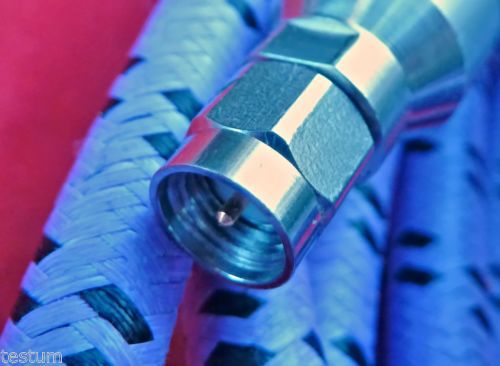

Connector A SMA Male

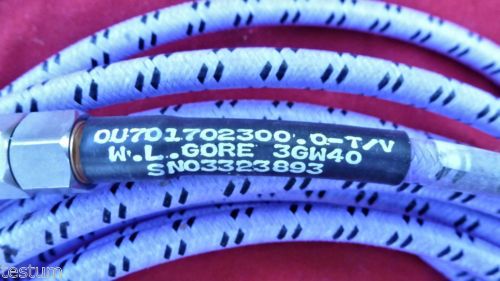

MPN OU701702300

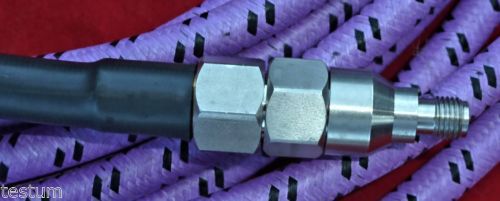

Connector B SMA Female, SMA Male
Cable Length 25 feet, 7.62 meters
Connection Split/Duplication None (1 : 1)
Country of Manufacture United States
