250 pcs/lot IC SN74LVC1G32DCKR, Single 2-Input Positive-OR Gate, US $12.90 – Picture 0

250 pcs/lot IC SN74LVC1G32DCKR, Single 2-Input Positive-OR Gate, US $12.90 – Picture 1

250 pcs/lot IC SN74LVC1G32DCKR, Single 2-Input Positive-OR Gate, US $12.90 – Picture 2

250 Pcs/lot Ic Sn74lvc1g32dckr, Single 2-input Positive-or Gate

US $12.90

Shenzhen, China
Jan 29th

Open on mobile:
QR code

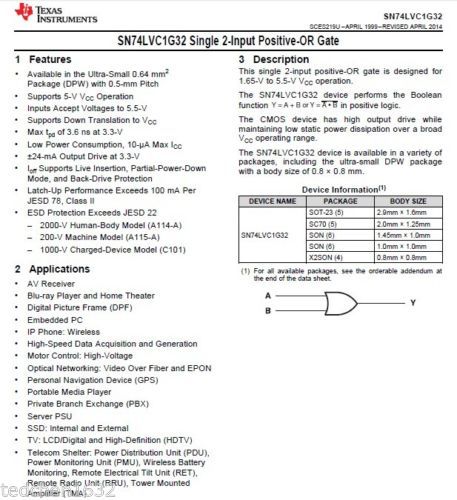

1 Features 3 Description This single 2-input positive-OR gate is designed for 1• Available in the Ultra-Small 0.64 mm2 Package (DPW) with 0.5-mm Pitch 1.65-V to 5.5-V VCC operation. • Supports 5-V VCC Operation The SN74LVC1G32 device performs the Boolean • Inputs Accept Voltages to 5.5-V function in positive logic. • Supports Down Translation to VCC The CMOS device has high output drive while • Max t maintaining low static power dissipation over a broad pd of 3.6 ns at 3.3-V VCC operating range. • Low Power Consumption, 10-?A Max ICC • ±24-mA Output Drive at 3.3-V The SN74LVC1G32 device is available in a variety of packages, including the ultra-small DPW package • Ioff Supports Live Insertion, Partial-Power-Down with a body size of 0.8 x 0.8 mm. Mode, and Back-Drive Protection • Latch-Up Performance Exceeds 100 mA Per Device Information(1) JESD 78, Class II DEVICE NAME PACKAGE BODY SIZE • ESD Protection Exceeds JESD 22 SOT-23 (5) 2.9mm x 1.6mm – 2000-V Human-Body Model (A114-A) SC70 (5) 2.0mm x 1.25mm – 200-V Machine Model (A115-A) SN74LVC1G32 SON (6) 1.45mm x 1.0mm – 1000-V Charged-Device Model (C101) SON (6) 1.0mm x 1.0mm X2SON (4) 0.8mm x 0.8mm 2 Applications (1) For all available packages, see the orderable addendum at the end of the data sheet. • AV Receiver • Blu-ray Player and Home Theater • Digital Picture Frame (DPF) • Embedded PC • IP Phone: Wireless • High-Speed Data Acquisition and Generation • Motor Control: High-Voltage • Optical Networking: Video Over Fiber and EPON • Personal Navigation Device (GPS) • Portable Media Player • Private Branch Exchange (PBX) • Server PSU • SSD: Internal and External • TV: LCD/Digital and High-Definition (HDTV) • Telecom Shelter: Power Distribution Unit (PDU), Power Monitoring Unit (PMU), Wireless Battery Monitoring, Remote Electrical Tilt Unit (RET), Remote Radio Unit (RRU), Tower Mounted Amplifier (TMA) • Video Conferencing: IP-Based HD • Vector Signal Analyzer and Generator • WiMAX and Wireless Infrastructure Equipment • Wireless Headset, Keyboard, Mouse, and Repeater On Sep-30-14 at 19:34:35 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Texas Instruments
IC Package	SOT-353
Model	GoJGo.com-10330
Category	Logic IC, 74 serial
MPN	SN74LVC1G32DCKR
