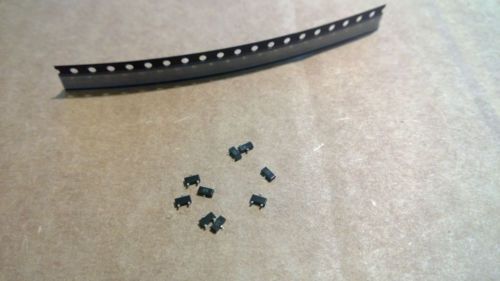

25pcs Alpha Industries Diode SMV1299 1299 USA Seller, US $1.55 – Picture 0

25pcs Alpha Industries Diode SMV1299 1299 USA Seller, US $1.55 – Picture 1

25pcs Alpha Industries Diode Smv1299 1299 Usa Seller

US $1.55

Pekin, Illinois, United States
Jan 29th

Open on mobile:
QR code

Product Information Alpha Industries SMV1299-001 25pcs The surface mount plastic varactor diodes are designed for RF and Microwave applications in VCOs, electronically tunable filters and matching networks. Package offerings include the SOT–23 and the small footprint SOD–323 package. Alpha offers a comprehensive capability in capacitance values, package options and voltage ratings all aggressively priced for high volume commercial applications. The SMV1247–001 to SMV1255–001 varactors were specifically designed for battery operated applications where 3 to 5 volts is available. These varactors have capacitance ratios of greater than 12 from 0.3 to 4.7 volts. Alpha’s hyperabrupt varactors are available in a wide variety of tightly specified capacitance values and high capacitance ratios. They are available as single junctions and common cathode configurations where they may be employed in a back–to–back orientation to reduce distortion. Alpha’s abrupt junction varactors are noted for extremely high Q factor and are the preferred choice in applications that require low phase noise and high temperature stability. The inductance of the SOT–23 package is typically 1.5 nH for each junction. Employing a common cathode SOT–23 with the varactor junctions connected in parallel reduces the inductance to approximately 0.9 nH. The inductance of a varactor in the SOD–323 package is approximately 1.5 nH. Maximum Ratings (TA = 25°C) Forward Current: 100 mA Power Dissipation: 250 mW Junction Temperature: 125°C Storage Temperature: –55 to 150°C Operating Temperature: –55 to 125°C Features Industry Standard Outlines: SOD–323 and SOT–23 Packages High “Q” Abrupt and Hyperabrupt Junction Designs Single, Common Anode and Common Cathode Configurations Available for 3 Volt Battery Operated Circuits Priced for High Volume Commercial Applications Shipping Item is shipped when payment is received. We ship First-Class and Priority Mail USPS. All items are shipped from Pekin, Illinois. All items are shipped in boxes to protect the product. Box size can vary, but is generally 5in x 2in x 2in to cut down on shipping costs. No item will include insurance unless requested by the buyer. Buyer is responsible for the insurance charges. I do insure items that are worth 20.00 or more and is usually included in the shipping price. We do combine ship. The first item will be full shipping price, then 10 cents for each item after that. Return Policy Returns are accepted as long as the item is returned by the buyer in same condition it was sent. Buyer is responsible for return shipping charges. Buyer will receive 100% of the item purchase price, minus the shipping charges as long as all of these conditions are met. Store Information Binary Electronics has been pleasing customers since August of 2013. We enjoy what we do and our goal is to provide the best customer service as well as service to every single one of our customers. I appreciate the customers we have had since our opening and have helped us grow not only in the areas mentioned above, but business wise too.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	SMV1299-001
Brand	Alpha Industries
MPN	SMV1299
