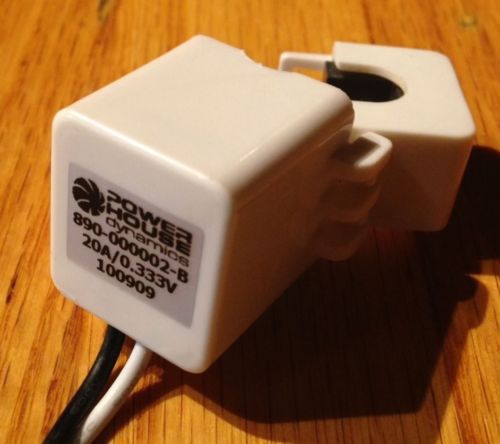

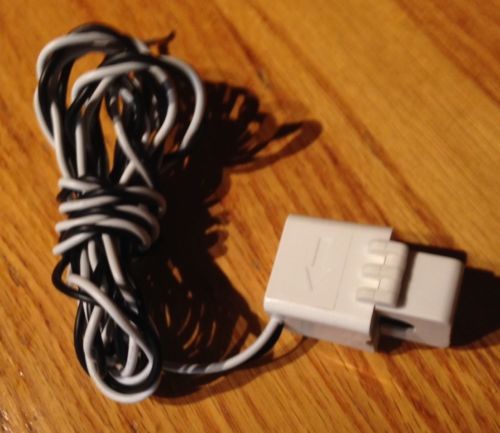

26 X 20amp/0.333v Mini Split Core Current Transformer Zibo Yuanxing Ctsa010

US $87.00

  • Penobscot, Maine, United States
  • Jun 9th
Open on mobile:
QR code

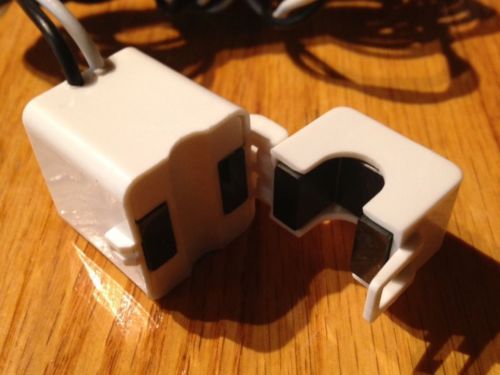

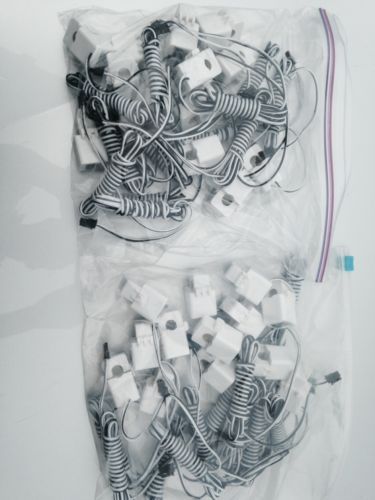

You a buying 26 new x 20 AMP CTSA010 Mini Split-Core Current Transformer. Can also be bought as single units -Contact me for a price quote. The CTSA010 Series of low cost miniature split-core current transformers are designed for fast and easy installation. The split-core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easier and portable current measurement. The relatively small physical size accommodates applications where the installation of the CT will be in physically small spaces.The CTSA family of mini split core current transformers features small physical size, a mechanical hinge for multiple open/ close actions, consistent accuracy performance from CT to CT. Specifications: ? Frequency: 50 to 400Hz. ? Maximum operating voltage: 720VAC. ? Dielectric withstand voltage: 2,500V for 1 minute. ? Dielectric resistance: 100 MOhms @ 500 VDC ? Operating Temperature: -15?C to +60?C. Construction: o Ferrite core material. o Epoxy encapsulated housing. o Case material – Nylon, UL flame retardant rating 94 V-0. ? Leads: 0.61m (2Ft), AWM 1015, Twisted Pair, 0.34mm2 (22AWG), 600V. ? Lead termination: Stripped and tinned. ? ETL Certified (Control Number 4002689) ? RoHS compliant. Performance: ? Accuracy Class: 0.5, 1.0 (IEC 60044-1) ? Accuracy: < 1% ? Phase Shift: < 120 minutes ? Linearity: ±1% from 5% to 130% of rated primary current.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Zibo YUANXING Electronics Co., LTD
Output Voltage : 0.333V
Model CTSA010-020A
Accuracy : ± 1%
Country/Region of Manufacture China

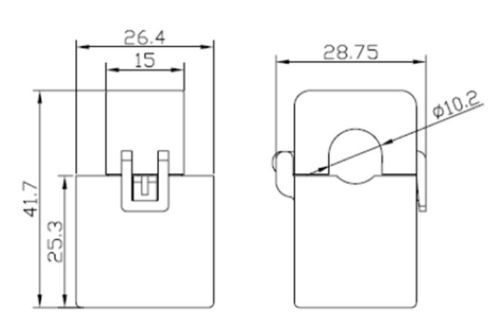

Opening dimensions: 19mm x 19mm
Rated Input Current: 5A~200A
Working Temperature: -25 ?C ~ +70 ?C
