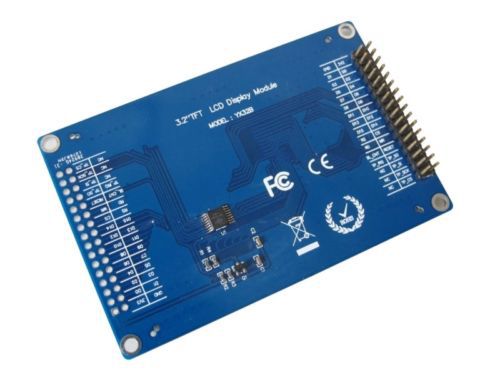

3.2" TFT 320 x 240 LCD Display Module with Touch Panel PCB Adapter, US $19.99 – Picture 0

3.2" TFT 320 x 240 LCD Display Module with Touch Panel PCB Adapter, US $19.99 – Picture 1

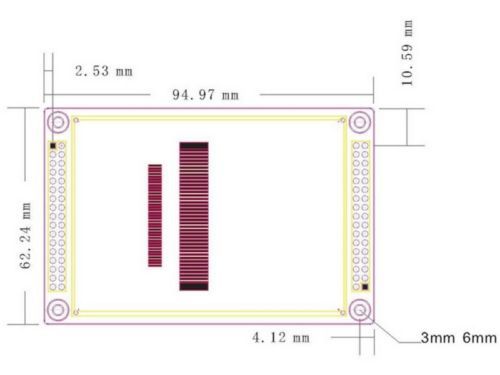

3.2" TFT 320 x 240 LCD Display Module with Touch Panel PCB Adapter, US $19.99 – Picture 2

3.2" Tft 320 X 240 Lcd Display Module With Touch Panel Pcb Adapter

US $19.99

hongkong, Hong Kong
Jan 29th

Open on mobile:
QR code

100% Brand New Key Parameters - Model :YX32B - LCD Controller : SSD1289 - Touch Screen Controller: ADS7843 - LCD Type: TFT - LCD Interface: 16-bit parallel - Touch Screen Interface: SPI - Backlight: LED - Colors: 65536 - Resolution: 320*240 DOTS Interface PIN NO. SYMBOL DESCRIPTION FUNCTION 1 3.3V 3.3V power supply Powered from 3.3V supply, 2 GND Ground GND 3 D0 Data lines D0-D15 4 D1 5 D2 6 D3 7 D4 8 D5 9 D6 10 D7 11 D8 12 D9 13 D10 14 D11 15 D12 16 D13 17 D14 18 D15 19 CS LCD chip select Low active 20 RS Instruction/Data register selection RS = 1 : Instruction Register RS = 0 : Data Register 21 WR Write WR = 0, RD = 1 22 RD Read WR = 1, RD = 0 23 RESET Reset the controller chip Low active 24 BLCNT Backlight brightness adjustment Control the backlight brightness via PWM 25 TP_SO Touch screen SPI data output connects to SPI MISO 26 TP_IRQ Touch screen interrupt Low level while the touch screen detects pressing 27 TP_SI Touch screen data input connects to SPI MOSI 28 TE Dangling Dangling 29 TP_SCK Touch screen SPI clock connects to SPI SCK 30 TE Dangling Dangling 31 TP_CS Touch screen chip select Low active 32 TE Dangling Dangling Package include : 1 x 3.2" TFT 320 x 240 LCD Display Module Payment & Warranty We only accept payments via PayPal. Warranty & Return: 1. If you are unsatisfied, you can return the item in original conditions (New, Never Used), then we give you the refund or replacement. 2. If the item arrives with apparent damage, please contact us and take photo on it, we will can exchange it for you. 3. If you make sure that a product is defective before using it, we will be able to accept it back for exchange or refund. 4. Buyer must pay the return postage for any reason, no exception. and we will pay the resend postage (In case of need to resend). 5. All the item accept return in 30days. We know that sometimes when order problems arise, it can be very frustrating, we are there with you every step of the way to make your experience more pleasant. Please feel free to contact us for solution, when you have any questions. Please don't open case or give Neutral or Negative feedback (including low rating feedback) before contact us, Otherwise you will be on the blacklist in the future. Shipping All items will be shipped within 1~2 business day after payment. Items shipped to United States are via USPS (ePacket shipping). Items shipped to other countries, we offer two shipping methods for you to choose. One is ordinary Air Mail without tracking number (Economy Int'l Shipping), And the other is Registered Air Mail with tracking number (Standard Int'l Shipping). We highly suggest you choose registered mail ,because it can be tracked. Ship to address provided by ebay if no special notes from buyer . Delivery Time: Normally, It Takes About 10-30 Business Days to Arrival for most Countries. *5-14 days to USA. *10-25 days to Australia / Canada. *14-30 days to major cities in Europe . *4 - 8 weeks to Italy , Brazil ,Russia. Please contact us if you have not receive the item over 30 business days. However, it may delay due to industrial strike action, severe weather, custom reasons or peak seasons, such as Christmas/New Year Holidays. eBay Cross Border Trade powered by Channel Effect

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	YX32B
Country of Manufacture	China
