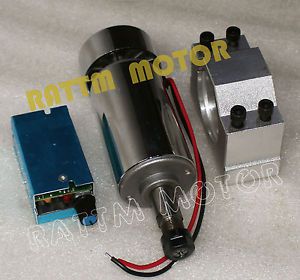

300W CNC Air Cooled DC Spindle Motor ER11 12-48V+Mount/Bracket+Speed regulator, US $250 – Picture 0

300W CNC Air Cooled DC Spindle Motor ER11 12-48V+Mount/Bracket+Speed regulator, US $250 – Picture 1

300w Cnc Air Cooled Dc Spindle Motor Er11 12-48v+mount/bracket+speed Regulator

US $250

Changzhou,Jiangsu, China
Nov 13th

Open on mobile:
QR code

Package include: 1 x 300w spindle 1 x Speed regulator 1 x 52mm cast aluminium bracket 1. Spindle Motor: Work voltage: 12-48VDC Rotation speed: 2000-12000r/min Power: 300W Torque: 230mN.m Insulation resistance:>2Megohm Dielectric strength:400V Motor Length: 175mm Diameter: 52mm Axis collet Length: 48mm Diameter of Axis Collect holder: 16mm Repeat accuracy: 0.01-0.05mm ER11 collect: 3.175 2. DC Speed regulator for 300w spindle motor 1) Can support AC and DC input. There is no power supply polarity problems. 2) Ultra-high voltage scope. DC support 15-160V Input, AC support 12-110V input. 3) Large radiator with mounting holes. 4) High power control, support 10A current. 5) Except the on-board PWM speed regulation, it also support outward PWM signal input to achieve speed regulation. The requirement for outward PWM signal input speed regulation: Accumulator 3.5-12V VPP, frequency 1K-10KHZ. This feature is very suitable for spindle speed regulation via MACH3 . 6) Supports a wide range of motors. Basically all on the market into a letter drive DC motor speed control. As long as the DC resistance of the motor is greater than 2 ohms DC resistance can be. Special attention, the driver can not be less than 2 ohms DC resistance of DC motor to speed control. 7) Equipped with a fuse, better protection performance. 8) Installed with power led for easy operation. 3. 52mm cast aluminium bracket Shipping Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately We ship to worldwide,but If your country’s custom is strict, please contact us before you bid to check detail and confirmed. Delievry time( Airmail Packets) USA,UK,Candana,Australia,New Zealand,Asia 10-15 business days EU(Germany,France,Spain,etc) 15-10 business days South America,other countries 20-25 business days When weight less than 2kgs,we usually ship by China/Hongkong/Singapore Air Post which will take round 10-15 business days. some areas may be later due to variation of postal service in different areas,if above 2kgs we can ship by DHL/UPS/EMS which need confirm by us All items will be shipped within 1-3 business days upon receipt of payment Payment We accept paypal payment,all Paypal must be confirmed(shipping and billing address must match and correct, ,and telephone number msut be offered for delivery) Payment must be made within 48hours of the auction end time Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility. Problem&Feedback Please give us the opportunityto resolve any problem when you have,we concern your problem and we will try our best to resolve it. We are a new member in ebay now,and need understand both of sides Pls email us before you want to leave any negative feedback. Refund When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos,after confirm we will refund your money,but the delivery charge paid by buyer. Contact us Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again Customer’s satisfaction is very important to us. On Nov-13-16 at 05:44:05 PST, seller added the following information:
