3m Dynatel 2273 Cable Pipe Fault Locator

US $1,995.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

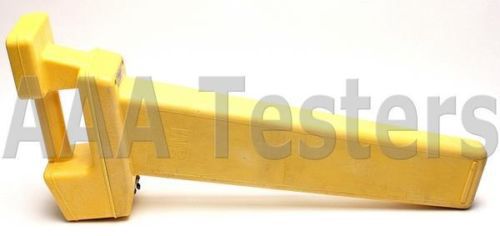

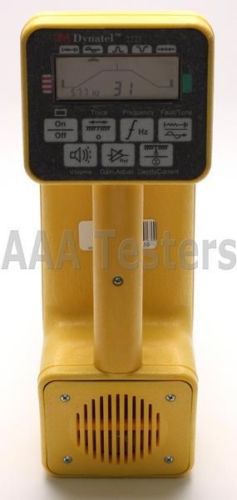

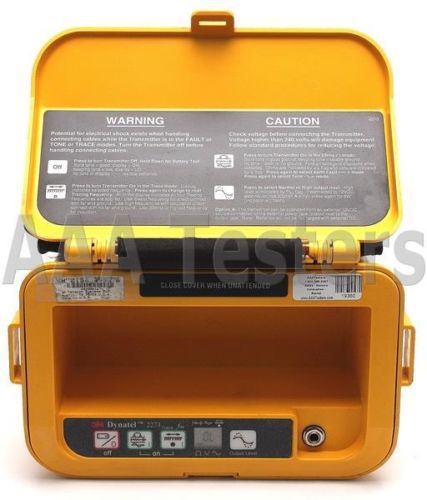

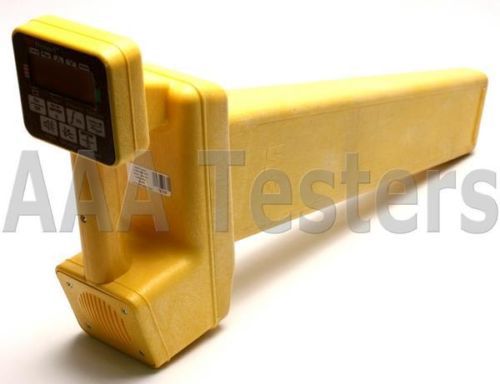

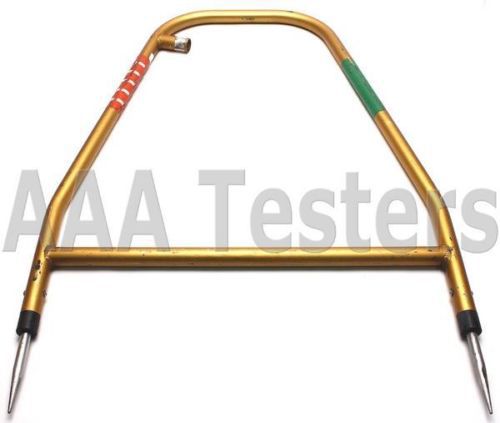

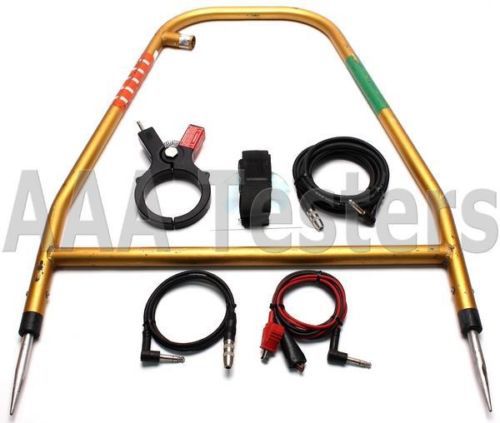

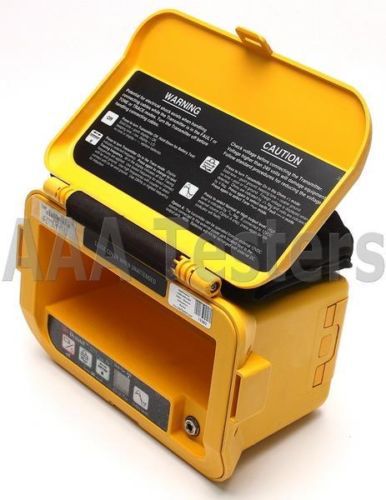

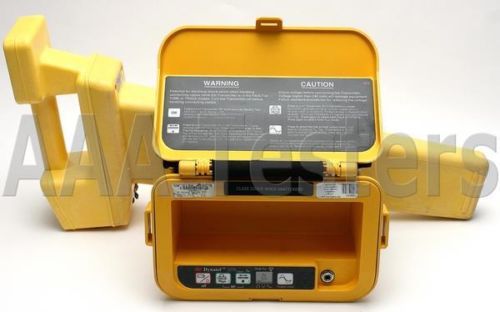

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: 3M Dynatel 2273 Cable Locator (BC# 19360) 3M Dynatel 2273 Pipe Locator (BC# 19398) 3M Dynatel A-Frame (BC# 19364) (2) 3001 Dyna Coupler Clamp Cables 3M Dynatel Dyna Coupler Clamp 3M Dynatel Alligator Test Lead User Manual On CD-ROM Integrated Hard Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! 3M Dynatel 2273 Cable/Pipe and Fault Locator Locate Conductor Faults & Trace Underground Cables & Pipes Includes Integrated Hard Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Measure and pinpoint sheath and conductor faults, locate cable path/depth quickly and easily with this lightweight, easy-to-handle unit The 3M™ Dynatel™ 2273 Cable/Fault Locator is a microprocessor-based system that incorporates advance digital signal processing techniques to quickly and efficiently locate sheath (earth return) faults and trace the path of underground cables, both copper and fiber optic (with metallic trace wire). Lightweight, compact and wellbalanced, the 2273 cable/fault locator accurately: Locates cable path Measures cable or sonde depth with the push of a button Measures signal current in the cable Pinpoints sheath faults and cable breaks Discriminates between light and heavy faults Identifies cable and cable pairs Tones shorts and grounds in aerial cable Identifies cable pairs through wet sections Locates energized power cable The 2273 cable/fault locator provides accurate cable or sonde depth measurements, giving a digital readout in inches, feet and inches, or centimeters (user-selectable). Four modes of operation for accurate locates, even in congested areas For cable path locating, the Dynatel 2273 receiver uses one of four user-selected locating modes — dual peak, dual null, differential or special peak (which increases the sensitivity of the receiver for tracing over longer distances). The mode is selected depending on which is most effective under the locating conditions. The receiver includes four volume settings, including a special “expander” function that makes peaks and nulls more pronounced. The expander feature enhances the amplitude difference between two conductors carrying the same signal, making the unit extremely accurate, even in congested areas. A headphone jack is also included. Precisely locates faults The 2273 cable/fault locator can precisely locate sheath (earth return) faults on both short and long cable sections. The unit sends a trace signal simultaneously with a faultlocate signal, allowing the operator to use the cable-locate function when locating sheath faults in long cable sections. Sheath (earth return) fault strength is indicated on the receiver LCD display, allowing minor faults to be ignored, if desired. A simple, easy-to-use system The Dynatel 2273 cable/fault locator is easy to operate and requires very little training. Digital liquid crystal display (LCD) readout and push-button operation make the unit easy to understand, for more precise locates. A “memory” feature remembers operator set-up from previous use. The system consists of three basic components: Transmitter with built-in ohmmeter, which also senses and measures the presence of foreign voltage, and tests the continuity of the circuit. One-piece hand-held receiver with bar graph that indicates received signal and proximity to the cable. Earth contact frame that is color-coded to correspond with indications from the receiver directing the operator toward the fault. The 2273 cable/fault locator uses four active trace frequencies — 577 Hz, 8 kHz, 33 kHz and 200 kHz — which can be used individually or simultaneously to compensate for varying field conditions. It also incorporates one passive trace frequency — 50/60 Hz power (userselectable) — which does not require the use of the transmitter. Both the receiver and the transmitter feature a self-test routine which is executed each time the unit is turned on. A power-up battery test indicates the battery level. Both components are constructed of heavy-duty materials designed to withstand typical field use. Features Benefits Transmitter Four operator-selectable frequencies Optimizes unit performance in varying conditions Simultaneous signals Enables receiver to verify cable location Fault-locate/cable-locate signals applied simultaneously Enables receiver to verify cable location while fault locating Built-in ohmmeter with voltage sensing/measuring capability Displays earth fault resistance; confirms far-end grounds and shield continuity Three signal application methods (direct connect, coupler, induction) Flexibility under varying plant conditions Auto load matching Automatic adjustment of output voltage to maximize signal High and normal output level High output level for extreme distance locates and other varying cable conditions Audible indication of hazardous voltage in ohms mode Warns operator of potentially dangerous situation Can connect to energized power cables up to 240 Vac Prevents inadvertent damage to unit; operates while attached to live circuits Receiver Peak and null modes Verify cable location Differential mode Indicates direction to cable Push-button digital depth readout (of cable or sonde) in inches, feet and inches, or centimeters Easy, quick and accurate depth measurements; no conversion table required for sonde depth measurements Measures signal current in cable Helps identify target cable regardless of depth Visual and audible cable locates Ensure accuracy under varying field conditions Digital fault strength indicator Operator can differentiate between light and severe faults Coupler jack Pair/cable identification Graphic display Operator can distinguish between target cable and other cables in congested areas Expander function Improves sensitivity of audible and visual response 50/60 Hz passive power mode Locates energized power cables using receiver only Compatible with 2205/2206 marker locating accessory Allows unit to pinpoint location of buried EMS markers Physical Specifications Size Transmitter 6.75 H x 11.25" W x 7.75" D (17.2 cm x 28.6 cm x 19.7 cm) " Receiver 25.5 H x 3.75" W x 10.75" D (64.8 cm x 9.5 cm x 27.3 cm) " Weight Transmitter 5.88 lbs. (2.4 kg) Receiver 3.98 lbs. (1.8 kg) Shipping 20.59 lbs. (9.3 kg) Environmental Specifications Operating temperature -4° to 122°F (-20° to 50°C) Storage temperature -40° to 158°F (-40° to 70°C) Electrical Specifications Receiver Frequencies Trace mode Tone mode Active: 577 Hz, 8 kHz, 33 kHz, 200 kHz Passive: Power — 50/60 Hz, user-selectable 577 Hz and 200 kHz pulsed at 8 Hz Depth Range: 0 to 15’ (0 to 4.5 m) Accuracy: ±10% ±1 digit for 0 to 60 (0 to 1.5 m) ±15% for 60 to 180" (1.5 to 4.5 m) " Power Six alkaline “AA” (LR6) cells Typical battery life 50 hours Transmitter Output frequencies Trace mode Sheath fault mode Tone mode Induction mode 577 Hz, 8 kHz, 33 kHz, 200 kHz 4/8 Hz for sheath fault; 577 Hz and 33 kHz for tracing 577 Hz and 200 kHz pulsed at 8 Hz 200 kHz Output voltage (maximum) Sheath fault Trace Tone 75 Vrms 40 Vrms Normal setting: 10 Vrms High setting: 75 Vrms @ 577 Hz; 40 Vrms @ 200 kHz Output power Normal setting: Limited to 0.5 W High setting: Limited to 3 W for frequencies < 200 kHz and 200 kHz in induction mode; 1 W for 200 kHz (non-induction) Output protection 240 Vrms Power Six alkaline “C” (LR14) cells Typical battery life Normal output level: 50 hours High output level: 10 hours Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. Shipping Rate Calculator Enter your ZIP/POSTAL code: Select your COUNTRY: United States Canada United Kingdom Afghanistan Albania Algeria American Samoa Andorra Angola Anguilla Antigua and Barbuda Argentina Armenia Aruba Australia Austria Azerbaijan Republic Bahamas Bahrain Bangladesh Barbados Belarus Belgium Belize Benin Bermuda Bhutan Bolivia Bosnia and Herzegovina Botswana Brazil British Virgin Islands Brunei Darussalam Bulgaria Burkina Faso Burma (Myanmar) Burundi Cambodia Cameroon Cape Verde Cayman Islands Central African Republic Chad Chile China Christmas Island Cocos (Keeling) Islands Colombia Comoros Congo, Democratic Republic of the Congo, Republic of the Cook Islands Costa Rica Cote d Ivoire (Ivory Coast) Croatia, Democratic Republic of the Cuba Cyprus Czech Republic Denmark Djibouti Dominica Dominican Republic Ecuador Egypt El Salvador Equatorial Guinea Eritrea Estonia Ethiopia Falkland Islands (Islas Makvinas) Fiji Finland France French Guiana French Polynesia Gabon Republic Gambia Georgia Germany Ghana Gibraltar Greece Greenland Grenada Guadeloupe Guam Guatemala Guernsey Guinea Guinea-Bissau Guyana Haiti Honduras Hong Kong Hungary Iceland India Indonesia Iran Iraq Ireland Israel Italy Jamaica Japan Jersey Jordan Kazakhstan Kenya Kiribati Kuwait Kyrgyzstan Laos Latvia Lebanon Lesotho Liberia Libya Liechtenstein Lithuania Local State/Province Luxembourg Macau Macedonia Madagascar Malawi Malaysia Maldives Mali Malta Marshall Islands Martinique Mauritania Mauritius Mayotte Mexico Micronesia, Federated States of Moldova Monaco Mongolia Montenegro Montserrat Morocco Mozambique Namibia Nauru Nepal Netherlands Netherlands Antilles New Caledonia New Zealand Nicaragua Niger Nigeria Niue North Korea Norway Oman Other Pakistan Palau Panama Papua New Guinea Paraguay Peru Philippines Poland Portugal Puerto Rico Qatar Romania Russian Federation Rwanda Saint Helena Saint Kitts Saint Lucia Saint Pierre and Miquelon Saint Vincent and the Grenadines Samoa San Marino Saudi Arabia Senegal Serbia, Republic Of Seychelles Sierra Leone Singapore Slovakia Slovenia Solomon Islands Somalia South Africa South Korea Spain Sri Lanka Sudan Suriname Svalbard Swaziland Sweden Switzerland Syria Taiwan Tajikistan Tanzania Thailand Togo Tonga Trinidad and Tobago Tunisia Turkey Turkmenistan Turks and Caicos Islands Tuvalu Uganda Ukraine United Arab Emirates Uruguay Uzbekistan Vanuatu Vatican City State Venezuela Vietnam Virgin Islands (U.S.) Wallis and Futuna Western Sahara Yemen Zambia Zimbabwe We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Manage all your eBay listings with Kyozou eBay Listing Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	3M
Model	2273
