3m Dynatel 965dsp Subscriber Loop Analyzer Ver 7.00.9 W/tdr

US $1100

Howell, New Jersey, United States
Jan 29th

Open on mobile:
QR code

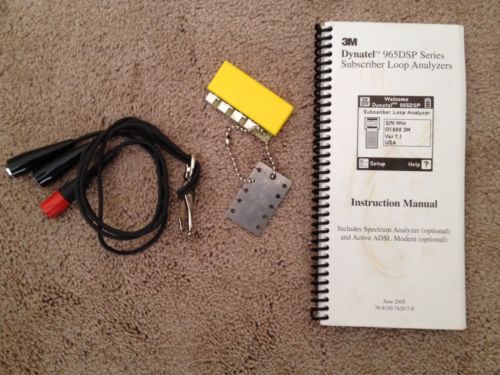

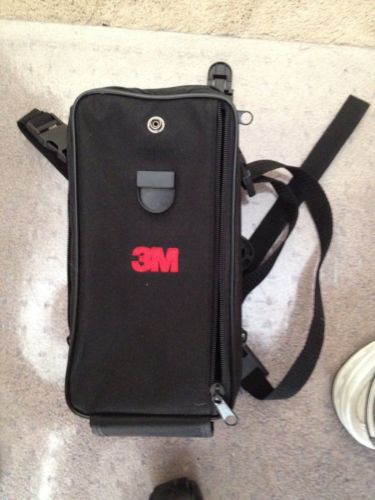

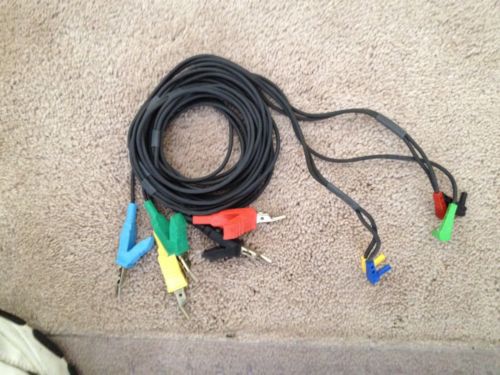

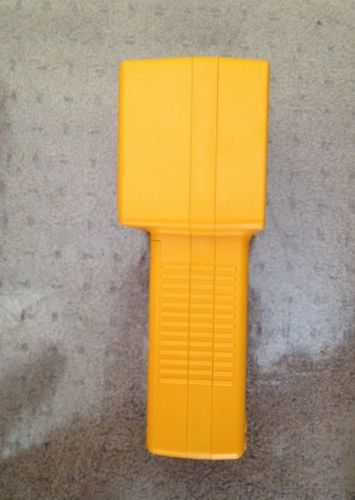

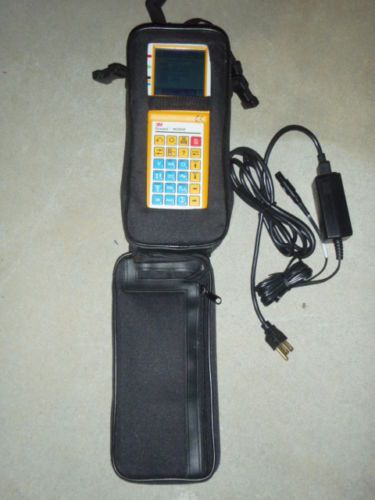

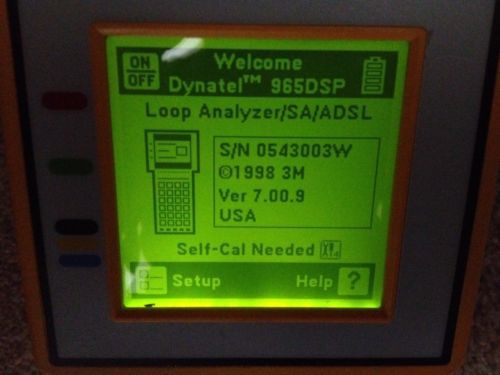

3M Dynatel 965DSP Subscriber Loop Analyzer Ver 7 w/TDR This Item is in brand new condition with no visible signs of wear and is fully functional. Unit includes the 965DSP, leads, rechargeable battery, case ,charger, instructions , self test board, shorting strap , and wire size gauge. The unit is Ver 7.00.9 and has ISDN and TDR functions. Factory specifications below: No international shipping - US customers only, Payment due at close of auction. Thanks for looking! 3M product data sheet Complete testing of POTS and ISDN subscriber loops The 3M™ Dynatel™ 965DSP Subscriber Loop Analyzer is a microprocessor-controlled integrated test set that provides full-featured POTS and fundamental ISDN testing. The functions include fault location and repair verification on twisted-pair, quad and coaxial cable (utilizing capacitance bridge, resistance bridge and Time Domain Reflectometer (TDR) functions). The Dynatel 965DSP subscriber loop analyzer executes a wide range of individual tests, or performs automatic test routines as specified by the user to categorize and sectionalize problems. Specific tests and measurements performed by the unit include: · Voltage – detects and measures the presence of exchange or foreign DC or AC voltages. · Tone – provides a test tone for conductor identification; user-selected tones from 1 to 40kHz for transmission measurements. · Current – measures DC loop current. · Ohms – measures conductor and insulation resistance up to 1000 megohms. · TDR – full-featured TDR with user-selectable pulse widths, length, gain zoom, filter and Vp. Four modes of operation: Single trace – provides graphical representation of events on a pair. Dual trace – allows active comparison of two traces. Differential – displays difference between two circuits. Crosstalk – displays the crosstalk from one pair to the other. · Resistance fault location – displays distance to fault. · Opens – locates opens at distances up to 100,000 ft. (30 km). · Splits – locates splits on paired cable. · Ringer count – counts the number of ringers on a particular loop. · Load coil count – indicates the presence of load coils in a loop circuit. · Wideband loss – loss measurements to 200 kHz for pre-qualifying ISDN and HDSL. · Loss – measures voice band loss. · Noise – measures noise metallic and noise to ground in dBrnc. · Longitudinal balance – provides active measurement of line balance. Flexible, practical features The 965DSP subscriber loop analyzer is designed for functionality and ease of use. Features of the unit include: · IR port - infrared port for downloading future software programs. · Self-calibration – internal instrument calibration and setup procedures. · Graphical user interface – user-friendly, icon-based display of test results. · Replaceable five color-coded banana jacks for test connections. · HELP function – an internal help menu provides information as needed during operation. · Telephone – internal telephone or “talk set.” · Rechargeable nickel metal hydride batteries – with battery charger, plus alkaline battery holder. · Modular hardware and software design – for easy upgrades, investment protection. · Backlit high resolution/high contrast LCD display. Rugged, weatherproof design The hand-held 965DSP test set is housed in a lightweight, ergonomically designed case for portability and ease of handling. The unit is weather-resistant and weighs only 3.3 pounds (1.5 kg). Physical Specifications Size 10”H x 4”W x 2.5”D (25cm x 10cm x 6cm) Net Weight 3.3lbs. w/Battery & Soft Case (1.5Kg) Material High Impact Grad ABS Environmental Specifications Operating Temperature 0° to 140°F (-18 to 60°C) Storage Temperature -40° to 165°F (-40 to 75°C) Humidity 0-95%, non-condensing Environmental Specifications Main Functions Range Resolution Accuracy Voltage (DC) 0 to 99.9 V 100 to 300 V 0.1 V 1 V 1% +/- 0.5 V 3% Voltage (AC) 0 to 99.9 V 100 to 250 V 0.1 V 1V 1% +/- 0.5 V 3% Current 0 to 59.9 mA 60 to 110 mA 0.1 mA 0.1 mA 1% +/- 0.5 V 2% Resistance (DC) with CO voltage 0 to 9999W 0 to 9999 W 10 K to 99.9 kW 100 k to 999 kW 1 M to 9.9 MW 10 M to 99 MW 100 M to 990 MW 1 W 1 W 0.1 kW 1 k W 0.1 MW 1 MW 10 MW 1% +/- 5 W 1% +/- 50 W 1% 3% 3% 5% 10% Opens (no noise) 0 to 3,000 ft 3,000 to 10,000 ft 10,000 ft to 50,000 ft 50,000 ft to 100,000 ft 1 ft 1 ft 10 ft 100 ft 1% +/- 3 ft 3% 5% 10% RFL Fault Range Resistance to Fault (no noise) 0 to 20 MW 0 to 99.99 W 100 to 999.9 W 1 kW to 7 kW _ 0.01 W 0.1 W 1.0 W - 0.1% of RTS +/- 0.01 W 0.2% of RTS +/- 0.01 W 1.0% of RTS +/- 0.01 W Loss (& frequency -40 to +10 dBm, 20 k to 200 kHz 1 dB, 100 Hz 2 dB, 0.1 kHz Wideband loss -40 to +10 dBm, 20 k to 200 kHz 1 dB, 100 Hz 2 dB, 0.1 kHz Noise metallic 0 to 50 dBrnc (-90 to -40 dBm0p) 1 dB 2 dB Longitudinal balance 62 to 40 dB 1 dB 2 dB Tone output ID User Defined User Defined ISDN 200 to 1000 Hz, fixed level 200 to 9995 Hz, -20 to +1 dBm 10 k to 19.99 kHz, -20 to +1 dBm 40 kHz, +6 dBm fixed level 1 Hz 1 Hz, 0.1 dB 10 Hz, 1 dB - 1% 1% Hz, 0.2 dB 2% Hz, 1 dB 2%, 2 dB Dial Mode DTMF, Pulse Standard Standard TDR Ranges Pulse width Velocity Input Modes 3 ft–300 ft, 20 ft–1,000 ft, 50 ft–3,000 ft, 150 ft. 10,000 ft, 450 ft–30,000 ft (0–100 m, 5–300 m, 15–1,000m, 45–3,000 m, 140–10,000 m) 5 nS, 34 nS, 235 nS, 1600 nS 0.50 to 0.99 (150 to 299 uS/m) Single trace, dual trace, differential, memory, crosstalk 1 ft (1 m) Fixed values 0.01 (1 uS/m) - 0.6% range - - - ISDN Link test Error test Active/inactive Near-end & far-end block errors - 1 error - 1 error Auto Same specifications as full test See Above See Above Kupfmuller Test Loop Res 0 to 1K Ohms - - Fault Res 10K Ohms to 10M Ohms - - Fault ratio (Fault Res) > twice (Fault Res) - - Res Fault 0 to 99 Ohms 100 to 999 Ohms 0.01 Ohms 0.1 Ohms 5% 5% Material

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	3M
Model	965DSP Ver 7 w/TDR
