4pcs 23 Stepper Motor 425oz/112mm/3a & Driver Dm542 Cnc Cuting Shipping To Us

US $350.99

??, ???, China
Jan 29th

Open on mobile:
QR code

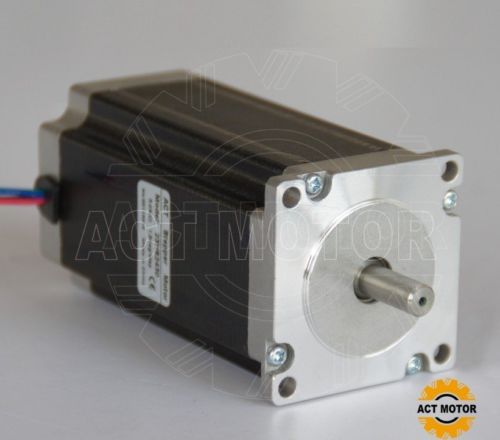

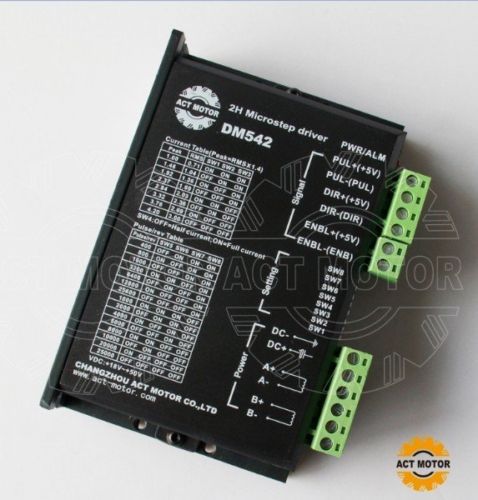

Please contact me first before buying the products: what's in box? 4x 23HS2430, 425oz-in /112mm/ 3A with single shaft ( if you need dual shaft ,email me ,otherwise we will send single shaft directly) 4xDM542 18-50VDC/peak current 4.2A/128MICROSTEPS Manual of 2-phase hybrid stepper motor driver DM542 Introduction: DM542 is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 18VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DM542 run under high speed is also significantly higher than the other two-phase driver, what is more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, Computer embroider machine, packing machines and so on. Features: l High performance, low price l Average current control, 2-phase sinusoidal output current drive l Supply voltage from 18VDC to 50VDC l Opto-isolated signal I/O l Overvoltage, under voltage, overcorrect, phase short circuit protection l 15 channels subdivision and automatic idle-current reduction l 8 channels output phase current setting l Offline command input terminal l Motor torque is related with speed, but not related with step/revolution l High start speed l High hording torque under high speed Electrical specification: Input voltage 24-50VDC Input current < 4A Output current 1.0A~4.2A Consumption Consumption:80W; Internal Insurance:6A Temperature Working Temperature -10~45oc; Stocking temperature -40oc~70oc Humidity Not condensation, no water droplets gas Prohibition of combustible gases and conductive dust weight 200G The first three bits (SW 1, 2, 3)of the DIP switch are used to set the dynamic current. Select a setting Closest to your motor is required current Output current (A) SW1 SW2 SW3 PEAK RMS ON ON ON 1.00 0.71 OFF ON ON 1.46 1.04 ON OFF ON 1.91 1.36 OFF OFF ON 2.37 1.69 ON ON OFF 2.84 2.03 OFF ON OFF 3.31 2.36 ON OFF OFF 3.76 2.69 OFF OFF OFF 4.20 3.00 4) Semi-flow function: Semi-flow function is that there is not step pulse after 500 ms, the driver output current automatically reduced to 70% of rated output current, which is used to prevent motor heat. 4. Power connections (1)+ v ,GND:Power Supply. +V: Power supply, 16~50 VDC, Including voltage fluctuation and EMF voltage. The max current is 5A. (2) A+ A- B+ B-:Connecting 2 phase stepper motors. The driver & 2-phase hybrid stepping motor use four-wire connection, the motor can be connected in parallel & series bipolar. As for bipolar connection, it is higher performance with high-speed, but the current of driver is larger (it is 1.73 times more than the motor winding current). Connecting in series, the driver 's current is equal to the motor winding one. we ship worldwide! Welcome friends to "motor home", wish you a happy shopping, working smoothly. Company Website:www.act-motor.com.cn Skype:jixiaodan713 Email:diana@act-motor.com ICQ:689387764

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ACT
Country/Region of Manufacture	United States
Model	23HS2430&DM420
