50 Pcs Imp706sesa, Supervisor Circuits Monitor Power-supply And Battery Voltage

US $31.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

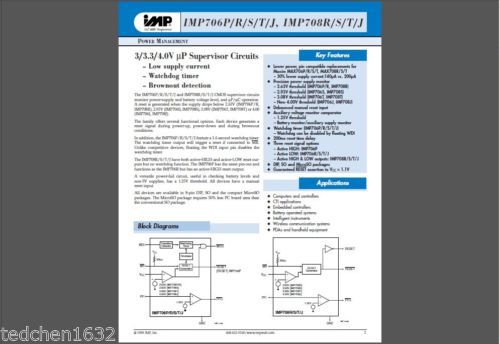

3/3..3/4..0V ?P Superrviissorr Ciirrccuiittss – Low ssupplly currentt – Wattchdog ttiimer – Brownoutt dettecttiion The IMP706P/R/S/T/J and IMP708R/S/T/J CMOS supervisor circuits monitor power-supply and battery voltage level, and ?P/?C operation. A reset is generated when the supply drops below 2.63V (IMP706P/R, IMP708R), 2.93V (IMP706S, IMP708S), 3.08V (IMP706T, IMP708T) or 4.00 (IMP706J, IMP708J). The family offers several functional options. Each device generates a reset signal during power-up, power-down and during brownout conditions. In addition, the IMP706P/R/S/T/J feature a 1.6 second watchdog timer. The watchdog timer output will trigger a reset if connected to MR. Unlike competitive devices, floating the WDI input pin disables the watchdog timer. The IMP708R/S/T/J have both active-HIGH and active-LOW reset outputs but no watchdog function. The IMP706P has the same pin-out and functions as the IMP706R but has an active-HIGH reset output. A versatile power-fail circuit, useful in checking battery levels and non-5V supplies, has a 1.25V threshold. All devices have a manual reset input. All devices are available in 8-pin DIP, SO and the compact MicroSO packages. The MicroSO package requires 50% less PC board area than the conventional SO package. Lower power, pin compatible replacements for Maxim MAX706P/R/S/T, MAX708R/S/T – 30% lower supply current:140?A vs. 200?A Precision power supply monitor – 2.63V threshold (IMP706P/R, IMP708R) – 2.93V threshold (IMP706S, IMP708S) – 3.08V threshold (IMP706T, IMP708T) – New 4.00V threshold (IMP706J, IMP708J) Debounced manual reset input Auxiliary voltage monitor comparator – 1.25V threshold – Battery monitor/auxiliary supply monitor Watchdog timer (IMP706P/R/S/T/J) – Watchdog can be disabled by floating WDI 200ms reset time delay Three reset signal options – Active HIGH: IMP706P – Active LOW: IMP706R/S/T/J – Active HIGH & LOW outputs: IMP708R/S/T/J DIP, SO and MicroSO packages Guaranteed RESET assertion to VCC = 1.1V Computers and controllers CTI applications Embedded controllers Battery operated systems Intelligent instruments Wireless communication systems PDAs and handheld equipment

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	IMP
IC Package	SOIC8_39MM
Model	GoJGo.com-10608
Category	POWER MANAGEMENT
MPN	IMP706SESA
