5pcs 84X48 Nokia 5110 LCD Module blue backlight with adapter PCB for Arduino new, US $390 – Picture 0

5pcs 84X48 Nokia 5110 LCD Module blue backlight with adapter PCB for Arduino new, US $390 – Picture 1

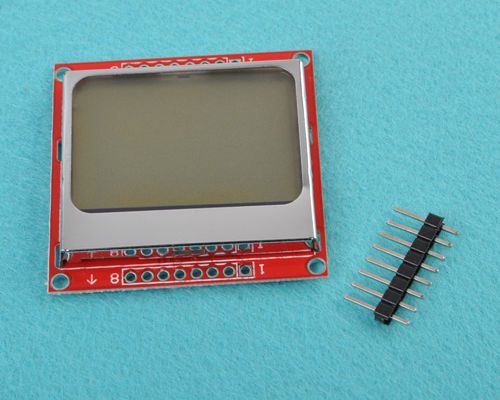

5pcs 84x48 Nokia 5110 Lcd Module Blue Backlight With Adapter Pcb For Arduino New

US $390

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Recommendations For You 16x2 HD44780 Character Display Module blacklit LCD 3.2" TFT LCD Module Display + Touch Panel + PCB adapter Arduino IIC/I2C/TWI 1602 Serial LCD Module Display Blue 7" TFT LCD Module Display + Touch Panel + PCB adapter 240x64 LCD Module Dot Matrix for Arduino with Blue LED Backlit 16x2 HD44780 Character Display blue blacklit LCD Visit my eBay Store:ChipWorld Product Name: 5PCS PCB LCD 84X48 84*48 Nokia 5110 Module with blue backlight adapter More Items In Our Store,Click Here! SKU: 1444*5 Parsts No. : Package: Brand: Quantity: 5 Note: 1. "LIGHT" linked with GND, the backlight to be lit. 2. Need you to compress the screen and PCB tighter, might got loose after the delivery. 3 Use a 3.3V controller, otherwise the display could be quite vague. To work as a display with an Arduino, this module needs a 100 ohm resistor on the Vcc pin to drop the voltage below 3.3v. With the resistor in place, it works perfectly and with good contrast. 1.Parameters 1>.Power supply voltage:2.7V-3.3V 2>.Data interface level:2.7-3.3V 3>.Backlight power supply voltage:highest 3.3V 4>.Module size:43.6mm x 43.1mm(width X height) 5>.Installation diameter:2mm 2.Connection 1>.RST--------- reset 2>.CE---------- chip selection 3>.DC---------- data/commands choice 4>.DIN--------- serial data line 5>.CLK--------- serial Clock Speed 6>.3.3V-------- VCC 7>.LIGHT------- backlight control terminal 8>.GND--------- power negative 3.Features: 1>. 84 X 84 dot matrix LCD,can show 4 lines of characters 2>. Use serial interface communicate with the master processor,the number of interface signal line reduced greatly, only 8 signal lines including power and GND.Support different types of MCU,such as the arduino,AVR,PIC,STM32,STC MSP430 and so on.Transfer rate up to 4Mbps,can full speed write display data without waiting time. 3>. Can use the conductive glue to connect the module with the printed board,without connecting cable.The metal hooks on the module can fix the module on the printed board,which is very easy to install and replace. 4>. LCD controller/driver chip has been bound to LCD chip,the volume of LCD is small 5>. Low power supply,the working current in normal situation is lower than 200?A,and has power-down mode Data download Below is a DIY cellphone photo shared by others on Arduino blog^_^ Note: If to connect 3.3V with LIGHT pin, the backlight will turn off. And this pin could be connected largest 3.3V, if higher than this voltage, the backlight could have been damaged. LIGHT is the negative pole of the backlight LED, therefore, only if you connect it to GND, the backlight will be lit. Dots Matrix LCD Display Modules TFT LCD Display Series Character Display LCD Modules IIC LCD Display Series MCU Chips 1. ATMEl AVR MCU 2 PIC MCU 3. STM32 MCU 4. C8051F 5. MSP430 MCU 6. 51 STC MCU Maybe you request 10pcs NEW 40Pin 1*40 2.54mm 20mm Long Header Pin Male Breakable Pin Header 65pcs Breadboard tie line Wire Breadboad + MB-102 Solderless breadBoard PCB Test 1PCS 12864 Blue Backlight 128X64 Dots Graphic Matrix LCD Module Display LCM GOOD 1PCS Board MB102 Breadboard Power Supply Module 3.3V/5V For Arduino good 84*48 LCD Module White backlight adapter pcb Nokia 5110 LCD new $ 2.43 + free shipping $ 6.25 + free shipping $ 9.47 + free shipping $ 2.69 +free shipping $ 3.16 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkFrog Analytics
