5PCS MAX7219 Dot Matrix MCU Control Display Module DIY Kit, US $13.43 – Picture 0

5PCS MAX7219 Dot Matrix MCU Control Display Module DIY Kit, US $13.43 – Picture 1

5PCS MAX7219 Dot Matrix MCU Control Display Module DIY Kit, US $13.43 – Picture 2

5pcs Max7219 Dot Matrix Mcu Control Display Module Diy Kit

US $13.43

Shenzhen, China
Jan 29th

Open on mobile:
QR code

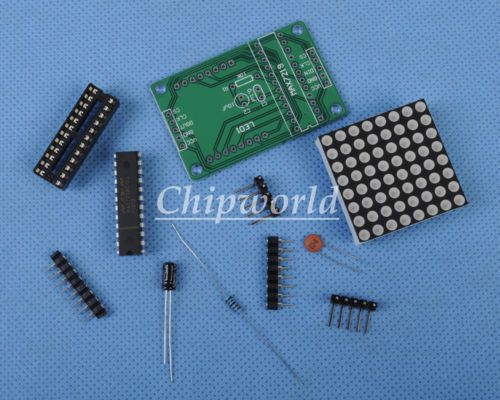

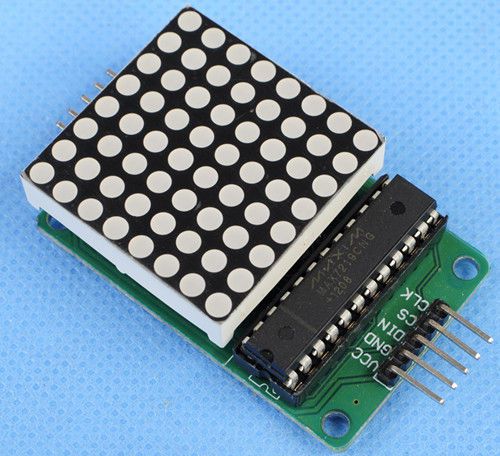

Recommendations For You 4x4 Matrix Array 16 Membrane Switch Keypad Keyboard NE555+CD4017 Light Water Electronic suite DIY Kits NEW DIY Kits C51 Electronic Clock Suite Electronic NEW 4 x3 Matrix Array Membrane Switch Keyboard 12 Key LM317 5V-35V to 1.25V-30V DIY Kit AC/DC Power Supply DIY Kits 38 LEDs Energy-Saving Lamps Suite Electronic suite Visit my eBay Store:ChipWorld Product Name: 5pcs new MAX7219 Dot matrix module MCU control Display module for Arduino DIY kit More Items In Our Store,Click Here! SKU: 1719*5 Parsts No. : Package: Brand: Quantity: 5 Module parameters: 1.A single module can drive an 8 * 8 common cathode lattice 2.Module Operating voltage: 5V. 3.Module size: 5 cm long X 3.2 cm wide X 1.5 cm high 4.With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed 5.Module with input and output interfaces, supports multiple modules cascade Wiring instructions: 1.The module left as an input port to the output port on the right. 2.The control of a single module, simply input port to the CPU 3.Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ... 51 MCU, for example: VCC ? 5V GND ? GND DIN ? P22 CS ? P21 CLK ? P20 Package: DIY kits 1x PCB board 2x 5P bent pin single row pin 1x 24P IC socket The 1x Inline MAX7219 chip 1x 10uF electrolytic capacitor 1x 0.1uF ceramic capacitor 1x 10K resistor 2 Block 2x 8P round hole (pitch 2.54mm) 1x 3mm 8 * 8 common cathode red dot Note: 1.VCC and GND is not reversed, it would burn the chip! 2.When the 51 microcontroller P0 port control, must be connected to the pull-up resistor, it is recommended that the resistance of 4.7K--10K. 3.Please lattice into the hole first seat, and then inserted into the round hole Block PCB board welding. Lattice word side facing the surface order from left to right pin 123456. PCB board 1 foot square pad! 4.Electrolytic capacitors long-legged as positive, negative short legs; ceramic capacitor without the positive and negative points. For more quantity,please contact us. My skype:ada-yu2013 Data download Please right-click play to start the video below. Maybe you request C51 Electronic Clock/Electronic Production Suite/4 Bits/DIY Kits new LED Cycle Lamp Suite/DIY Kits/LED Flashlight/Electronic Production new LM3915/Level Indicating/Electronic Production Suite/DIY Kits new 16 Sound Box/16 Music Box/electronic production/DIY Kits new C51/AVR MCU development board DIY learning board kit Parts and components new $ 6.00 + free shipping $ 4.66 + free shipping $ 6.98 + free shipping $4.70 +free shipping $ 6.85 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkfrog terapeak i000000 inkFrog Analytics
