6.3 Ghz Pll Dielectric Resonator Oscillator

US $270

  • San Marino, California, United States
  • Mar 2nd
Open on mobile:
QR code

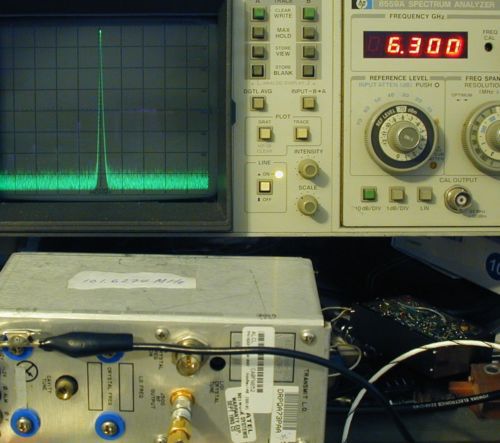

6.3 GHz PLL brick oscillator by Alcatel.   Contains a high-Q dielectric resonator oscillator (frequency adjustable via the CAVITY TUNE screw) that is phase locked to a harmonic of the internal non-ovenized crystal ( TO-5 size) oscillator.  J3 is the crystal oscillator frequency monitor.   Here, I am using a crystal of 101.6274 MHz:  The X 62 harmonic is about 6300 MHz.  J500 (SMA female) is the RF output which is 16.1 dBm.   Brick requires a well-regulated  -12 VDC at about 0.4 A,  and +12 VDC at less than 0.1A.  The spectrum analyzer (at 1 MHz/div), the crystal, cables, and attenuators are not included in auction.   This "brick" phase locks fine and has a very clean output spectrum--thanks to the DRO.  Ships to USA for $8.00 via USPS Priority mail in antistatic bag, well packed, and boxed.   No shipping out of USA.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand Alcatel
