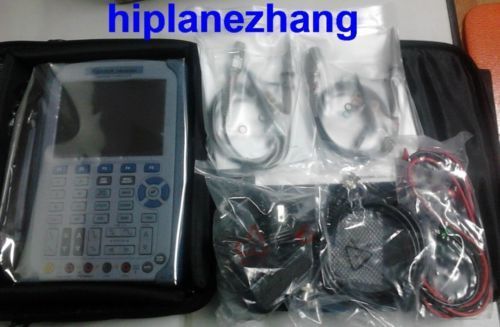

60M Handheld Oscilloscope Arbitrary Waveform Generator DMM Counter 5in1 DSO8060, US $454.00 – Picture 0

60M Handheld Oscilloscope Arbitrary Waveform Generator DMM Counter 5in1 DSO8060, US $454.00 – Picture 1

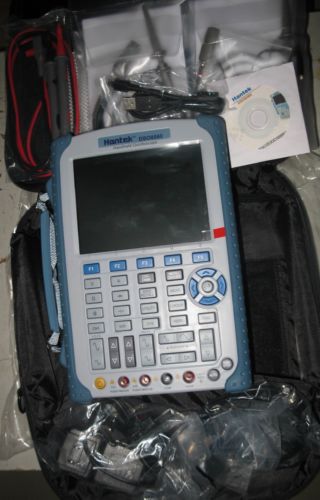

60M Handheld Oscilloscope Arbitrary Waveform Generator DMM Counter 5in1 DSO8060, US $454.00 – Picture 2

60m Handheld Oscilloscope Arbitrary Waveform Generator Dmm Counter 5in1 Dso8060

US $454.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

• Industrial Grade Design with Direct key for Each Channel, Time base, Trigger and DMM, Easy to Use. • 5-in-1 Handheld Oscilloscope/DMM/ Spectrum Analyzer/Frequency Counter/Arbitrary Waveform generator • High Bandwidth 60MHz and 6000 COUNTS high precision DM. • Separated GND Reference. Hardware Frequency Counter • Large 5.7 inch TFT Color LCD Display, LED backlit, Sharp Display. • Arbitrary Waveform Generator: 25Mz arbitrary waveform output, (up to 75 Mhz for Sine) 200 MSa / s DDS, 12 bits of vertical resolution • USB Host/Device 2.0 full-speed interface, support removable disk, RS-232/LAN Optional, Easy to control by PC Locally or Remotely. • High refresh rate,High Real-time Sample Rate 150MS/s-2GS/s, 50Gs/s Equivalent-time Sample Rat. • FFT, +, - , *, /, X-Y, 22 kinds of auto measurements, Pass/Fail Check, easy to use on production line. • Multiform Trigger mode, 2 separate Time Base in ALT Trigger mode, easy to see 2 signals with different frequency. • 1000 waveforms save and record. • Battery Powered (3500mAH Lithium Ion Battery Included), Industrial Grade Design. • Save waveform in the following: jpg/bmp graphic file, MS excel/word file. • Dimensions (mm):240(L) x165(W) x50(H), Easy to Carry • LabviewVBVC Second Design instance. • CE and FCC Approved Model DSO 8060 VERTICAL Channels 2 Bandwidth 60MHz Rise Time 5.8ns Input Impedance Resistance: 1M ; Capacitance: 15 pF Input Sensitivity 10mV/div to 5V/div Input Coupling AC, DC and GND Vertical Resolution 8 bits Maximum Input 400V (DC+AC Peak) HORIZONTAL Real-Time Sampling Rate 150MSa/s Equivalent Sampling Rate 50GSa/S Time Base Range 5ns/div~1000s/div Memory Depth 32k at Single Channel, 16k at Dual Channel Time Base Precision ±50ppm TRIGGER Source CH1, CH2 Mode Edge, Video, Pulse Width, Alternative X-Y MODE X-Axis Input Channel 1 Y-Axis Input Channel 2 Phrase Shift Max.3 degree CURSORS AND MEASUREMENT Voltage Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot Time Measurement Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Delay Measurement Delay time from ch1 rising edge to ch2 rising edge Delay time from ch1 falling edge to ch2 falling edge Cursors Measurement Manual, Track, Auto Measure Modes Waveform Signal Process CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert Storage Storage 15 Waveforms and Setups Signal Generator Waveform Frequency DC-25MHz DAC Clock 2K-200MHz Adjustable Frequency Resolution 0.1% Channel 1 Channel Waveform Output Waveform Depth 4KSa Vertical Resolution 12 Bits Frequency Stability <30PPM Waveform Range +/- 3.5V Max. Output Impedance 50 ? Output Current 50mA (Peak) System BW 25M Harmonic Distortion -50dBc(1KHz), -40dBc(10KHz) Frequency Analyzer Frequency Range DC-60Mhz Input Range 400mVpp-18Vpp Coupling Mode DC Accuracy ±Time Base Error ±1 Count Input Impedance >100K? METER MODE Maximum Resolution 6,000 Counts DMM Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity Maximum Input Voltage AC: 600V, DC: 800V Maximum Input Current AC: 10A, DC: 10A Input Impedance 10 M? DISPLAY TFT LCD Type 5.7 Inch with LED Backlight Display Display Resolution 240 (Vertical) x 320 (Horizontal) Dots INTERFACE USB USB Host / Device 2.0 Full Speed Supported Optional RS232, LAN POWER SOURCE Line Voltage Range AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA Battery Power (Installed) 6 Hours (Li-ion Battery) MECHANICS Dimension 245 x 163 x 52 (mm) Weight 1.2Kgs Digital In/Out Bits 12 Bits Digital Generator Output and 6Bit Generator In Level LVCMOS Other Separated GND Reference Oscilloscope and MultiMate Independence Operating system Windows NT, Windows 2000, Windows XP ,VISTA Second Design Supply DEMO code (VC?VB?LABVIEW) Certification CE and FCC Approved Note: we'll ship this item via express mail service to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Malta, Norway, Sweden, Swiss, Spain, Italy, UK, Japan, Korea,Thailand, Malaysia, Indonesia, Philippine, Singapore. Clients from other countries pls contact with us in advance to confirm the different shipping charges before you bid.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	DSO8060
Channels	2
MPN	DSO8060
Number of Channels	2
Type	Digital
Country of Manufacture	China
Bandwidth	60MHz - 99MHz
