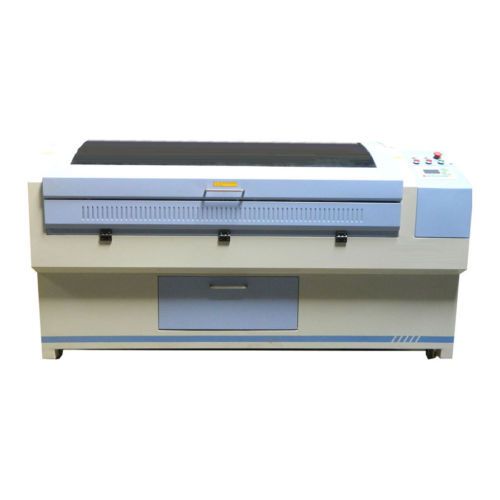

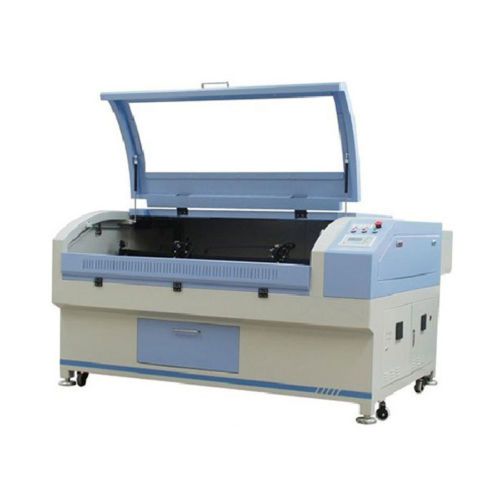

63" X 40" Double Heads Laser Engraving & Cutting System Laser Cutter, Step Motor

US $15,405.20

United States
Mar 6th

Open on mobile:
QR code

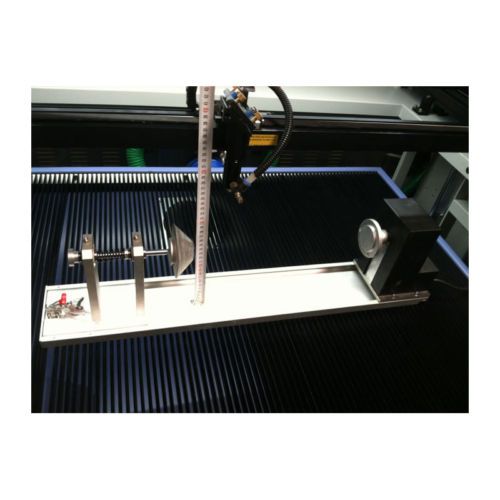

Description With POWERFULL TWO LASER TUBES OF 130W RC and Stepper Motor,We offer you the most convenient price of the market, two years of the best warranty. Large worktable (63" x 40"x 10") and rear pass-thru allows easy the loading of materials such as bulk rolls or full 4’ x 8’ or 4’x10’ sheets The high quality, RELIABILITY AND PROFITABILITY of our CM1610DHC is supported by our Research and Development Department with more than 30 expert engineers, masters and doctors in physics and electronic sciences of the laser technology and manufactured in accordance with the programs QB / T1700-2001 and ISO9001: 2000. With laser tubes of 130 Watts, this laser engraving and cutting machine is the best if you need high quality and high speed cutting and engraving on an area of 63" x 40" (1600mm x 1000mm). Also, it can engrave pieces until 20 inches of height or cylindrical surfaces until 9 inches of diameter. Main Configuration (Servo Motor) Maximum Working Area: 63" x 40" (1600mm x 1000mm) Cutting Speed: 0 – 584mm / s (0 -23IPS) (Depending the material to cut) Engraving Speed: 0 – 1066mm /s (0 - 42IPS) (Depending the material to engrave) Laser Power: 130W Max. Cutting Thickness (Acrylic): 3/4 inches or more (0-25mm) (Depending the material to cut and the power and laser lens) Resolution: Up to 4000DPI (The regular use is between 600DPI and 2000DPI) Minimum Configuration: Characters 0.07" x 0.07" (2mm x 2mm) and letters 0.039" x 0.039" (1mm x 1mm) Precision Tolerance: 0.00039" (0.01mm) power supply: AC220V ± 10%, 50 / 60Hz Power Consumption: <900 Watts With Electric Up and Down Lifting Table, Rotary Fixture, 130W Tube and Stepper Motor 1. The Most Profitable Work Area Two worktable sets 63" x 40" x 10" are included: (1) Honeycomb to cut thinnest material (fabric, leather and paper, etc.) (2) Stripped to cut hard and inflammable materials (acrylic, wood and foam, etc.) and getting the cleanest edge cut. The Up / Down work table can fit pieces of 10" deep. Also, you can remove both worktable and reaching 20" deep. It is powered by two motor up / down worktable with speed control, it can load 200 pound. Effective work area: 63" x 40" x 10" 2. Two Laser Tubes Laser tube 130W RC - KT: Real power to cut until 1" -1.18" (30 mm.) thick acrylic - more than any other laser machine - and taking in advantage the high speed of stepper motors, you can get the double of production than other laser machines of one head. Emits a perfect laser beam. Easier alignment system, the laser tube lies up on stable and adjustable stands. Protection system to avoid spark that is better than others. 3.Two Large Worktable - Motorized Up/Down X:64''- Y:40''- Z:10" Taking advantage of its intelligent Japanese SERVO MOTORS and POWERFULL TWO LASER TUBES OF 130W each, this is the best laser machine for cutting and engraving on high quality and high speed on 63''x 40'' effective work area, its motorized up/down worktable allows placing pieces up to 10". Also, its rotary attachment can engrave cylindrical surfaces until 8"of diameter.Its technology and power guarantee making cuts up to 1+1/4”(30 mm.) acrylic in single pass… better and faster than others similar in the market. ROTARY ATTACHMENT - head with clamping grippers - system to engrave curve surfaces until 8” diameter… better and faster than others similar in the market.REAR PASS THROUGH WINDOW to work with whole sheet of acrylic,MDF,foam,wood,plywood,etc. – as well as bulk rolls of fabric, leather, cardboard, etc… AMPLE TWO WORK TABLE sets X:63''Y:40'' Z:10": One (1) honeycomb to cut thin material (fabric, paper…) and other (1) with thin strips metal to cut hard and inflammable materials (acrylic, wood, foam...). Gets the cleanest edge cut. 4. Two Laser Heads Efficient transmission laser beam system: The perfect laser beam comes from the laser tube, the silicon mirrors reflect the 99% of the power and the American laser lens doesn't absorb power, allows the pass of energy focused in the point of work. 5. Software and Working Control The CM1309DH communicates via it USB 2.0 port to a computer and its control software. Similar to outputting to a printer, this makes it easy to manage various parameters such as power, speed and resolution in order to achieve the desired results. The controller software is included at no additional charge. Formats Supported by the Software Supports practically all standard graphic design formats: bmp, gif, jpg, pcx, cad, tga, tiff, plt, cdr, dmg, dxf and dst. 6. Laser Head X-Y-Z Axis Positioning System Its Laser head positioning system is fast and extremely accurate thanks to its components. Its steel gantry rails and laser head movement system is made in Korea and its electronic controller motors are made in Japan. 7. Light Path System Our laser machine has an American optics system that optimizes the focus and efficient of the laser beam on materials, allowing it to produce fine cuts or deep engravings, depending on your requirements. This laser lens doesn’t absorb power and can last for more time than others. 8. Electronic Chiller Included Highly efficient with only minimal maintenance, the included TWO CW5200 ELECTRONIC CHILLER regulates and controls the laser tubes temperature in the while in operation. 9. Exhaust Blower and Tube Included Various materials release small amounts of fumes and gases in the engraving or cutting process. To extract these fumes and gases, our CM1309 comes equipped with one exhaust system and 12 feet (4 meters) of adjustable ventilation duct tubing to be installed when the machine is being operated inside a small and enclosed area. 10. Air Assist System This equipment comes equipped with one air compressors fix inside of machine to feed the air assist system to clear smoke & debris from the work area, cool and protect the Laser Head focusing lens, diminish the amount of flaming, scorching, charring from the work piece, and reduce the chances of ignition when it is working with flammable materials. 11. Emergency Stop Button and Safety Sensors An easy-to-use multilingual LCD Control Panel is incorporated as well as Potentiometers to regulate the laser tubes output, laser beam activator button. Our laser machines are equipped with security sensors and safety features disabling the equipment in case of inappropriate use or unsafe operational conditions, as well as the ability for the machine operator to IMMEDIATELY and completely shut down the entire machine in the event such a situation or circumstances arise. Features • 63" x 40" (1600mm x 1000mm) working area • Up to 42IPS high working speed • Laminated Safety Glass, glass viewing windows creating a safe enclosure for laser processing. • Adopts the super fine cutting technology, which has features of extensive material processing, smooth cutting edge and burr-free, avoid polishing, processing high speed, high precision. • Adopt high precision equilibrium linear guide, more stable, stepper motor is in high-end applications. • Pass - through front and rear doors to accommodate long working pieces. • The laser cutter machine is equipped with two high quality CW5200 water chillers. • Plug and play standard USB port for rapid data transmission. Neat working environment, The working process is clean, quiet with least waste of material. 1. Signs, Awards and Trophies, Furniture and Frame, Cabinets, Engineering and Architecture, Custom Crates. 2. Two 130W laser tubes and stepper motors to get faster and better cutting and engraving: Acrylic, Plastics, Wood, Plywood, MDF, Foam, Cardboard. 3. Textile and Apparel, Shoes and Leather, Labels Manufacturing, Arts, Printing. Servo motors to get precision, transmission system of laser beam: Silicon mirrors 99% reflection, lens from the US for a clean cutting and engraving: Leather and Chamois, Any Fabric, Push, Tulle, Laserable Metal. Quality Instructions: Handling - Shipping & Delivery Wooden Box: There is total one wooden box. Packing List Machine Dimension 88" x 60" x 44" (2235mm x 1524mm x 1118mm) Machine Weight 840lb (381kg) Package Wooden box Packing Size 90" x 74" x 55" (2286mm x 1880mm x 1397mm) Gross Weight 950lb (431kg) OPERATION MANUAL A complete Operation Manual is included in the software installation CD. It contains clear explanations of the Installation process and the usage of the software, the control panel and other features. Laser Engraving & Cutting machine 1 set Laser tube 1 pc KT-5200 water chiller 1 set Air pump 1 set Exhaust Fan 1 set Rotating Unit 1 set Corrugate tube 2 pc Hose clamp 4 pc Kit 1 unit Power line 1 pc Software, USB Dongle, USB cable 1 set Socket plate 1 pc User’s Manual 3 pc 703 silicone glue 1 pc Packing: Warranty Mechanical and electronic components: 2 year against manufacturing defects. Parts and components damaged due to improper usage and operation of the equipment are not covered under warranty. The complete warranty shall be available once the customer has accepted and received the training program and the purchase agreements are signed by the customer. CO2 laser tube: 6 months against manufacturing defects. Laser optical components are considered consumables and are therefore not covered during the warranty period. The voltage regulator installed in this equipment is a consumable part is not included in the guarantee. Installation and Training: Technical support is offered via telephone, e-mail and other ways. Instruction of installation will be written (emailed). A video with the installation of the Laser Machine is available. Note: Dear customers,about this machine,you can pick it up by yourself , and we will refund you $500.00 from Buy-It-Now price.Thank you! On Mar-06-15 at 01:46:32 PST, seller added the following information:

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Model

16904
