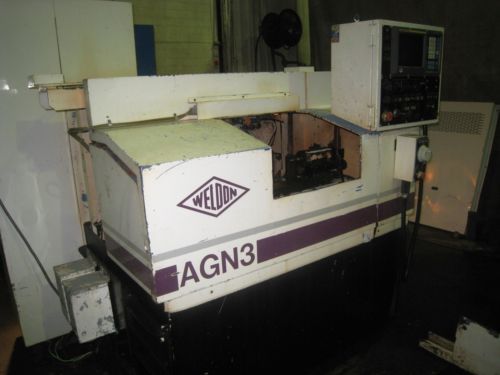

7" X 10" Tsugami / Weldon Agn3 2-axis Precision Cylindrical Cnc Grinder

US $19,500.00

Prospect Heights, Illinois, United States
Jan 30th

Open on mobile:
QR code

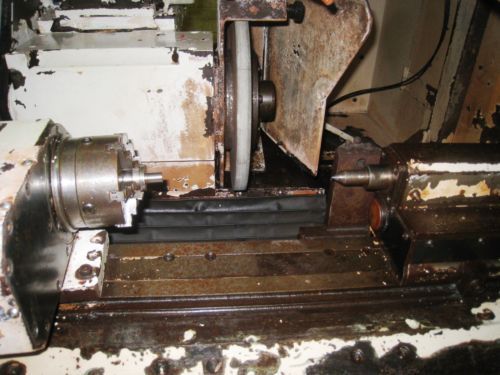

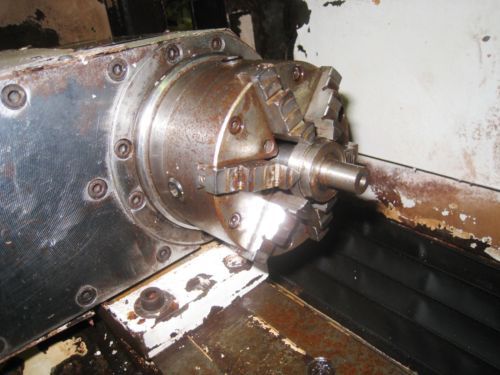

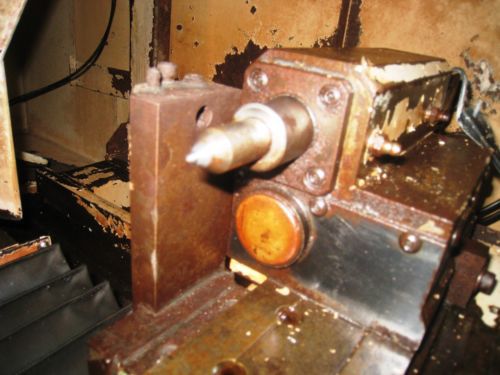

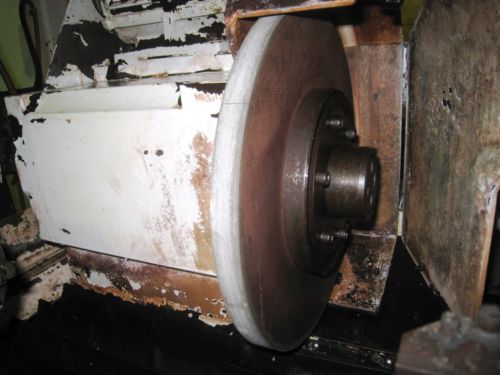

7" X 10" TSUGAMI/WELDON MODEL AGN3 CNC 2-AXIS PRECISION CYLINDRICAL GRINDER General Specifications Maximum part length 10" Work swing 7" Grindable diameter 2" Supportable weight 44 lbs. Workhead: Work spindle speed range 100 to 1000 RPM Work center taper #2 Morse Through-hole diameter .590" Tailstock: Work center taper #2 Morse Quill travel distance 1" Quill advance/retraction Air-operated Taper adjustment (on diameter) +/- .002" Wheelhead: Speed2700 RPM Wheelsize, maximum 12" x 2" x 5" Wheelsize, throw away 10" Rapid traverse rate 200 IPM Travel, maximum 6" Angle of wheelhead 0 to 30 degrees Surface speed 8500 sfpm Bearing - wheel end Hydrodynamic Bearing - drive end Super-precision, double row roller Table: Rapid traverse rate 200 IPM Grinding feed rate .0001 to 78 IPM Work table travel 14" Axis Slides: AC digital servo-drives 1/4 HP Command resolution 0.000010" Position feedback resolution 0.000004" Way construction Precision ball races on hardened steel rails 2 Stock 1 2 SERIAL NUMBER NEW GENERAL SPECIFICATIONS (CONT.): Lubrication: Workhead & ballscrew bearings Grease packed Wheel spindle bearings Recirculating hydraulic oil Ways and ballscrew nuts Grease packed Lubrication tank 4 gallons Coolant tank 26 gallons Overall dimensions 72" W x 59" D x 71" High Height of part from floor 39" Approximate weight 3,550 lbs. Motor Specifications 1/4 HP Workhead motor 3 HP Wheelhead motor EQUIPPED WITH (CONT.): Full enclosure Combination live/dead spindle workhead Pneumatic-operated tailstock Taper correction by micrometer tailstock adjustment Coolant tank with magnetic separator General purpose grinding wheel Wheel hub http://www.youtube.com/watch?v=Rq4N_5HxhHo VIDEO Serial Number 3159 Year 1992 Location PROSPECT HEIGHTS, IL
