808nm 200mw Cw Infrared Laser Diode Module Kit / Focusing Lens - Burning/cutting

US $49.99

Plainfield, Illinois, United States
Jan 30th

Open on mobile:
QR code

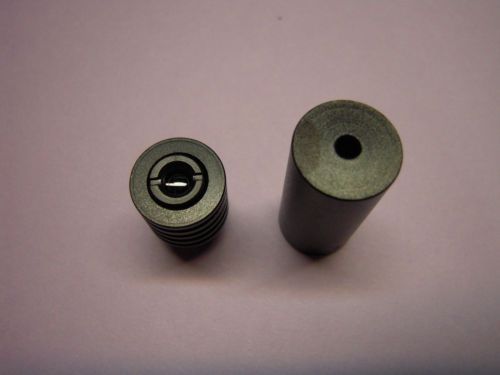

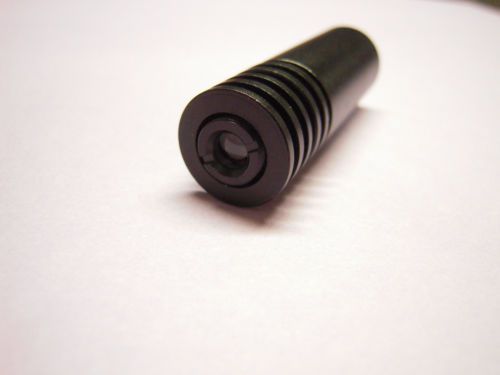

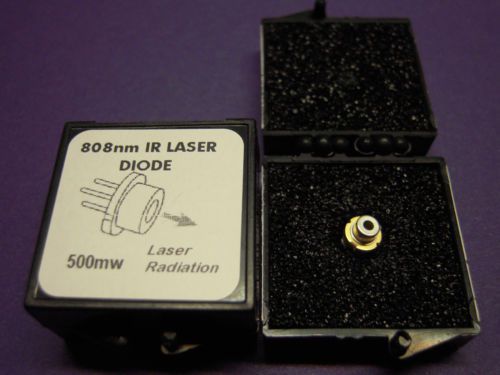

808nm DELUXE BURNING DIODE LASER KIT Diode Driver w/ Adjustable Output Laser Module w/ Built-in Heat-sink & Glass Focusing Lens 500 mw!! - 808nm Infrared Laser - *** Brand New *** You are bidding on a brand new kit that contains 1 -808nm Infrared laser diode that is rated at 200mw continuous, but capable of 500mw of power when used in pulsed operation. The diode is individually packaged in an ESD protective conductive box and the diode is seated in rigid cross-linked ESD foam to further protect it from ESD damage. The kit also includes an Adjustable Laser Diode Driver and Laser Diode Housing with Glass Focusing Lens & Large Heat-sink to complete your project. This kit also includes an anti-static care kit with a High Quality ESD antistatic wrist strap, a full set of ESD antistatic finger cots or gloves to handle the static sensitive lasers when installing them into your next project and instructions on how to hook-up and power the diodes. These lasers are capable of burning and engraving several materials. They can be made into a handheld burning unit or incorporated into a cnc router system. Included: 1 - 808nm Diode Laser (200mw) 1 - Adjustable Laser Diode Driver Kit 1 - Laser Diode Housing (w/ Focusing Lens & Heat Sink) 1 - ESD Anti-Static Wrist Strap 1 - Full Set of ESD Anti-Static Finger Cots or Gloves Instructions on pinout, power requirements & Driver Settings Pick up several of these kits to use in all of your future and current laser projects. This item will ship within 24 hours of payment receipt via USPS Priority Mail. FEATURES: Light Output : ?p=808nm Optical Power Output : 200mW CW (500mW Pulsed) Package Type : TO-18 (5.6mm?) Polarization Mode : TM Mode (Type Y) Built-in Photo Diode for Monitoring Laser Diode. ABSOLUTE MAXIMUM RATINGS at Tc=25°C Items Symbols Values Unit Optical Output Power (CW) Po 200 mW Optical Output Power (Pulse) Pp 500 mW Laser Diode Reverse Voltage Vrl 2 V Photo Diode Reverse Voltage V 30 V Operating Temperature (Case Temp) Topr -10 ~ +40 °C Soldering Temperature Tsld 350 °C ELECTRICAL/OPTICAL CHARACTERISTICS (Tc=25°C) Items Symbols Min. Typ. Max. Unit Condition Optical Output Power Po - 200 - mW - Threshold Current lth - 75 95 mA - Operating Current lop - 260 280 mA Po=125mW Operating Voltage Vop - 1.9 2.5 V Po=125mW Lasing Wavelength ?p 400 808 813 nm Po=125mW Beam Divergence ?? - 7 12 deg Po=125mW ?+ - 35 45 deg Po=125mW Beam Angle ??? - - ±3 deg Po=125mW ??+ - - ±3 deg Po=125mW Monitor Current lm - 0.6 1.0 mA Po=125mW Polarization TM Mode Optical Distance ?X, ?Y, ?Z - - ±60 ?m - Safety: Caution: Laser light emitted from this diode laser is visible and harmful to the human eye. The output from this laser will burn skin as well. Avoid looking directly into the diode laser aperture or viewing the reflected light when the device is in operation. Note! The use of optical instruments with this product will increase hazards. ESD Caution: Handle diode lasers with extreme care to prevent electrostatic discharge, the #1 cause of unexpected diode failure. You can prevent ESD by always wearing wrist straps, grounding all applicable work surfaces, and following extremely rigorous anti-static techniques when handling diode lasers. Due to the sensitive nature of these devices they are being Sold As-Is. Do not purchase this item if you do not understand the hazards involved with these devices. By bidding on this item you understand that this is a laser component that is meant for manufacture of new products or repair and direct replacement of existing equipment. The purchaser, if incorporating this item into a newly manufactured product is responsible for its compliance with CDRH requirements if located in the US. The biddor shall not hold the seller or ebay responsible for any damage, both personal and property, that is caused by the use of this device. Safety First!! This item will ship within 24 hours of payment receipt via USPS Priority Mail. Enjoy and happy Bidding!
