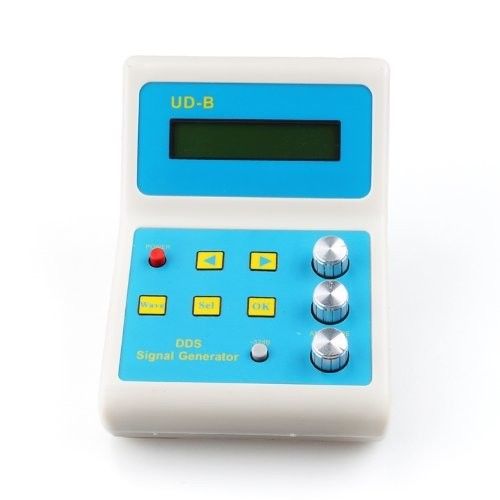

8MHz Direct Digital Synthesis (DDS) Frequency Sweep Function Signal Generator, US $67.17 – Picture 0

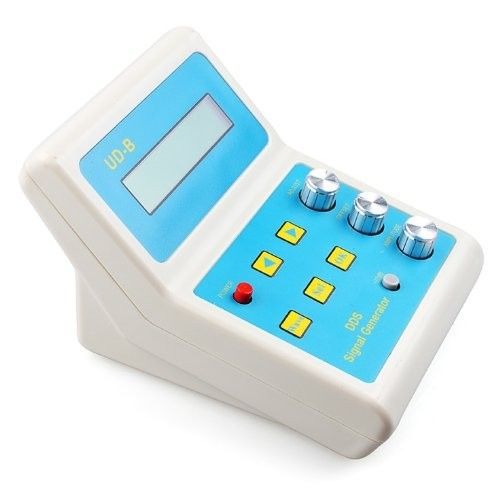

8MHz Direct Digital Synthesis (DDS) Frequency Sweep Function Signal Generator, US $67.17 – Picture 1

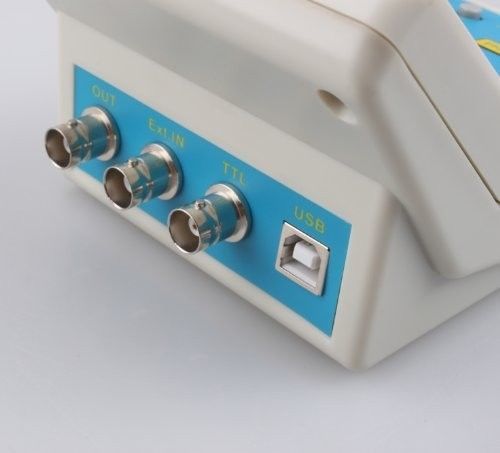

8MHz Direct Digital Synthesis (DDS) Frequency Sweep Function Signal Generator, US $67.17 – Picture 2

8MHz Direct Digital Synthesis (DDS) Frequency Sweep Function Signal Generator, US $67.17 – Picture 3

8mhz Direct Digital Synthesis (dds) Frequency Sweep Function Signal Generator

US $67.17

Hong Kong, China
Jan 29th

Open on mobile:
QR code

8MHz Direct Digital Synthesis (DDS) Frequency Sweep Function Signal Generator Introduction of the instrument UDB11xx(UDB11xxS) series direct digital synthesis signal generator use DDS technology and FPGA design with the characters of high stability and low distortion ect., with the function of TTL output and 60MHz frequency meter, SG100xS series have sweep function, the start and end frequency and sweep time can be set at will. It's the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research. Main technology data 1. Signal Output function Output amplitude: >=9Vp-p (signal output,no load)(MAX) About 0.1Vp-p(MIN) Output impedance: 50 omega +/-10%(signal output) DC offset: +/-2.5V(no load) Display: LCD1602 Frequency range: 0.01Hz - 8MHz(UDB1108) Resolution: 0.01Hz(10mHz) Frequency stability: +/-1x10-6 Frequency accuracy: +/-5x0-6 Sine wave distortion: =98%(0.01Hz-10kHz) Rise and fall time of square wave: 3Vp-p Fan Out: >20 TTL loads 3. COUNTER function Counter Range: 0-4294967295 Frequency Meter Range: >1Hz-60MHz Input Voltage Range: 0.5Vp-p -20Vp-p 4. SWEEP function Frequency range: fM1 to fM2 Sweep time: 1s-99s 5. Others function Save and Load Parameter: M0-M9(M0:default load) Packaging Details: Unit Type: piece Package Weight: 0.500kg (1.10lb.) Package Size: 15cm x 10cm x 15cm Purchase instructions: Please contact us before place an order if your country is not included in the shipping cost list, and we will reply you as soon as receive your mail. Please leave a message after payment about the input voltage ,plug and connectors (Clips or Rings .etc.)you need. So we can arrange the exact products you need. We we will dispatch the goods immediately after the payment. Please NOTE the following points before you make this kindly order. AC plug type will be matched together with the charger according to your located country. If you have any special requirements of the AC plug type, please let us know by leave message. (EU/US/AU plug). The delivery time may be extended if you have any additional changes and requirements of this charger. If you have no special requirements of our charger, we will issue it as the pictures shows, thanks!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	UDB
Country/Region of Manufacture	China
Model	UDB1108S
