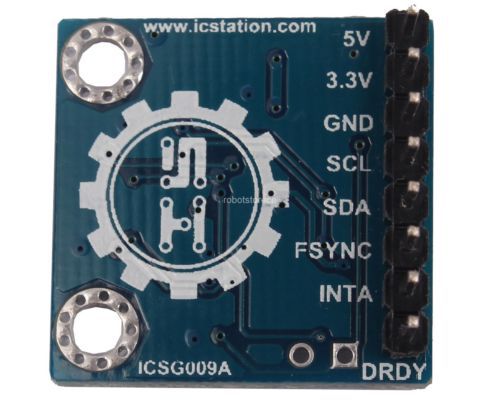

9DOF Module 9-axis Attitude Indicator MPU6050 BMP180 HMC5883L Module Good Use, US $13.57 – Picture 0

9DOF Module 9-axis Attitude Indicator MPU6050 BMP180 HMC5883L Module Good Use, US $13.57 – Picture 1

9dof Module 9-axis Attitude Indicator Mpu6050 Bmp180 Hmc5883l Module Good Use

US $13.57

???, ???, China
Jan 29th

Open on mobile:
QR code

9DOF Module 9-axis Attitude Indicator MPU6050 BMP180 HMC5883L Module Good Use I,Feature 1).MPU-6000 (6050) integrates 3-axis gyroscope, three-axis accelerometer, and may contain other brands of the accelerator by a second I2C port connection, magnetic sensors, or digital motion processing other sensors (DMP: Digital Motion Processor ) hardware acceleration engine, the main I2C port in the form of a single data stream output from the application side complete fusion algorithm technology InvenSense 9-axis motion processing library that can handle complex data movement sensing, reducing the movement processing operation to operation system load, and provide a framework for the application of API development? 2)Honeywell is a surface mount HMC5883L highly integrated modules and weak magnetic sensor chip with a digital interface, compass and magnetic field applied to the detection of low-cost areas. HMC5883L including the most advanced high-resolution HMC118X series magnetoresistive sensors, and with Honeywell's patented integrated circuit includes amplifier, automatic degaussing drives, offset calibration, the compass can make precision control in 1 ° ~ 2 ° in 12 modulus converter. simple I2C serial bus interface. HMC5883L is the use of lead-free surface mount technology, with a 16-pin, size 3.0X3.0X0.9mm. HMC5883L of the applications have mobile phones, laptops, consumer electronics, car navigation systems and personal navigation systems? 3)BMP180 is a high precision, small size, ultra-low power pressure sensor can be used in mobile devices. Its performance, absolute accuracy can reach the lowest 0.03hPa, and the power consumption is very low, only 3?A.BMP180 using powerful 8-pin ceramic leadless chip carrier (LCC) ultra-thin package, can be connected directly with a variety of microprocessor via the I2C bus. II,Applications 1. Aircraft flight attitude and heading measurements, for example: UAV 2. Robot Control 3. Ground transportation 4. Ship hull stability control 5. PTZ camera image stabilization control, such as: auto-tracking PTZ stabilization system 6. Instrumentation, such as: attitude, electronic compass (compass) 7. Intelligent remote control, for example WII 8. Assisted navigation, GPS blind projections III,Parameters SCL I2C clock SDA I2C data 5V 5V power 3.3V 3.3V power GND GND IV,Mechanical Drawings unit:mil V,Description Model:MPU6050 HMC5883L BMP180 9axis modules Sleep Current:<80uA Peak current:<30mA Read Range:0~45mm Interface:I2C bus Data transfer rate:Maximum 400Kbit/s Physical Characteristics:Size:22.5mmx22.0mm Ambient operating temperature:Celsius-20—80 Degree Storage Temperature :Celsius-40—85Degree Humidity:Relative Humidity 5%—95% Agreement:Accord IIC Protocol Standards VII,Precautions Do not be in a larger location next to a large current or magnetic field tested or used, so as not to affect the normal operation of the sensor, get a larger error. For more quantity,please contact us. 1) We accept PayPal payment ONLY.
