Aaf Astrocel 1 Nuclear Grade Clean Room Hepa Air Filter 24x24x11.5 1000 Cfm New!

US $149.99

Murrieta, California, United States
Jan 30th

Open on mobile:
QR code

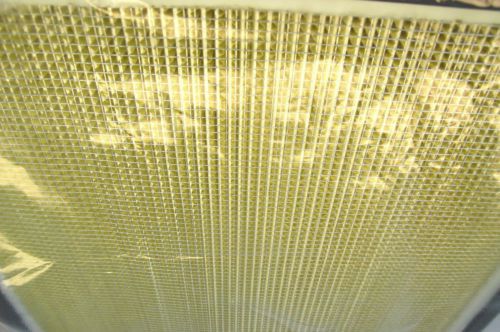

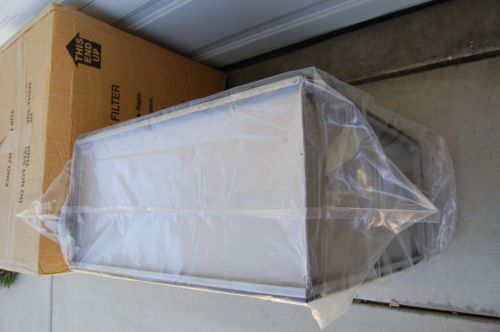

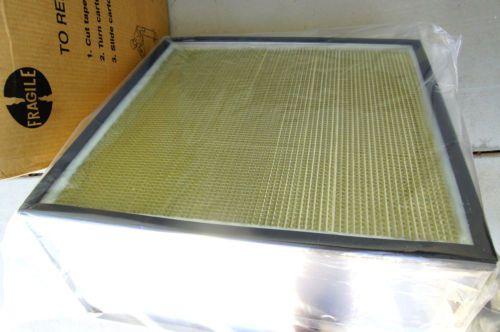

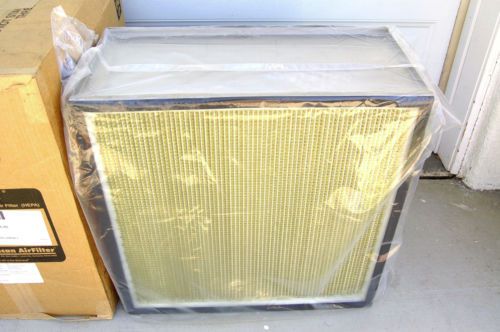

This is an AAF American AirFilter Astrocel 1 NUCLEAR GRADE Clean Room HEPA Filter 24x24x11.5 1000 CFM, model #105-883025-040. 409 SS Cell Material, neoprene gasket on both sides, vinyl separators. Design and Construction The AAF AstroCel I Nuclear Grade HEPA filter is designed to meet all the requirements of ASME AG-1 and ASME N509 and is available in Standard and High Capacity flow models. AstroCel I Standard and High Capacity Nuclear Grade HEPA Filters operate on the interception-diffusion principle to remove ultra fine particles from ventilation and process air using a high media to face area ratio by limiting air velocity through the media to 5 feet per minute at rated airflow. The high density filtering media of sub-micron glass fibers is folded into a closely pleated pack with pleats evenly spaced by corrugated separators which support the media and allow minimum resistance to airflow. The media pack is sealed into the filter case sides with urethane adhesive. The case sides have rigid double box flanges (#14 Gauge Stainless Steel) or rabbited and double nailed corners (3/4" Fire-Retardant Plywood) for maximum resistance to rough handling and distortion. Neoprene gaskets with interlocking dovetailed corners or a channel containing silicone gel are provided on one or both (gasket only) faces for leak free sealing into housings or banks. Faceguards of 4x4 hardware cloth galvanized (standard) or Type 304 stainless steel (optional) on both faces for media protection and added protection from racking are provided. These filters are qualified under UL Standard 586 and are so labeled. Each filter is factory tested at 100% of rated airflow and at 20% of rated airflow (125 CFM and larger) and individually labeled and identified with a unique serial number and test results for penetration and resistance. The characteristics of the media and construction of the media pack allow the filter to be installed with airflow in either direction, regardless • ASME AG-1 Qualified • Listed on U.S. Army Qualified Products List (QPL) • UL 586 Qualified • NQA-1 Quality Assurance Program Design and Construction The AAF AstroCel I Nuclear Grade HEPA filter is designed to meet all the requirements of ASME AG-1 and ASME N509 and is available in Standard and High Capacity flow models. AstroCel I Standard and High Capacity Nuclear Grade HEPA Filters operate on the interception-diffusion principle to remove ultra fine particles from ventilation and process air using a high media to face area ratio by limiting air velocity through the media to 5 feet per minute at rated airflow. The high density filtering media of sub-micron glass fibers is folded into a closely pleated pack with pleats evenly spaced by corrugated separators which support the media and allow minimum resistance to airflow. The media pack is sealed into the filter case sides with urethane adhesive. The case sides have rigid double box flanges (#14 Gauge Stainless Steel) or rabbited and double nailed corners (3/4" Fire-Retardant Plywood) for maximum resistance to rough handling and distortion. Neoprene gaskets with interlocking dovetailed corners or a channel containing silicone gel are provided on one or both (gasket only) faces for leak free sealing into housings or banks. Faceguards of 4x4 hardware cloth galvanized (standard) or Type 304 stainless steel (optional) on both faces for media protection and added protection from racking are provided. These filters are qualified under UL Standard 586 and are so labeled. Each filter is factory tested at 100% of rated airflow and at 20% of rated airflow (125 CFM and larger) and individually labeled and identified with a unique serial number and test results for penetration and resistance. The characteristics of the media and construction of the media pack allow the filter to be installed with airflow in either direction, regardless of the direction tested. ®i How I got this item: The San Onofre Nuclear facility in southern California was shut down recently. Socal Edison sold off surplus parts and materials at auction. I purchased a large quantity of their nuclear grade air filters. Gasket: 1/4" x 3/4" Neoprene - Dovetailed Corners Silicone Gel Face Guards: 4 x 4 Galvanized Mesh 4 x 4 Type 304 Stainless Steel Mesh Media: Qualified to ASME AG-1 and listed on US Army QPL. Each lot of media individually tested for wet and dry tensile strength, PSL/PAO penetration, resistance, and thickness. Ratings: . 1000 CFM @ 1.0 in. w.g. Minimum 99.97% efficiency on 0.3 micron DOP Sizes: Standard per ASME AG-1 24" x 24" x 11 1/2" Actual designed, manufactured, and tested under a Nuclear Quality Assurance Program meeting all requirements of ASME NQA-1. Codes: Filters meet requirements of ASME N509-1989, ASME AG-1, and DOE 3020.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Astrocel 1
Country/Region of Manufacture	United States
Model	105-883025-040
