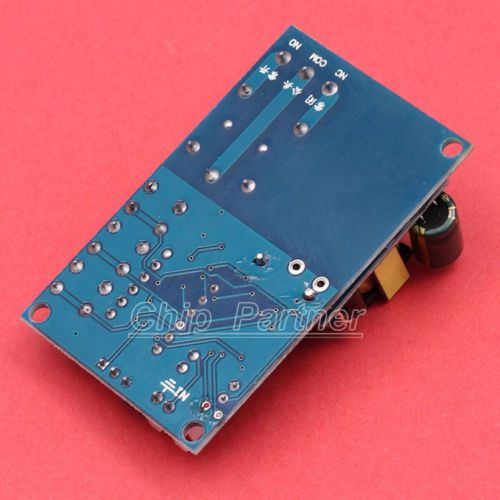

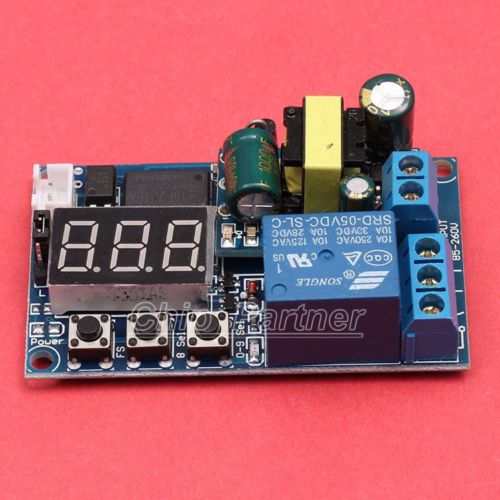

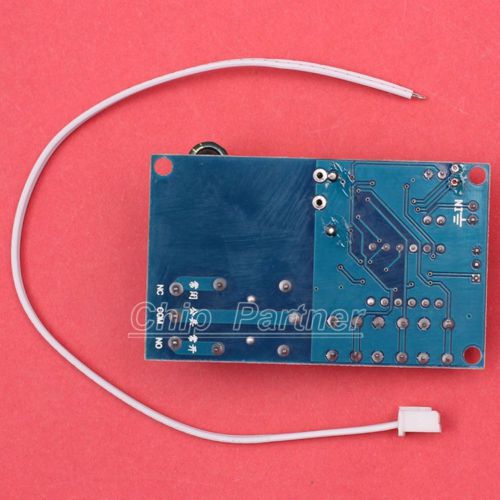

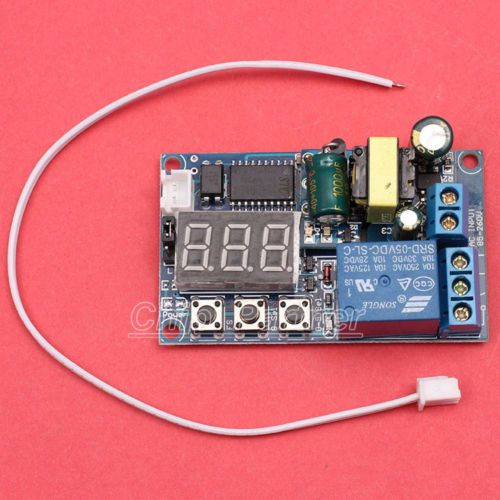

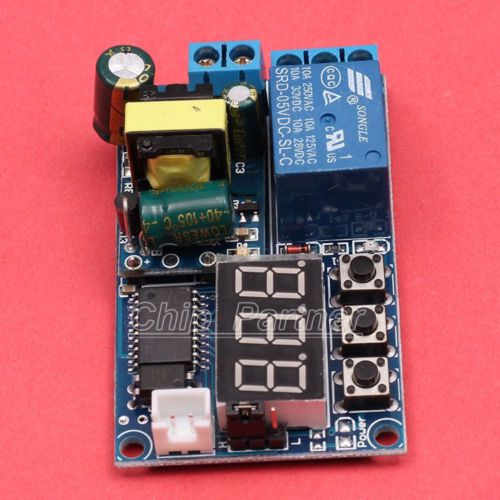

Ac 220v Multifunction Relay Module Delay/timing/self-locking/display/cycle

US $11.25

shenzhen, China
Jun 9th

Open on mobile:
QR code

HOME New Arrivals Best sellers FAQ Shipping Policy Contact Us Store Categroy Store home New Arrivals Big Sales Wholesales Combinations Robots & Cars 3D Printers Sensor Modules Power Modules DIY Modules Function Modules Wireless Modules Relay Modules LCD Modules Digital Voltmeters Development boards Arduino sheilds Cables & Connectors Sockets Breadboards & PCB Boards LEDs Sensors Industrial Automation Switches/Controls Valves and Flow Controls Indicators Relays ICs & Processors Resistors & Potentiometers Capacitors Transistors Audio Power Amplifiers Electronic Components Equipments & Tools Batteries & Related Helpful Links Store Newsletter Add my Store to your Favorites and receive my email newsletters about new items and special promotions! General Interest Similar items we recommend 8-Channel Relay Module With Optocoupler H/L Level Triger 5V 9V 12V 24V NEW $10.66 $11.22 4-Channel Relay Module With Optocoupler H/L Level Triger 5V 9V 12V 24V NEW $5.98 $6.29 5V 9V 12V 24V 1-Channel Relay Module With Optocoupler H/L Level Triger NEW $2.09 $2.2 2-Channel Relay Module With Optocoupler H/L Level Triger 5V 9V 12V 24V NEW $3.29 $3.46 30A 5V 12V 24V 1-Channel Relay Module With Optocoupler H/L Level Triger NEW $3.13 $3.29 5V 9V 12V 24V 4-Channel Relay Module Relay Shield High Low Level Triger Four Ch $4.43 $4.66 5V 9V 12V 24V 4-Channel Relay Module with Optocoupler High Level Triger New $4.56 $4.8 5V 9V 12V 24V 4-Channel Relay Module With Optocoupler H/L Level Triger NEW FR $5.69 $5.99 5V 9V 12V 24V 1-Channel Relay Module with Optocoupler High Level Triger $1.85 $1.95 5V 12V 8-Channel Relay Module with Optocoupler Low Level Triger for AVR/51/PIC $7.84 $8.25 AC 220V Multifunction Relay Module Delay/Timing/self-locking/Display/Cycle SKU:6031 Description A. Products description: 1. Power on trigger delay 2. Cycle timeing delay 3. High and low trigger delay 4. Self-locking, non-locking 5. Digital LED display 6. Timing relay module and so on 18 kinds of functions available, 7. Input AC voltage 85-260V, 8. Relay can connect to AC220V 10A or 30V 10A load, 9. Widely used in smart home automation control, product life testing, electronic enthusiasts applications. 10. Delay times are 1-999 and 1-999 minute second that can be choice. B. Product parameters: 1. Dimensions: 63.5*38.5*18.5mm 2. Locate the hole size: 58.5mm*33.5mm hole diameter: 3.1mm 3. Relay load capacity: 220V 10A AC or DC 30V 10A 4. Input voltage: 85V-260VAC 5. Static current: 45mA C. Product Use Method: 1. Connect right DC voltage.Do not take the wrong power or reverse power,Otherwise module may be damaged; 2. Select function by button "FS" for Function 1 to 18 as following description; 3. Double-click "FS" button after select function if function has one time such as T1 .And then LED digital tube will display "t".Then user can set delay time by button "8 Sel" and "0-9 Sel".Button "8 Sel" means which LED digital tube bit is selected. Button "0-9 Sel" can set value. 4. Double-click "FS" button after select function if function has two time such as T1 and T2.And then LED digital tube will display "t2".Then user can set delay time by button "8 Sel" and "0-9 Sel".On cycle timeing delay function,Double-click "FS" button will display "n" means cycle times. 5. Delay time 1-999 second and 1-999 minute can be set by long press button "FS" . Display "A" means 1-999 second.Display "b" means 1-999 minute. 6. It is no need set delay time for Function 17 and Function 18. 7. Trigger selection:Middle Pin connect to "L" pin means low level trigger.Middle pin connect to "H" pin means high level trigger. 8. Long press button "8 Sel" for 3 second on display-static,LED digital tube will turn off.Long press button "8 Sel" for 3 second on Non-display-static,LED digital tube will turn on. D. Features: 1>. Power on trigger delay: 1. Function 1 (Timing off) :Relay will turn on after power on and turn off after delay time then it will keep off.Delay time can be set from 1 to 999 second(or minute).If Re-Power on or receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,it can interrupt and Repeat Function 1. 2. Function 2 (Timing on) :Relay will turn off after power on and turn on after delay time then it will keep on.Delay time can be set from 1 to 999 second(or minute).If Re-Power on or receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,it can interrupt and Repeat Function 2. 3. Function 3 (Timing on and then off) :Relay will turn on after power on.Delay time for turn on(T1) can be set from 1 to 999 second(or minute).Relay will turn off After T1.Delay time for turn off(T2) can be set from 1 to 999 second(or minute).Relay will turn on After T2 again and then keep turn on.If Re-Power on or receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,it can interrupt and Repeat Function 3. 4. Function 4 (Timing off and then on) :Relay will turn off after power on.Delay time for turn off(T1) can be set from 1 to 999 second(or minute).Relay will turn on After T1.Delay time for turn on(T2) can be set from 1 to 999 second(or minute).Relay will turn off After T2 again and then keep turn off.If Re-Power on or receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,it can interrupt and Repeat Function 4. 2>. Cycle timeing delay: 5. Function 5 (Infinite Cycle timing mode 1) :Relay will turn on after power on.Delay time for turn on(T1) can be set from 1 to 999 second(or minute).Relay will turn off After T1.Delay time for turn off(T2) can be set from 1 to 999 second(or minute).Relay will turn on After T2 again.and the turn on delay time is T1 and keep this infinite Cycle timing.If Re-Power on or receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,it can interrupt and Repeat Function 5. 6. Function 6 (Infinite Cycle timing mode 2) :Relay will turn off after power on.Delay time for turn off(T1) can be set from 1 to 999 second(or minute).Relay will turn on After T1.Delay time for turn on(T2) can be set from 1 to 999 second(or minute).Relay will turn off After T2 again.and the turn off delay time is T1 and keep this infinite Cycle timing.If Re-Power on or receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,it can interrupt and Repeat Function 6. 7. Function 7 (Finite Cycle timing mode 1) :Relay will turn on after power on.Delay time for turn on(T1) can be set from 1 to 999 second(or minute).Relay will turn off After T1.Delay time for turn off(T2) can be set from 1 to 999 second(or minute).Relay will turn on After T2 again.and the turn on delay time is T1 and keep Cycle.Cycle times can be set from 1 to 999.If Re-Power on or receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,it can interrupt and Repeat Function 7. 8. Function 8 (Finite Cycle timing mode 2) :Relay will turn off after power on.Delay time for turn off(T1) can be set from 1 to 999 second(or minute).Relay will turn on After T1.Delay time for turn on(T2) can be set from 1 to 999 second(or minute).Relay will turn off After T2 again.and the turn off delay time is T1 and keep Cycle.Cycle times can be set from 1 to 999.If Re-Power on or receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,it can interrupt and Repeat Function 8. 3>. Trigger delay: 9. Function 9 (Trigger timing off 1) : Relay will keep off after power on.Relay turn on when receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface.Delay time for turn on can be set from 1 to 999 second(or minute).Relay keep off after delay and waiting for next trigger signal.NOTE:Trigger signal is invalid during delay. 10. Function 10 (Trigger timing on 1) : Relay will keep off after power on.Relay keep off when receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface.Delay time for turn off can be set from 1 to 999 second(or minute).Relay keep on after delay and waiting for next trigger signal.NOTE:Trigger signal is invalid during delay. 11. Function 11 (Trigger timing off 2) : Relay will keep off after power on.Relay turn on when receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface.Delay time for turn on can be set from 1 to 999 second(or minute).Relay keep off after delay and waiting for next trigger signal.NOTE:Trigger signal is valid during delay. 12. Function 12 (Trigger timing on 2) : Relay will keep off after power on.Relay keep off when receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface.Delay time for turn off can be set from 1 to 999 second(or minute).Relay keep on after delay and waiting for next trigger signal.NOTE:Trigger signal is valid during delay. 13. Function 13 (Trigger timing off and then on 1) : Relay will keep off after power on.Relay keep off when receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface.Delay time(T1) for turn off can be set from 1 to 999 second(or minute).Relay turn on after T1 and delay time(T2) for turn on can be set from 1 to 999 second(or minute).Keep off after T2 and waiting for next trigger signal.NOTE:Trigger signal is invalid during delay. 14. Function 14 (Trigger timing on and then off 1) : Relay will keep off after power on.Relay turn on when receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface.Delay time(T1) for turn on can be set from 1 to 999 second(or minute).Relay turn off after T1 and delay time(T2) for turn off can be set from 1 to 999 second(or minute).Keep on after T2 and waiting for next trigger signal.NOTE:Trigger signal is invalid during delay. 15. Function 15 (Trigger timing off and then on 2) : Relay will keep off after power on.Relay keep off when receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface.Delay time(T1) for turn off can be set from 1 to 999 second(or minute).Relay turn on after T1 and delay time(T2) for turn on can be set from 1 to 999 second(or minute).Keep off after T2 and waiting for next trigger signal.NOTE:Trigger signal is valid during delay. 16. Function 16 (Trigger timing on and then off 2) : Relay will keep off after power on.Relay turn on when receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface.Delay time(T1) for turn on can be set from 1 to 999 second(or minute).Relay turn off after T1 and delay time(T2) for turn off can be set from 1 to 999 second(or minute).Keep on after T2 and waiting for next trigger signal.NOTE:Trigger signal is valid during delay. 17. Function 17 (Self-locking Relay) :If receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,relay will turn on.receive again it will turn off.Key "8 Sel" can simulate this function. 18. Function 18 (Trigger Relay) :If receive a trigger signal(Support High/Low TTL level trigger signal or external switch button signal) for IN interface,relay will turn on.if this signal disappears,relay will turn off. Maybe you still need other items to work with this item Funduino Mega 2560 ATmega2560-16AU Board (Arduino-compatible) + Free USB Cable $14.89 $18.61 1PCS 3.2" TFT LCD Module Display + Touch Panel + PCB adapter $13.52 $27.04 4 Channel 5V Relay Module four channel For 51 PIC AVR MSP430 Raspberry pi $4.99 5V 9V 12V 24V 2-Channel Relay Module Relay Shield High Low Level Triger Four $2.66 Wboard Pro Wireless Development Board ESP8266 ATMEGA2560 Board $35.48 $70.96 2.4" TFT LCD Touch Shield 240*320 S6D1121 3.3/5V for Arduino UNO $21.56 $43.12 2.8" TFT LCD Touch Shield 240*320 ILI9325DS 65K for Arduino UNO $24.65 $49.3 Rboard Atmega328P Development Board 6~20V DC 4-Channel Relay Compatible Arduino $20.73 Mboard ATMega32U4 L298P Motor Driver Development Board Wireless Interface $18.73 $19.72 Nano IO Shield with XBee and nRF24L01 wireless interface for Arduino $6.53 $6.87 SHIPPING PAYMENT RETURNS FEEDBACK ABOUT US 1)All items will be shipped to your paypal address .Please update your latest address when you check out,and please make sure to provide us with correct,precise and detailed shipping address. 2)Most of the items will be shipped via Hongkong Airmail/Singapore Airmail .To US customers,we will send the package via E-packet . 3)All items will be shipped in 24 Hours (excluding Sat,Sun & Holiday) after payment received and cleared. For the long-time holiday, we'll post the info on our store and reply you automatically via emails. 4)Tax:We will do our best to help you to clear the goods,and the tax depends on each country custom. 5)If you don't receive items over 30 business days,please make sure to contact us before leaving any neutral or negative feedbacks.We'll try our best to help you solve the problem. 6)The product in our store is free shipping. But the shipping method is different based on your order.If your order is more than $40 ,we will send the items to you with tracking number for free.If your order is less than $40,the registered mail fee is on your side. We could also deliver your item via EMS,DHL or Fedex based on your requirement. We Only Accept Paypal on Ebay. For specific requirements, please feel free to contact us. 1)If for some reason you're not satisfied with our service or product quality, please contact us within 3 days after you get the package, you can return the products to us in original package and we will refund your money after we get the package!(Shipping cost is NOT refundable and you should responsible for the return shipping) 2)Although we test each item and they are packed professionally, few item(less than 0.1%) might be damaged during the shipping. You are welcome to contact us within 3 days after you receive your package about replacement. 3)Repair Some items might be broken caused by improper use, we are always happy to offer any helpful repair service. Of course, you can send the broken items back to us and we will help you resolve the situation and charge reasonable repair fees. Feedback is important to all of us participating on the eBay community. We are always working hard for maintain high standards of excellence and strive for 100% customer satisfaction. So your POSITIVE FEEDBACK is very important. Here is an illustration showing how to leave the positive feedback, please follow the following step. Thank you so much. And welcome back to our store again. Chip_Partner is a Well-Known Online Supplier specializes in all kinds of IC products and all Consumer Electronics, such as electronic devices and components, development modules, Power modules, consumptive materials and so on. Chip Partners are on Ebay for almost 10 years, and has owned thousands of registered customers from all over the world. We offer world wide free shipping and have already shipped to more than 150 countries including United Sates, United Kingdom, Canada, Australia, France, Germany, Russia, Italy, New Zealand, Spain, Brazil, Japan, Singapore, Korean, etc. We are more wiling to be your Long-Term Supplier in this filed, as we have these advantage of others: 1.Lowest Pirce, High Quality 2.Best Customer Service 3.Technical Support 4.Mass Quote Sevice 5.Extra Service if you need other items not listed in our shop On Mar-19-14 at 20:57:45 PDT, seller added the following information: inkfrog terapeak inkFrog Analytics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
Country/Region of Manufacture	China
Model	Multifunction Relay
UPC	Does Not Apply
MPN	Does not apply
