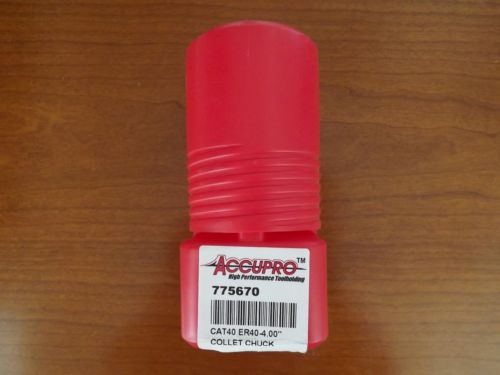

Accupro #775670 Er-40 4" Projection Cat V-flange Collet Chuck

US $125.00

  • Mukilteo, Washington, United States
  • Jan 30th
Open on mobile:
QR code
In excellent condition. Only used a few times. A total of four are available. $180 new. Also includes the retention Knobs with a retail value of $25 each. The specs are below for the knobs. If you do not need the knobs, I will remove them and reduce the selling price. Collet Chucks; Collet System: ER; Collet Series: ER40; Shank Type: Taper Shank; Taper Size: CAT40; Projection (Decimal Inch): 4.0000; Through Coolant (Yes/No): Yes Collet System ER Collet Series ER40 Shank Type Taper Shank Taper Size CAT40 Projection (Decimal Inch) 4.0000 Through Coolant (Yes/No) Yes Minimum Collet Capacity (Decimal Inch) 0.1180 Maximum Collet Capacity (Decimal Inch) 1.1810 Balanced to (RPM) 30000 TIR (Decimal Inch) 0.0002 Coolant Type Through-Spindle & DIN Flange Collet Nut Diameter (Decimal Inch) 2.4800 Retention knob -  Taper Size: CAT40 Thread Size: 5/8-11 Angle Radius (Degree): 45.00 Knob Diameter (Decimal Inch) : 0.5880 Style: C Through Coolant (Yes/No): No Neck Diameter (Decimal Inch): 0.3930 Overall Length (Decimal Inch): 2.3000 Knob to Flange Length (Decimal Inch): 1.2640 Flange Thickness (Decimal Inch): 0.2400
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “In excellent condition.”
