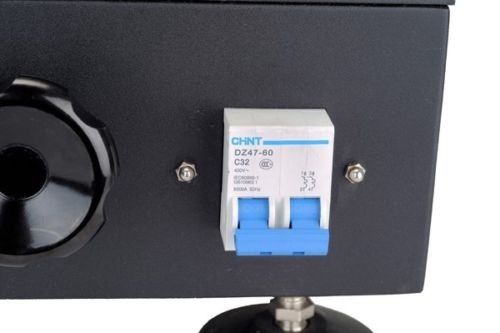

ACHI IR 12000 BGA Rework Station 220V, US $1,697.99 – Picture 7

ACHI IR 12000 BGA Rework Station 220V, US $1,697.99 – Picture 8

ACHI IR 12000 BGA Rework Station 220V, US $1,697.99 – Picture 9

ACHI IR 12000 BGA Rework Station 220V, US $1,697.99 – Picture 10

ACHI IR 12000 BGA Rework Station 220V, US $1,697.99 – Picture 11

Achi Ir 12000 Bga Rework Station 220v

US $1,697.99

Allentown, Pennsylvania, United States
Jan 31st

Open on mobile:
QR code

Authorized reseller, please contact Achi to confirm. Warranty and support provided directly through us. We reply to messages very promptly but if you need immediate assistance you can look me up on skype under David Richiez , chat or voice. Spanish interpreter available (SE HABLA ESPANOL) WE PROVIDE FREE LIVE-PROFILE SET UP ASSISTANCE THROUGH SKYPE WITH THE PURCHASE OF ANY BGA REWORK STATION. CLICK HERE FOR MORE INFO. FOR A TUTORIAL ABOUT BGA REWORK CLICK HERE. Need accessories to go with this unit? We build custom reball packs for your specific needs depending on your area of interest (laptop, game consoles, tablets, mobile repair etc), just ask. To learn more about the different accessories used for BGA rework click here. Please Join the Advanced Reworks forum for help and support. Advanced Reworks Forum This is a 220V equipment. To be able to use it in a 110V line system you'll need a transformer. We can provide the right transformer for this machine, please contact us about it. Main Features as following below: IR+Hot Air (2 in 1) combined BGA machine 3 heating areas: Top IR; Bottom Hot Air +IR Top ceramic heater (Elstein rfs/80-400) imported from Germany Drawer Door with High Definition Color Touch Screen operation panel Adjustable Height of bottom hot air heater is available Packaging & Delivery Packaging Detail: Carton Box Delivery Detail: 2-3 Working Days after Payment Confirmed Specifications: ACHI IR12000 Rework Station 1. Top heater uses ELSTEIN RFS/80 400w Ceramic 2. OMEGA K-type sensor 3. MCGS Touch Screen System ACHI IR12000 is a multi-function semi-automatic infrared soldering system with Embedded Industrial PC, (Drawer design 7” high definition touch screen), and ELSTEIN RFS/80 400W Ceramic(Made in Germany,CE Passed). TECHNICAL SPECIFICATIONS APPLICATION Dark Infrared BGA rework station is suitable for the laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework. It’s also perfect for soldering and reworking of CBGA, CCGA, CSP, QFN, MLF, PGA and all the green epoxy type ?BGA . 1) ACHI IR12000's Top heater uses ELSTEIN RFS/80 400 Ceramic (Made in Germany, CE Passed) - The max temperature could heat up to 750°C. - High quality of the top heater and large top heater area (80*80mm). - Various shield cover and component slots are easier to repair. 2. Embedded Industrial PC with opening drawer door design. - 7” high definition touch screen interface, PLC control, allow instant profile analysis function. -Real time settings and actual temperature profile display can allow to analyze and correct the parameters. 3. Three temperature areas (Top IR Heater, Bottom Hot air Heater and Preheating IR Plates) allow an independent heating. - It also come with multi controls and adjustments to ensure the best integration of various temperature areas. Heating temperature, time, angle, cooling and vacuuming can be set on the interface. 4. There are 6-8 levels of variable and constant temperature controls. 5. An advanced OMEGA K-type thermocouple with the temperature detection being more accurate. 6. It uses high technology of closed loop temperature control and automatic temperature adjustment system with PLC and temperature module to enable precision temperature control of ±2 deg C. An external temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile. 7. Flexible and convenient removable fixture on the PCB board which prevent from damaging to the PCB board. - Various sizes of BGA nozzles are available, which will allow you to adjust 360 degree for the easy installing and replacing purpose. 8. Come with high powered blower to allow faster cooling of PCB board and as well as prevent it from the deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip. Moreover, Voice "early warning" function will action in case. 9. Equipped Emergency Switch and Automatic power to avoid accident in case of an emergency. 10. ACHI IR1200 can be connected to the computer or notebook with USB interface for upgrading software upto date. 11. ACHI IR12000's include 6pcs of rework support jig. There are 6pcs Screw holes for left and right sides and 34pcs screw holes in the front and back sides, which could help fixing the mainboard in any position. SHIPPING Standard Mail 1.All item will be shipped by Airmail post within 2 business days .It takes approximately 12-25days(USA ,CA,AU,UK), other countries 15-35days. 2. The trade is cross-border and Airmail is cheapest post way, so it take a long time for delivery. If you don't want to wait so long time, please pay the Express fee. Express mail We can also ship item by Express mail of EMS, it takes 5-6 workdays for delivery. Please pay for the express mail fee. DHL, UPS, Fedex are available, which is expensive, the fee for the first 500g is 50 usd, please contact us for details. PLEASE NOTE: WE DO NOT REFUND OUR SHIPPING EXPENSES SO PLEASE MAKE SURE YOU BID CAUTIOUSLY. Feel free to contact us with any questions.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Achi
Model	Achi IR12000
