Adjustable 7-35v To 1.25-30v Dc Power Converter Led Driver 5/12v Battery Charger

US $42

Guang Zhou, China
Jan 29th

Open on mobile:
QR code

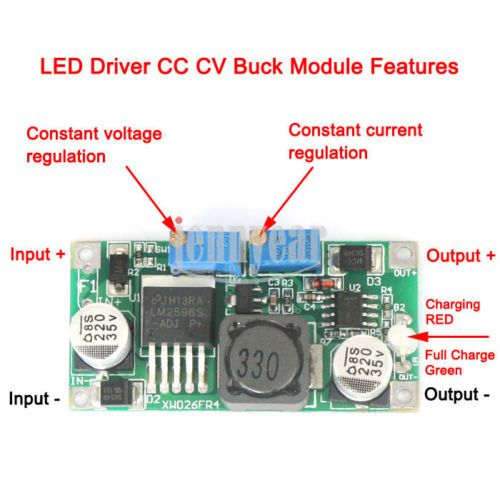

Adjustable Constant Current/Voltage 7-35V to 1.25-30V DC Power Converter LED Driver 5V/12V Battery Charger #090422 Product Description Module parameters: Properties: non-isolated step-down constant current, constant voltage module (CC CV) charging module Scope: High-power constant current LED driver, battery charger (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind turbines Input voltage: 7-35V, Output voltage: 1.25-30V adjustable Output Current: 3A (more than 15W, please install heat sink, this item do not include HEAT SINK) Constant current range :0-3A (adjustable) revolving light current: constant current value * (0.1), such as the constant current value is 3A, revolving light current is set to constant current of 0.1 times (0.1 * 3A = 0.3A), when adjusted constant current value to 2A, then revolving light current is constant current of 0.1 times (0.1 * 2A = 0.2A). this version is 0.1 times fixed Feature: Lowest dropout: 2V Output power: natural cooling 15W, 25W with heat sink Conversion efficiency: 90% (up to 90%, the higher the output voltage, the higher the efficiency) Output ripple: 20M bandwidth (for reference) Input 12V Output 5V 3A 60mV (MAX) Operating Temperature: Industrial (-40 °c to +85 °c) (ambient temperature exceeds 40 °c, lower power use, or to enhance heat dissipation) Full load temperature rise: 45 °c No-load current: Typical 10mA (12V switch 4.2V) Load regulation: ± 1% Voltage regulation: ± 0.5% Constant accuracy and temperature: the actual test, the module temperature changes from 20 °c to 100 °c, less than 1% change constant current value (constant current value 1A) Dynamic response speed: 5% 200uS Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease), potentiometer close to the input is Voltage regulation (CV), potentiometer close to the output is current regulate (CC), Indicator: two-color LED charging indicator light red, fully charged light green (do not connect load light green) Output short circuit protection: Yes, constant current (constant current setting values) Input reverse polarity protection: Yes, Output to prevent reflux: Yes, the output has an internal series a diode to prevent reflux. Connection: Welding, plus pin can be directly soldered to a PCB Battery Charging method: 1. Make sure the recharge battery float voltage and charge current, input voltage of the module. 2. adjust constant voltage regulator, the output voltage about 5V. 3. With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current reaches a predetermined charge current value; 4. Adjust Constant regulator allows Output voltage reaches the float voltage; 5. connected to the battery, try charging. (1,2,3,4 step input connect power, output do not connect battery.) LED constant current driver Usage: 1. Make sure LED current and the maximum operating voltage; 2. adjust constant voltage regulator, the output voltage about 5V. 3. With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current reaches a predetermined LED working current value; 4. Adjust Constant regulator allows Output voltage Reach LED maximum working voltage; 5. Connected to the LED, test. (1,2,3,4 take steps input connect power, output do not connected LED.) Package Includes: 1x DC/DC Buck Converte Module Payment Method We accept only Paypal for both domestic and international. We will ship to the shown address on you PAYPAL Payment notice,Please confirm your shipping address in the PayPal Account. If buyer want to delay the payment because of financial problem, please contact me by the ebay message within 3 days. Shipping Detail Ship by Post Air-mail within 3 working days after full payment is received. The shipment usually takes 15-45 business days to Worldwide. We also provide international Expressed delivery such as EMS, DHL and UPS,extra shipping fees is needed. The shipping time may vary, depends on receiver's location. Feedback Policy We will leave positive feedback to buyer as soon as buyer pays for the item. Leaving Negative feedback or Netural Feedback is never a good way to resolve problem .We hightly appreciate that you can contact with us before you leaving Negative feedback or Neutral feedback .We will offer help to resolve your problems as fast as possible. Customer Service Work Time If you have any questions,Please contact with us via eBay message or our customer service e-mail . please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 – 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Input voltage	7-35V
Full load temperature rise	45 °c
Output voltage	1.25-30V adjustable
No-load current	Typical 10mA (12V switch 4.2V)
Constant current range	0-3A (adjustable)
Load regulation	± 1%
revolving light current	constant current value * (0.1),
Voltage regulation	± 0.5%
Case Color	Silver or Black, will be sent random color
Dynamic response speed	5% 200uS
Dropout voltage	2V
Potentiometer adjustment direction	clockwise (increase), counterclockwise (decrease),
Output power	natural cooling 15W, 25W with heat sink
Input reverse polarity protection	Yes
Output ripple	20M bandwidth (for reference)
