Afl Noyes Ofl 250 Sm Fiber Otdr W/ Vfl & Power Meter Ofl-250

US $2,995.00

Toledo, Ohio, United States
Jun 9th

Open on mobile:
QR code

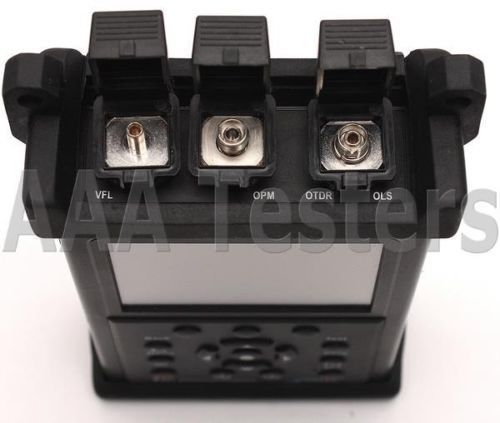

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: AFL Noyes OFL 250 SingleMode OTDR (BC# 21498) SM OTDR Source: 1310nm 1550nm FC Connectors For Sources Power Meter: 1310nm 1490nm 1550nm 1625nm 1650nm VFL OFL 250 Quick Reference Guide (2) SM FC-FC Fiber Cables (2) LC Fiber Connectors SC Fiber Connector 1.25mm Fiber Connector Trace Analysis Software (4) Fiber Wipes Battery Pack AC Adapter/Charger Power Cord USB PC Interface Cable Hard Copy User Manual Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! AFL NOYES OFL 250 SingleMode 1310 / 1550nm OTDR w/ VFL & Power Meter Dynamic Range: 1310 / 1550 nm : 26 / 26 dB Power Meter: - 1310nm - 1490nm - 1550nm - 1625nm - 1650nm Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty OFL250 Handheld, Fault-Locating OTDR The Noyes OFL 250 from Fujikura Europe Ltd is a single-mode OTDR with an integrated Optical Power Meter (OPM), Laser Source (OLS), and Visual Fault Locator (VFL) in a handheld package weighing only 0.8 kg (1.7 lb). With short dead zone and mid-range dynamic range performance, the OFL 250 is ideal for testing optical fibers in service provider metro areas and FTTx networks. The OFL 250 provides automatic and manual setup, precision event analysis, multiple-wavelength testing, a 12-hour battery life, internal data storage, and USB connectivity. OTDR and OPM test ports are equipped with tool-free adapters, which can be changed in seconds. Results are saved as industry standard .SOR files, which can be transferred to a PC for viewing, printing, and analyzing with the Windows® compatible software.. Features: Handheld, 0.8 kg (1.7 lb) Multiple-wavelength single-mode OTDR 1.5 m (typ.) event dead zone 26 dB dynamic range Integrated OPM, OLS, and VFL (650 nm) Tool-free, switchable adapters for OTDR & OPM ports (FC, SC, ST, LC, E2000 are available) Bellcore (GR-196) .SOR file format Rechargeable (> 12 hr) LiIon battery or AC power 3.5-inch, indoor/outdoor LCD Mini USB Port (connect to PC with cable) Applications: Locate cable cuts, open or high-loss splices, fiber bends, and high-loss/high-reflectance connections Measure optical power (OPM port) Short-range fault-location (VFL port) Trace fibers and measure end-to-end loss at 1550 nm (working with a Noyes optical power meter or light source) Identify fibers (working with a Noyes optical fiber identifier) Specifications Emitter Type Laser Safety Class Class 1 FDA 21 CFR 1040.0 & 1040.11 Fiber Type Single-mode Center Wavelengths 1310 / 1550 nm Wavelength Tolerance ± 30 nm Dynamic Range (SNR=1) 26 / 26 dB Event Dead Zone 1 1.5 m Attenuation Dead Zone @ 5ns 2 Typ.6.0 m, max. 6.5 m Pulse Widths 5, 10, 30, 100, 300 ns, 1, 3, 10 ?s Range Settings 250 m to 256 km Data points Up to 16,000 Data Point Spacing 12.5 cm (range < 4 km), Range/16000 (range > 4 km) Group Index of Refraction (GIR) 1.4000 to 1.6000 Distance Uncertainty (m) ± (1 + 0.005% x distance + data point spacing) Trace File Format Bellcore GR-196 V.1.1 Trace File Storage Medium Internal memory (>1000 traces) Data Transfer to PC USB cable OTDR Modes Full Auto, End Locate, Expert, Live Optical Power Meter Specificatios Calibrated Wavelengths 1310, 1490, 1550, 1625 nm Detector Type InGaAs Measurement range +23 to - 45 dBm Tone detect range +3 to -40 dBm Wavelength ID range +3 to -40 dBm Accuracy (dB) ± 0.25 dB Resolution (dB) 0.01 dB Measurement units dB, dBm, mW, nW Optical Light Source Specificatios Emitter Type Laser, Class 1 (FDA 21 CFR 1040.10 and 1040.11, and IEC 60825-1) Fiber Type Single-mode Center Wavelengths 1310, 1550 nm Wavelength Tolerance ± 20 nm Spectral Width (FWHM) 2 nm (max) Internal Modulation 1 kHz, 2 kHz Wavelength ID Compatible with Noyes Optical Power Meters &Light Sources Output Power Stability < ± 0.25 dB after 15 min Output Power – 3 dBm Visual Fault Locator Specifications Emitter type Laser Safety Class Class 1 (FDA 21 CFR 1040.10 and 1040.11, IEC60825-1:1994, IEC 825-1:1993 ) Wavelength 650 nm Output Power (nominal) 0.8 mW into SMF-28 General Size (in boot) 190 x 112 x 47 mm (7.5 x 4.4 x 1.9 inches) Weight 0.8 kg (1.7 lb) Operational Temperature -10 to +50°C, 0 to 95% RH (non-condensing) Storage Temperature -20 to +60°C, 0 to 95% RH (non-condensing) Power Rechargeable LiIon or AC adapter Battery life (backlight ON in OTDR mode) > 12 hours Display LCD, 320 x 240, 3.5 inch (89 mm) , color, transflective OTDR and OPM ports Switchable. See website or contact AFL for available adapter types. Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Powers Your Online Marketplace Reach your goals with Kyozou eBay Selling Tools

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Noyes
MPN	OFL 250
Model	OFL 250
Manufacturer	AFL NOYES
