Agilent Gs-9200 Multi-carrier Power Amplifier Test System Parts Cables Manuals

US $2,499.99

Philadelphia, Pennsylvania, United States
Jan 29th

Open on mobile:
QR code

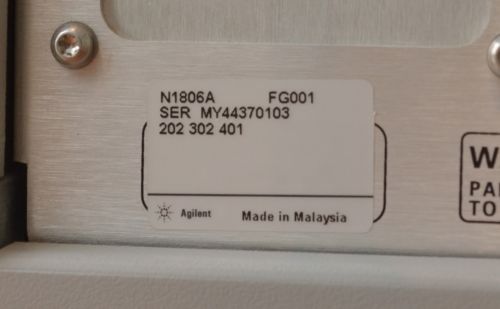

Agilent GS-9200 Multi-Carrier Power Amplifier Test System Parts. Includes System Test Set, N1806A Precision System Interface (PSI), a number of SMA and N coaxial cables, data and power cables, manuals, and software. These parts came from a GS-9200 test system, but there are a number of important components missing (spectrum analyzer, computer, power supply, rack, etc.). The GS-9200 was a $300k+ system used to test and tune multi-carrier power amplifiers. It was designed to be adaptable to various protocols. Includes GS-9200 application software and software entitlement certificate. This software is not tested and is not guaranteed to be functional. It is meant to run on Windows 2000. More information from Agilent can be found here: http://cp.literature.agilent.com/litweb/pdf/5988-6487EN.pdf Condition: Not a complete GS-9200 MCPA test system. You will receive what is shown in the photos. Parts are in good cosmetic condition, but are untested. International bidders: Please contact me for a shipping quote before purchasing. This is a large, heavy lot. Please email with any questions! Additional Information about the GS-9200 MCPA Test System The extensive integration of the Agilent GS-9200 MCPA test system's application-specific hardware and software reduces test development and deployment time by more than 30 percent when compared to test systems built from components. The GS-9200 also can be tailored for individual testing needs and reconfigured to meet future requirements to extend the lifetime of test assets within R&D and manufacturing. The GS-9200 currently supports W-CMDA and cdma2000 formats. Its modular design can be readily adapted to handle emerging radio formats such as cdmaOne and GSM/EDGE. The platform also handles calibrated MCPA measurements, such as MCPA feed-forward testing with automatic measurements and pre-distortion analysis. "Base station manufacturers typically build unique MCPA test platforms for specific test scenarios and then scrap the platforms when requirements change," said Neil Martin, base station test business manager for Agilent's System Generation and Delivery Unit. "Now manufacturers can get a test platform that's already integrated, and receive delivery in the time it used to take just to get components. In today's business environment, customers need an integrated platform that reduces the cost of test and can be reconfigured for extended use." Because tuning a test platform involves many interactive adjustments and measurements, the GS-9200 features a unique display for tuning progression and interaction between tuning parameters. Multiple parameters are displayed in real-time on one screen, helping customers significantly reduce the tuning time for MCPA feed-forward designs. With its integrated features and modular design, the GS-9200 gives customers the ability to complete accurate, repeatable measurements across different devices, test systems and locations. Test developers also can more quickly create test plans using automatic measurements available in the GS-9200 system measurement library. The GS-9200's software combines multiple instrument functions and tests with test-system signal routing to perform the following integrated MCPA measurements:-- average power, power-added efficiency (PAE), gain; -- S-parameter measurements, including high power S22 parameter; -- adjacent-channel leakage ratio (ACLR) for W-CDMA; -- adjacent-channel power ratio (ACPR) for cdma2000; -- AM-AM and AM-PM for modulated-signals; and -- complex stimulus-response measurements (under modulated conditions for pre-distortion MCPA designs), including inter-modulation distortion (IMD), spurious, harmonics, code-domain power (CDP) and error-vector magnitude (EVM).

Condition	For parts or not working : An item that does not function as intended and is not fully operational. This includes items that are defective in ways that render them difficult to use, items that require service or repair, or items missing essential components. See the seller’s listing for full details.
Seller Notes	“System is not complete and is untested.”
