Agilent/hp 54510b Realtime 1 Gsa/s Digital Oscilloscope W Fft Nice Cal'd

US $455.00

Loveland, Colorado, United States
Jan 29th

Open on mobile:
QR code

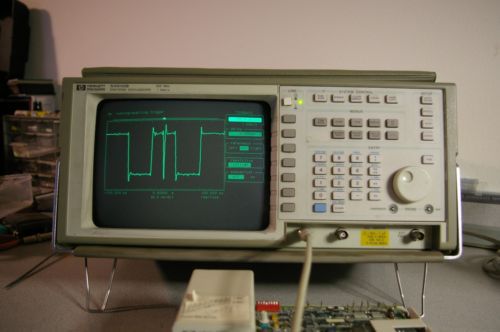

General Description/Specs… =================================== This is a HP 54510B 300 MHz real-time Oscilloscope. I have refurbished this unit. It has been cleaned up both inside and out. I calibrated and tested the unit. It passes all self-tests. What you see in the pictures is what you get (Not the test board). I have shown many of the main menus in the pictures. Study them to learn functionality. Two channels of 300 MHz repetitive bandwidth. · Math functions include FFT. · Real time single shot bandwidth is 250 MHz. · Complex triggering! Capture simultaneously on 2 channels. You can Pattern Trigger EXT on a glitch and see 2 channels of what caused it! · Real time clock and sequential capture with time tag. This feature allows you to capture a sequence of waveforms into 8K of memory. These waveforms can be triggered by any trig event. You could trigger with an external pacer and capture many waveforms over a period of time. See your circuit power up or drift over time. (Think of high speed time lapse photography) · 1GSa/s A/D digitizer sample rate (1GSa/s single shot) · 8K memory depth (capture events negative in time from your trigger) · Auto-scale (automatically find a signal and do the setup on it) · Front Panel Automatic measurements (Volts, Pulse, Timing, cursors) · Complex trigger… pattern HLX, delay time, >, <, etc · Hardcopy to HPIB printer (firmware is built in to HPIB printer) · Fully programmable (HPOL oscilloscope language via HPIB) The 54510B Digitizing Oscilloscope is a general purpose repetitive and real time oscilloscope. The 54510B is fully programmable and transportable. It has programmability, powerful triggering, easy waveform storage, automatic measurements, and instant hardcopy output via the HPIB port. Any of the older HP printers or plotters with HP-IB interfaces can be connected as a hardcopy device. In the repetitive mode, it can construct a waveform from repeated acquisitions with sample placement precise to 10 psec relative to the analog trigger. Therefore timing measurement accuracy between two channels can be made accurate to 10 psec. In the real time mode, Two complete waveform can be captured with a single trigger event such as a narrow noise glitch. It has a one nsec sample interval. It is great for finding rare glitches. Complex trigger events can be defined such as; “edge”, “Pattern”, “State”, “Delay”, or “TV”. Electronic condition: Fully reconditioned. It passes all self-test and is calibrated. Cosmetic condition… This is a very clean unit. Both the front panel and chassis look good. See the pictures. The Display is crisp and clear with very slight pattern burn in. Shipping and Handling… I will add shipping to your invoice based on location. I charge only for the actual shipping cost. I ship UPS ground if in the USA. International shipping (some countries are NOT possible) Contact me for shipping cost. If international, I ship USPS express mail. On heavy items I would prefer to ship to you on your DHL account. If not your DHL account, I can ship USPS express mail international but only if the item conforms to size limitations set by your countries’ customs. (Example… Germany has a limit of 108 inches of girth + length). Some countries have the limit at 96 inches. Warranty… Contact me for fair resolution on any problem. Thanks for looking. Feel free to contact me with questions. About Watronics… I am a retired (35Year) HP/Agilent Oscilloscope design engineer. I buy HP/Agilent scopes on EBAY that are in need of repair. If they are listed as; “parts only”, “Condition unknown”, or “as is”, I bid. I then recondition them such that they pass all self-test and pass calibration. Of course not all units can be repaired. I disassemble these units for parts. Agilent has classified many of these units as obsolete and parts are not available from Agilent. I have accumulated many of the obsolete parts and many are listed in my store “watronics92” I will run the auto self cal on any unit I sell, but I do not have an ISO certified lab. Any unit I sell will pass calibration at an ISO calibration lab.

Condition	Seller refurbished : An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details.
Seller Notes	“See the Pictures of actual unit NO BURN crt”
