Agilent/hp 54540a 2 Gsa/s 500 Mhz 4 Ch Digital Oscilloscope Floppy 500 Mhz

US $425.00

San Jose, California, United States
Jan 29th

Open on mobile:
QR code

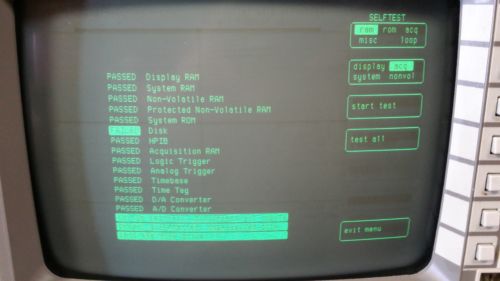

Agilent / HP 54540A 2 GSa/s 500 MHz 4 ch Digital Oscilloscope Floppy 500 MHz Note: 2 GSa/s if using one channel only. In great condition other than the screen having some noticeable burn-in (This is typical for the 54540A) It is barely noticeable when turned on though, so please keep this in mind before making the purchase. Other than that aesthetic issue, the unit is in great condition and passes all self-tests (except disk, since I don't have a floppy disk inserted during the test) as can be seen in the pictures. 30 days warranty and power cable included with each purchase. This 2 GSa/s, 500 MHz, 4 channel scope is in very good condition. I have replaced the Lithium battery. I have calibrated the unit. It passes all self-tests. I have completely tested the front end attenuator preamps and they are all working to specs. Picture is of actual unit. You get what you see (NOT the test board).One 500 MHz 10:1 probe without accessories is included. Study the pictures to learn more about functionality. I have shown many of the main menus. Description The Agilent 54540A 500 MHz real-time oscilloscopes have the extra performance and features that you need to get an accurate view of the high frequency signals you encounter, whether you do analog or digital design, R&D or manufacturing test. With 32 K memory per channel, 4 channels, sample rate up to 1 GSa/s, 1 ns peak detect, and sophisticated triggering, you can be confident that you will not miss critical signal activity. These feature rich digitizing scopes also include standard FFT, floppy disk drive, and sequential single shot acquisition for better analysis and characterization of your signals. 500 MHz Analog Bandwidth on 4 channels. Hardcopy through floppy to PC. · Up to 1 GSa/s Sample Rate with 2 channels on, 500 MSa/s4 channels on · 1 ns Peak Detect · 32 K of acquisition memory per channel · Sequential single shot acquisition for capturing successive events. (Think of high speed photography) · Built-in, multi-format 3.5 inch disk drive (Hard copy to DOS disk then to your PC) Resolution 8 bits, 10 bits via HP-IB with averaging Repetitive Bandwidth 500 MHz (equivalent time) (rise time <= 700 ps) Sensitivity 1 mV/div to 5 V/div dc Gain Accuracy ± 1.25% of full scale Input Impedance R: 1 Mohm ± 1% or 50 ohm ± l% C: 7 pF nominal Input Coupling ac, dc Maximum Input 1 Mohm ± 250 V (dc + ac) [ac< l0 kHz] 50 ohms: 5 V rms The item is used unless otherwise noted. Actual Images of item are shown above. Returns accepted within 14 days of receiving the item unless otherwise noted. 60 days non DOA warranty unless otherwise noted. PayPal and Credit Card is Accepted. Provide contact info if you would like a payment request. Shipping cost is for within the 48 Contiguous States ONLY. Alaska, Hawaii, Puerto Rico etc. and all international buyers, please contact for a shipping quote first. Items will be Shipped by UPS Ground on the same or next business day of receiving full payment. USPS will be used for shipments made outside of the U.S. Request if you would like me to ship using your UPS or Fedex account and I will waive the shipping costs. Contact information: QC-COMPUTER 695 Quinn Ave San Jose, CA, 95112 Mobile: 510-786-7824

Condition

Used :

An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

Seller Notes

“In great condition other than the screen having some noticeable burn-in. It is barely noticeable when turned on though, so please keep this in mind before making the purchase. Other than that aesthetic issue, the unit is in great condition and passes all self-tests (except disk, since I don't have a floppy disk inserted during the test) as can be seen in the pictures. 30 days warranty and power cable included with each purchase.”
